UV Radiation Light Accelerated Weathering Aging Test Machine Chamber Price
- 1000 per Month
- T/T Credit Card
You May Like
-
Customized 500 Degree High Temperature Industrial Oven For Lab Drying Oven
-
Industrial Electric Convection Hot Air Drying Oven
-
ASTM E145,DIN12880 standard Hot Air Drying Industrial Aging Oven
-
500 Degrees High Temperature Large Size Industrial Composite Electric Oven
-
KEJIAN High Temperature and Humidity Aging Chamber
-
KJ-9029 Accelerated Aging Test Chamber UV Tester for Non-metallic Materials
Product Description

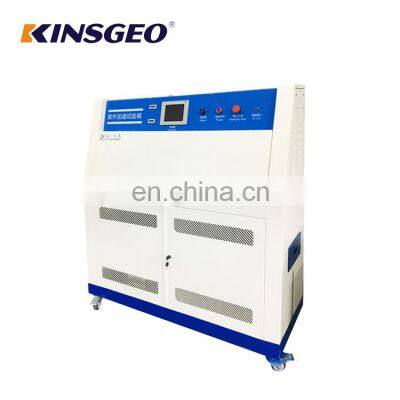

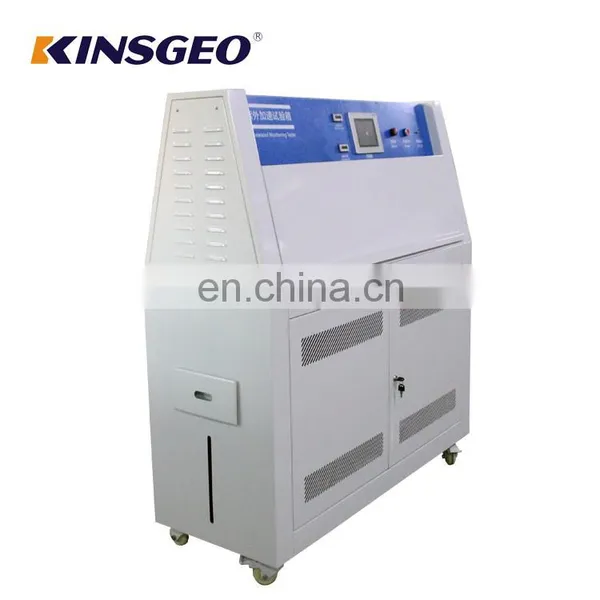

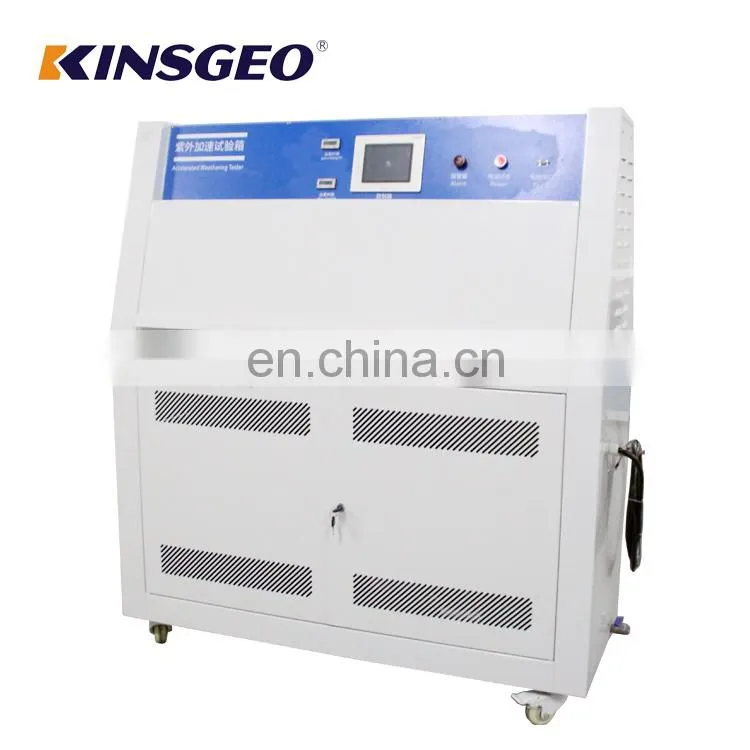

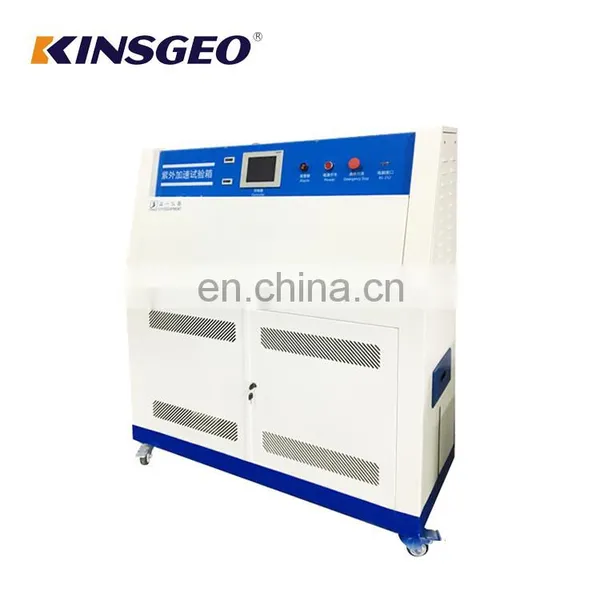

UV Radiation Light Accelerated Weathering Aging Test Machine Chamber Price
Ⅰ.Product Applications:
UV accelerated weathering test chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.
Corresponding standard:
ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020
Model |
KJ-2029 |
|
Test chamber size(L×W×H)MM |
1170×450×500 |
|
Outside dimension(L×W×H)MM |
1350×540×1480 |
|
Chamber materials |

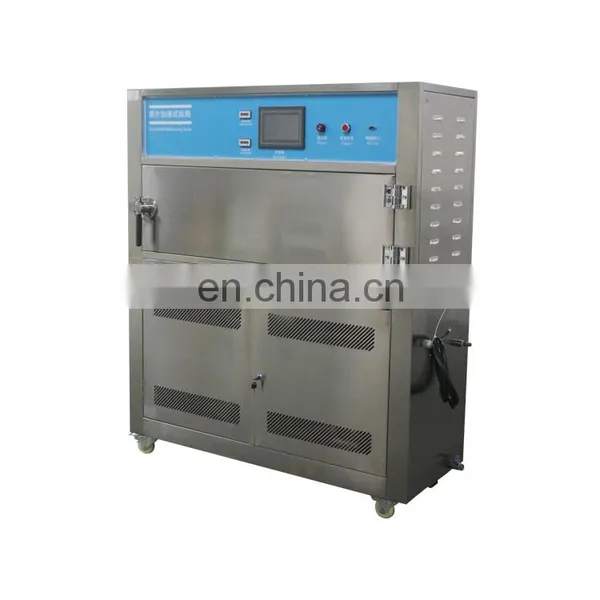

304# stainless steel |
|
Temperature range |
RT+20℃~70℃ |
|
Temperature uniformity: |
±1℃ |
|
Temperature fluctuation: |
±0.5℃ |
|
Temperature control |
PID SSR control |
|
Humidity range |
≥90%RH |
|

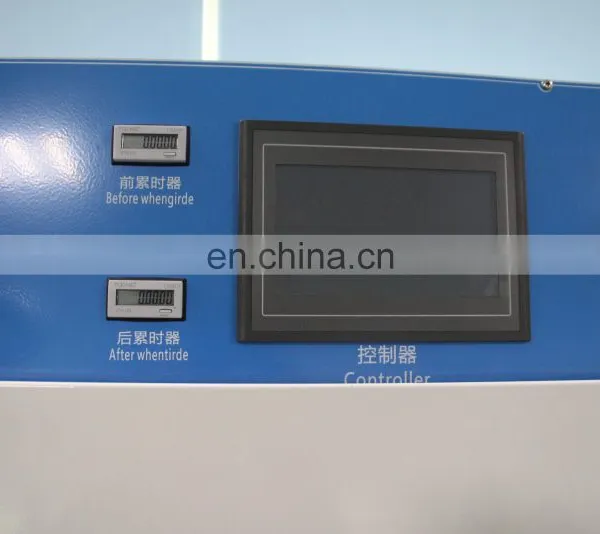

Controller |

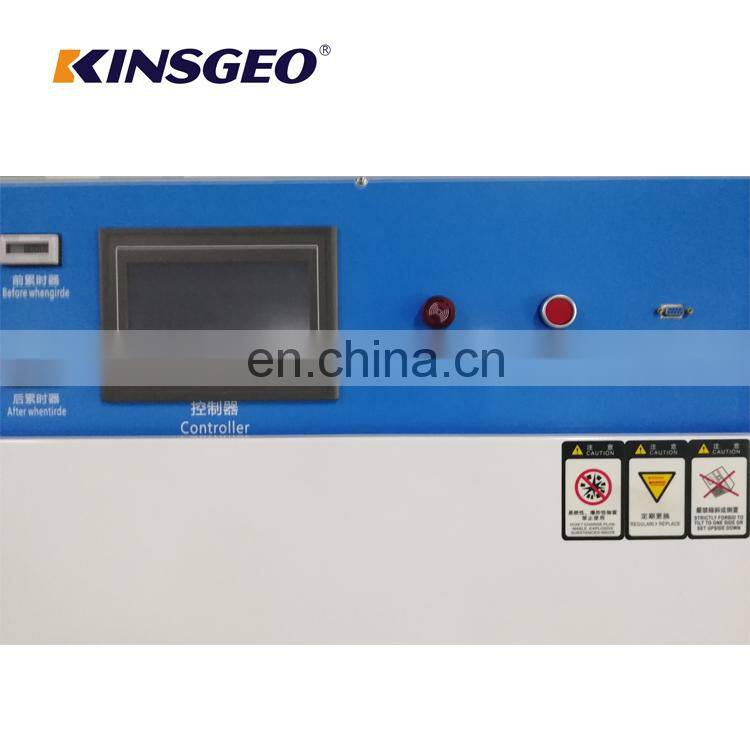

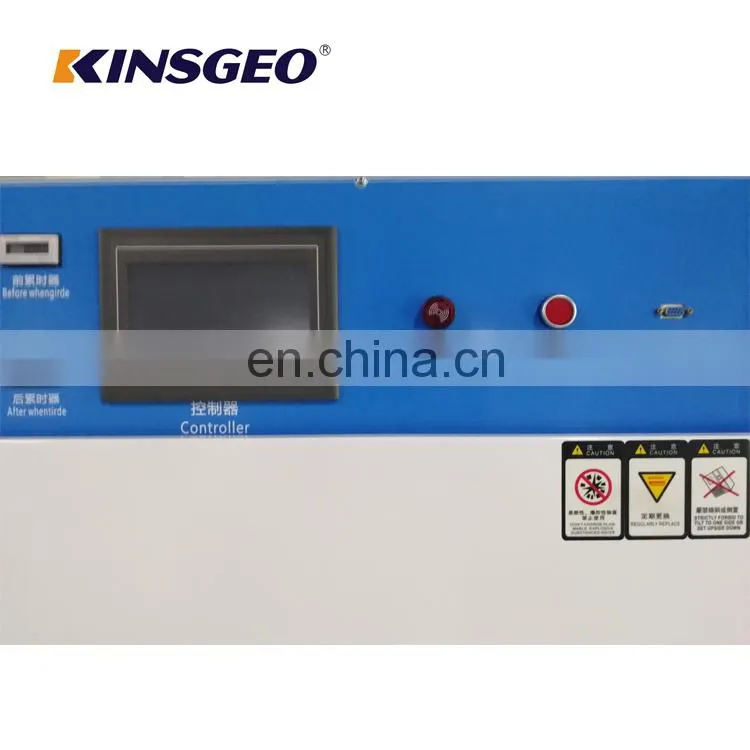

TEMI 880 programmable controller, touch screen, LCD display |
|
Control mode |
Balance temperature humidity control (BTHC) |
|
Communication function |
Be able to control the machine via computer using TEMI control software through RS-232 port on the machine |
|
Test cycle setting |
Illumination, condensation and water spray test cycle is programmable |
|
Distance from specimen to lamp |
50±3mm (adjustable) |
|
Center distance between the lamps |
70mm |
|
Lamp power & length |
40W/Piece, 1200mm/Piece |
|
Lamps amount |
8 pieces of UVA-340 or UVB-313 imported lamps |
|
Lifetime of lamp |
1600Hours |
|
Irradiance |
1.0W/m2, adjustable directly on TEMI 880 touch screen controller |
|
Wavelength of ultraviolet light |
UVA is 315-400nm and UVB 280-315nm |
|
Effective irradiation area |
900×210mm |
|
Irradiation black panel temperature |
50℃~70℃ |
|
Standard specimen size |
75×290mm/24 pieces |
|
Water depth for water channel |
25mm, automatically control |
|
Water consumption |
8L/day, tap water or distilled water |
|
Testing time |
0~999H, adjustable |
|
Power |
1 phase, 220V/50Hz /±10% 5KW |
|
Protection |
Overload short circuit protection, over temperature protection, water lacking protection |
Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
In line with the trend of market globalization, Kejian Instruments registered its wholly-owned subsidiary - Kejian Industrial Hong Kong Limited in 2009, and began to explore the international market and provide Kejian instruments products to overseas customers. So far, Kejian instruments has provided high-quality products and services to customers in more than 50 countries and regions around the world, many of which have become long-term partners because of their recognition and trust in Kejian instruments.
Based on the recognition of Kejian Instruments, The National Standards Drafting Committee invited us to participated in the drafting and revision of a number of national standards, and was invited to attend the adhesive industry summit forum for many times, sparing no effort to contribute to the development of national and industrial technologies.
Fumigated Heat Treating Wooden Package
Ship from Shenzhen Seaport or Shenzhen/Guangzhou/Hongkong by Air
KeJian Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
