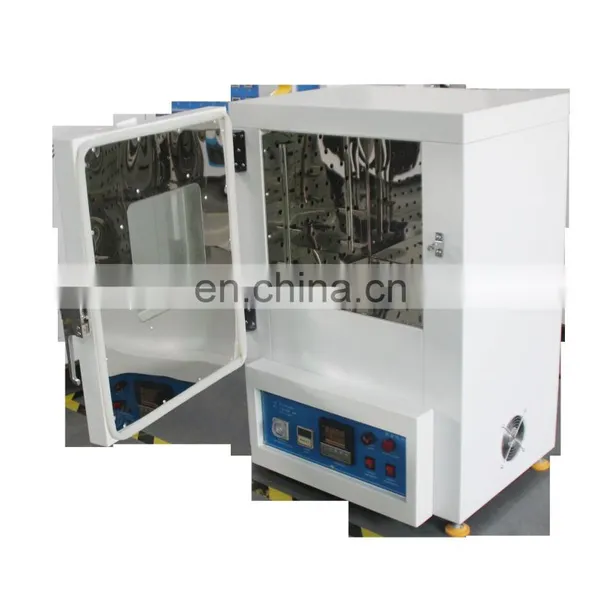

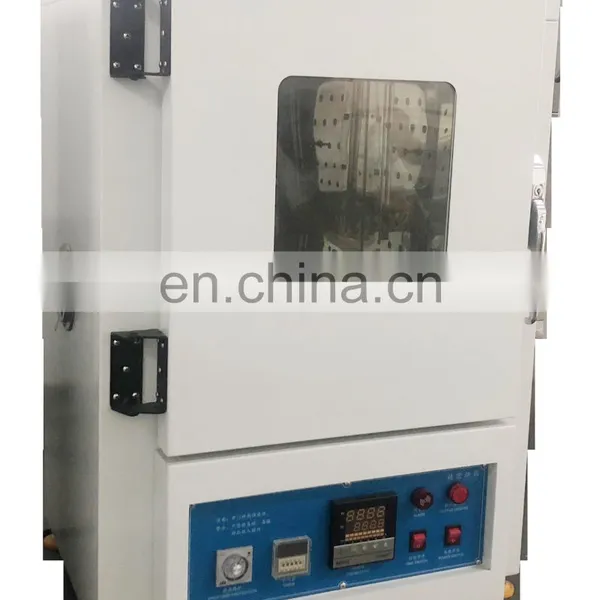

Hot Air Industrial Plastic Oven Laboratory Oven
Inner size and structure
Inner size: 1500×1000×800mm(W×D×H)
Outside size: 110*75*186cm (W×D×H)
Power:380V heating power:about 9KW
1.The controller is located in the right side of the machine,opened in the centre with two doors, luxury handle is stainless steel,more important,the machine has the anti-explosion door holder.
2.Inner material is 304 mirror surface stainless steel. Lumen of the machine is clean and smooth,it’s easy to clean and do not keep residue, corrosion resistance function is very good.All the inner material is low- infectant material.Inner machine all has the non-trace argon arc welding
3.Outside material is SECC armor plate,thickness of plating is 1.2mm baking finish with Fine powder.
Heat preservation is imported high density glass rock wool, thermal insulation is very good,can resist the 150℃.

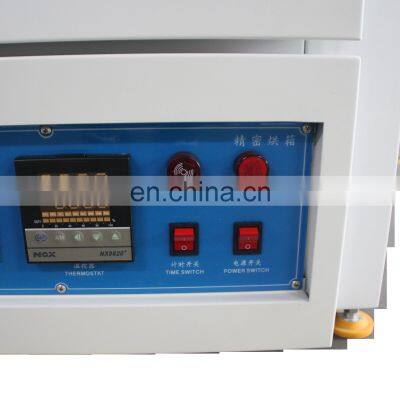

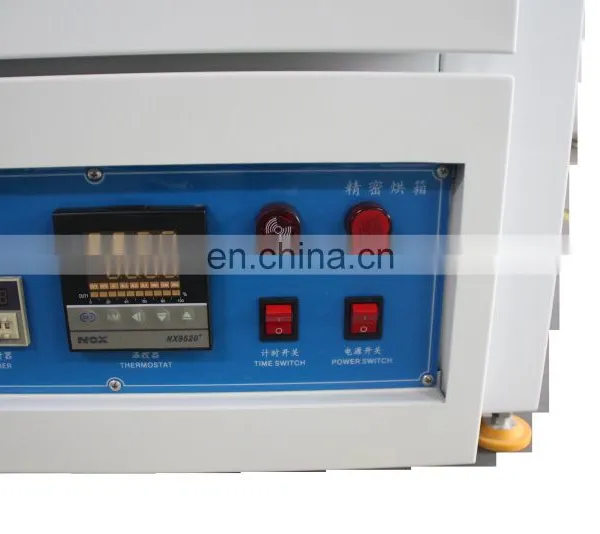

Temperature control system
1.Temperature controller is PID microcomputer auto-calculation,showing by PV/SV,Set the temperature you need,control the accuracy by PID parameter.
2.current controller is SSR,contactlessRelay,keep the voltaic high stability.
3.Heating material is honeycomb stainless steel heating tube,and pollution-free with long using life. 4.Temperature range:RT~500℃,normal temperature RT~450℃.
5.Accuracy:contral accuracy±0.5℃,distribution temperature ±2.0℃(no-load)
Air supply system
Moter long axis thermostability is imported from Taiwan,rate of work is 1/2HP50Hz
The fan is leafiness turbine type,strong strength,has adjustable river diversion wind-plate.Make the wind
path smoothly..
Heating speed:RT~100℃ about 10minutes.
Accessories
superhigh temperature protection, non fuse-switch switch, porcelain fuse,motor overcurrent protection
Timer: 9999s~9999hour(can set by H.M.S)
Timer when the temperature is ok,outage when the time is ok,stop heating and alarm.
Product accessories:
|
1 |
heat preservation |
Import high density aluminium silicate cellucotton 80K |
|
2 |
Foot cup |
10*40 |
|
3 |
air exhaust shell |
stainless steel #120 |
|
4 |
Dustproof door |
thermostability |
|
5 |
faceplate |
AtypeB type |
|
6 |
thermal fuse |
Import nichrome |
|
7 |
Temperature sense line |
2M |
|
8 |
motor |
150FL-7 Taiwan Tonghe |
|
9 |
wind wheel |
6"B direction |
|
10 |
thermoregulator |
96*96 6831 Taiwan Yangming |
|
11 |
Super-high temperature protection |
ESL2 400℃ Japan Omron |
|
12 |
Solid State Relay(SSR) |
40A Taiwan Yangming |
|
13 |
A.C contactor |
1810 Changhong |
|
14 |
Thermal protection |
2.5A-4.2A |
|
15 |
Timer |
Japan Omron |
Fumigated Heat Treating Wooden Package
Ship from Shenzhen Seaport or Shenzhen/Guangzhou/Hongkong by Air
KeJian Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
In line with the trend of market globalization, Kejian Instruments registered its wholly-owned subsidiary - Kejian Industrial Hong Kong Limited in 2009, and began to explore the international market and provide Kejian instruments products to overseas customers. So far, Kejian instruments has provided high-quality products and services to customers in more than 50 countries and regions around the world, many of which have become long-term partners because of their recognition and trust in Kejian instruments.
Based on the recognition of Kejian Instruments, The National Standards Drafting Committee invited us to participated in the drafting and revision of a number of national standards, and was invited to attend the adhesive industry summit forum for many times, sparing no effort to contribute to the development of national and industrial technologies.
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
