Liyi Micro Tensile Tester Pvc Pipe Spring Compression And Test Device Strength Steel 200ton Universal Testing Machine

Name: Liyi Micro Tensile Tester Pvc Pipe Spring Compression And Test Device Strength Steel 200ton Universal Testing Machine
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

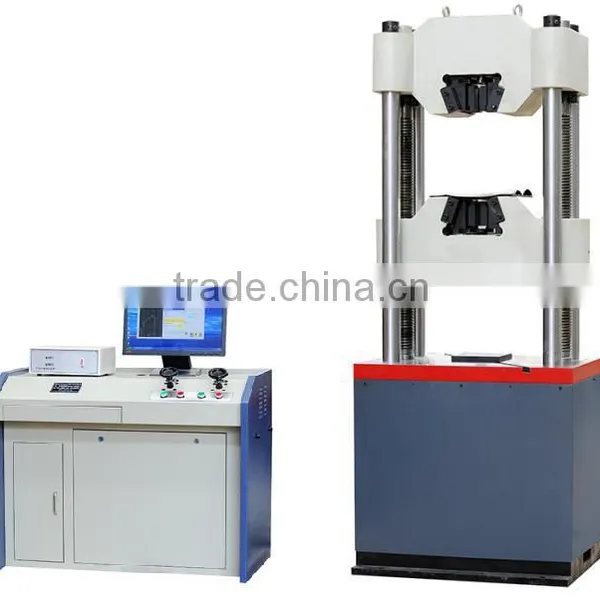

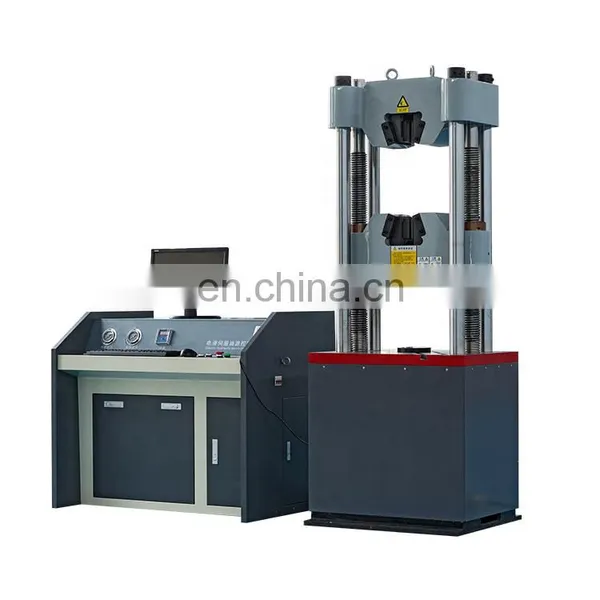

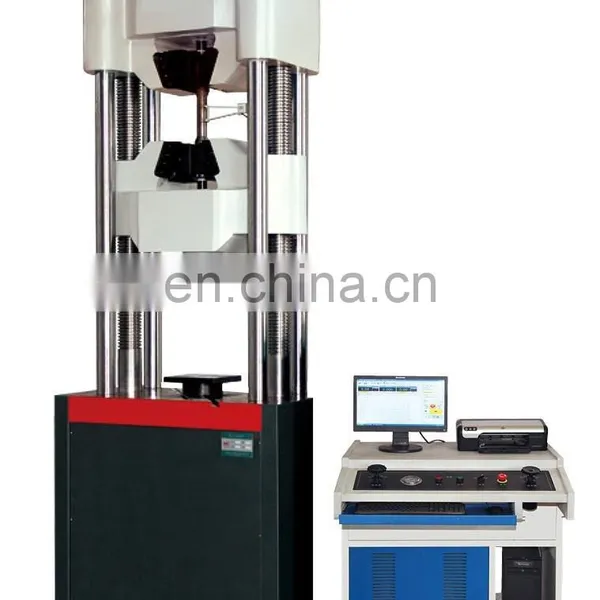

Liyi Micro Tensile Tester Pvc Pipe Spring Compression And Test Device Strength Steel 200ton Universal Testing Machine

Product Description

1. Liyi hydraulic universal testing machine is mainly used to execute the tension, compression, bending, shearing etc. Test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.

2. The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower cross head and working table. The lower cross head is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
3. Liyi hydraulic universal testing machine adopts Load cell measure load, use computer control & display load.

Specifications

Model	LYH-300D	LYH-600D	LYH-1000D	LYH-2000D
Max load(kN)	300	600	1000	2000
Test range	6KN-300kN	12KN-600kN	20KN-1000kN	40KN-2000kN
Test force accuracy	±1%
Displacement resolution	0.01mm
Deformation test accuracy	±0.5%
Constant force/ displacement controlling accuracy	SV<10%FS, less than ±1.0% of SV SV≥10%FS, less than ±0.5% of SV
Deformation rate control accuracy	Rate <0.05%FS, less than ±2.0% of SV Rate ≥0.05%FS, less than ±0.5% of SV
Max drawing space	800mm	800mm	850mm	800mm
Max compressing space	700mm	700mm	700mm	700mm
Flat sample clamp thickness	0-15mm	0-15mm	0-40mm	0-60mm
Round sample clamp diameter	φ6-φ26mm	φ13-φ40mm	φ13-φ60mm	φ13-φ70mm
Bending test branch space	450 mm
Branch width	140mm
Branch diameter	30mm
Piston Stroke	250mm
Clamp method	Built-in Hydraulic clamp
Outer demension(mm)	990×600×2435	990×600×2453	1100×770×2490	1160×1100× 2600
Oil	1100×700×950mm
Complete weight	2800kg	3000kg	4700kg	6500kg

Product Effects

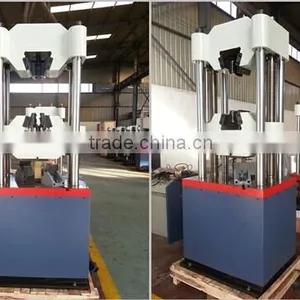

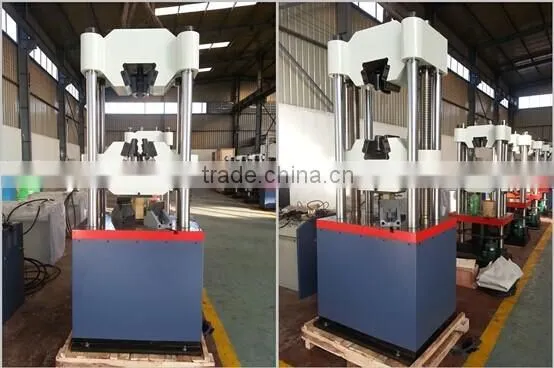

Liyi Micro Tensile Tester Pvc Pipe Spring Compression And Test Device Strength Steel 200ton Universal Testing Machine

More Options

Q: Are your company a trading one or a factory ?

A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.

Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: How to install and use the product?

A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms:	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency:	USD, EUR, HKD, CNY
Accepted Payment Type:	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port:	Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
