Liyi Price Of 1600 Degree Laboratory High Temperature Muffle Furnace

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

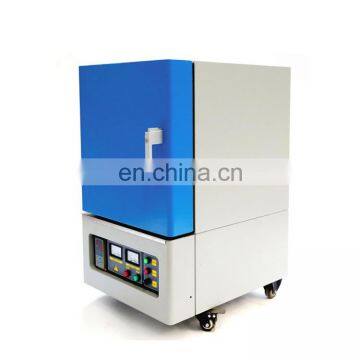

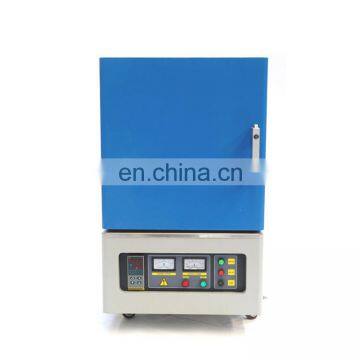

Liyi Price Of 1600 Degree Laboratory High Temperature Muffle Furnace

Product Description

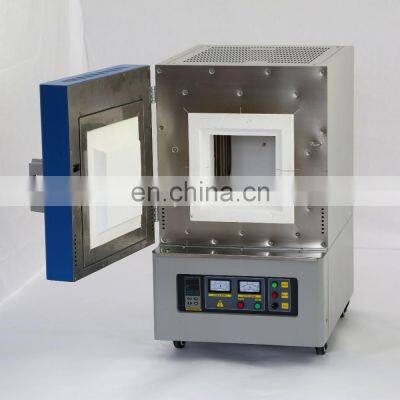

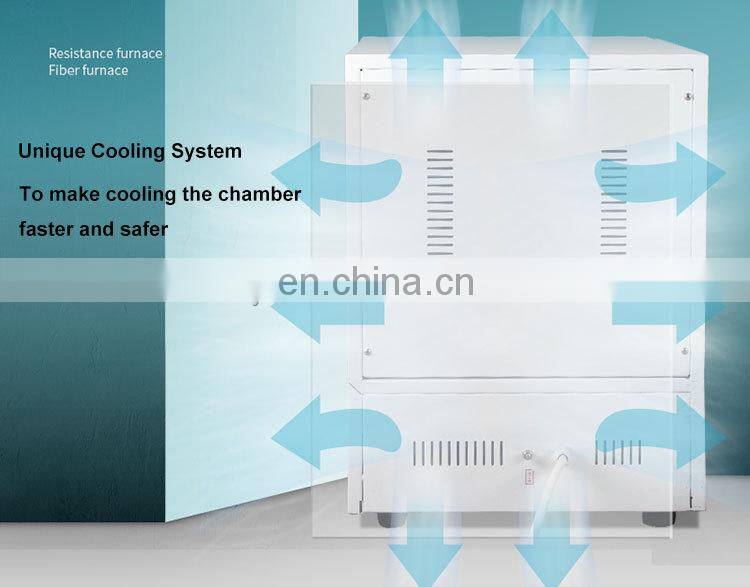

The High Temperature Muffle Furnace chamber is adopted the 1700 type imported polycrystalline alumina fiber. Equipped with intelligent cooling System between the dual shell, when the surface temperature reach to 50℃, the cooling fun will be start working automatically, so it can ensure the surface temperature is low; Using constant current soft-start control, to extend the life of heating elements.

Main uses:

Universities, research institutes, industrial and mining enterprises to do the powder sintering , sintering of ceramics, high temperature experiments, material handling, quality inspection purposes.

Specifications

Model	LY-1700C		LY-1700C
Power supply	AC220V 50/60HZ	AC220V 50/60HZ	AC380V 50/60HZ
Furnace chamber (D x W x H)	160150150mm	300250200mm	400300300mm (Customizable)
Overall size	620620900mm	6206801050mm	6407601600mm
Rated power	4KW	6KW	14KW
Weight	130kg	150kg	400kg

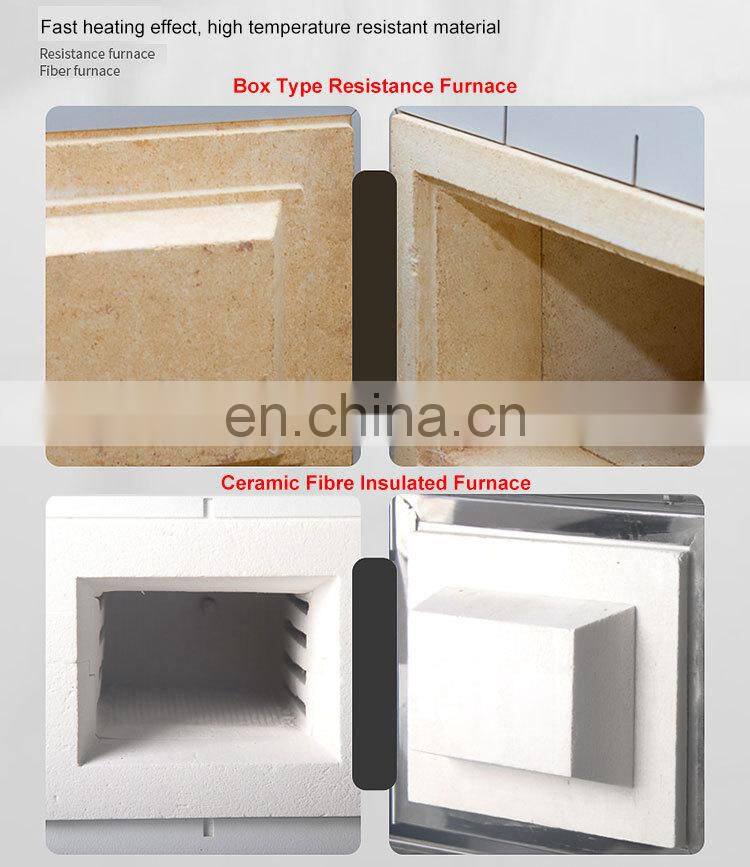

Furnace chamber	1700 type imported alumina polycrystalline fibers furnace chamber, scientific design and with durable, good insulation properties.

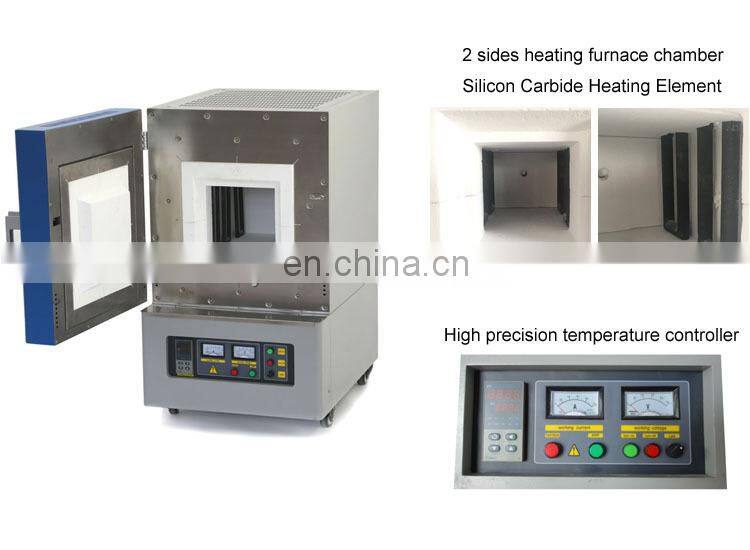

Heating elements	High quality silicon molybdenum rod
Thermocouple	B-type double platinum rhodium thermocouple
Temperature control mode	The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 segment heating and cooling program.
Continuous working temperature	≤1600℃
Maximum temperature	1650℃
Recommended heating rate	10℃/min
Temperature control accuracy	±1℃

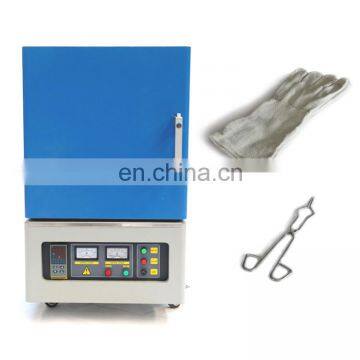

Standard accessories	Door brick 1 piece Crucible tongs 1 piece
Optional accessories	Furnace hobs, a variety of corundum crucible, oven glove, computer control software and paperless recorder, etc.

Product Effects

Q: Are your company a trading one or a factory ?

A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.

Q: How to choose the most suitable products?

A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

Q: What's the delivery term?

A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: How to install and use the product?

A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency	USD, EUR, HKD, CNY
Accepted Payment Type	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port	Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
