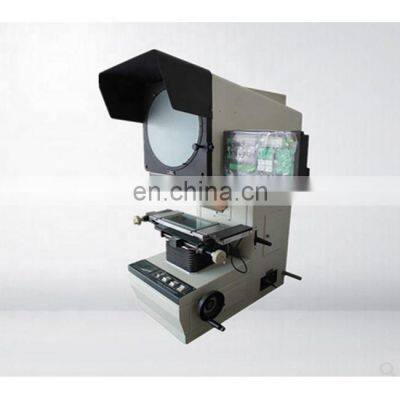

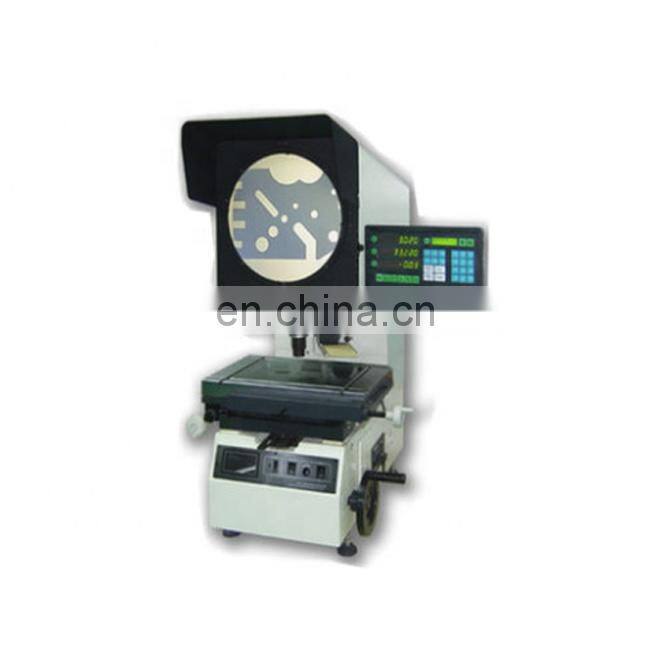

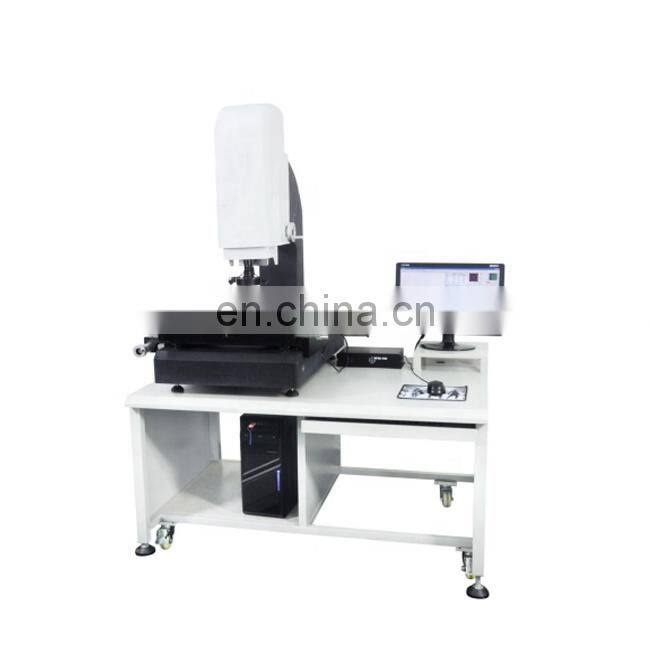

Profile Measuring Machine/Digital Profile Projector Optical Measure Machine
This profile projector is a set of optical, mechanical, electrical, computer integration, high precision optical measuring instruments. It can efficiently detect a variety of complex shape the contours of the work piece size and surface status, such as templates, punching pieces, cams, threads, gears, form cutter and other tools, cutting tools and parts.
Applicable Industry:
This profile projector is widely used in machinery, molds, tools, instruments, electronics, light industry, measuring rooms and workshops are essential for a kind of test measurement equipment.
Usage:
1. Good Quality Multi-function Profile Projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2. It can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
3. It's widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inspecting department.
4. Measurement data can output and connect printer and computer.
|
Model |
W-3015 |
||||
|
Table |
The metal table’s size |
340 x152 mm |
|||
|
The glass table’s size |
196x96 mm |
||||
|
X-axis travel |
150mm |
||||
|
Y-axis travel |
50mm |
||||
|
Z-axis travel |
90 (for focus) |
||||
|
X, Z-axis digital display resolution , ≤ (3 + L/200) μm |
0.0005mm |
||||
|
coordinate indication error |
(3 + L/50) μm |
||||
|
Projector screen |
Screen size (mm) |
Ø 312 Used range>Ø 300(with the meter line) |
|||
|
Screen rotary rang |
0°~360° |
||||
|
Rotation digital resolution |
1′or 0.01° |
||||
|
Lens |
Magnification |
10 X (Option) |
20X (Option) |
50X (Option) |
100X (Option) |
|
Working distance(mm) |
77.7 |
44.3 |
38.4 |
25.3 |
|
|
Field of view in object(mm) |
Φ30 |
15 |
Φ6 |
Φ3 |
|
|
piece height(mm) |
80 |
80 |
80 |
80 |
|
|
Data Processing System |
DC-3000 multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance. |
||||
|
Size |
(L×W×H) 770×550 × 1100 |
||||
|
Weight |
130kg |
||||
|
Options |
Micro-printer, optical Edge Detector, M2D software; detailed description see Annex projector. |
||||
|
Power |
110V-240V(AC), 50/60HZ, Total power=400W |
||||
1.After an order is placed, when will you send to us?
Generally about 15 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
if you have any question, pls contact us directly.
