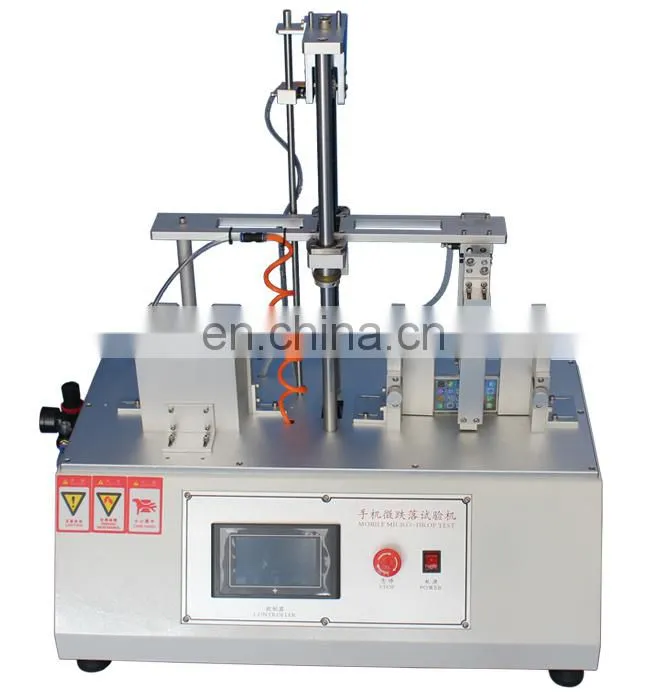

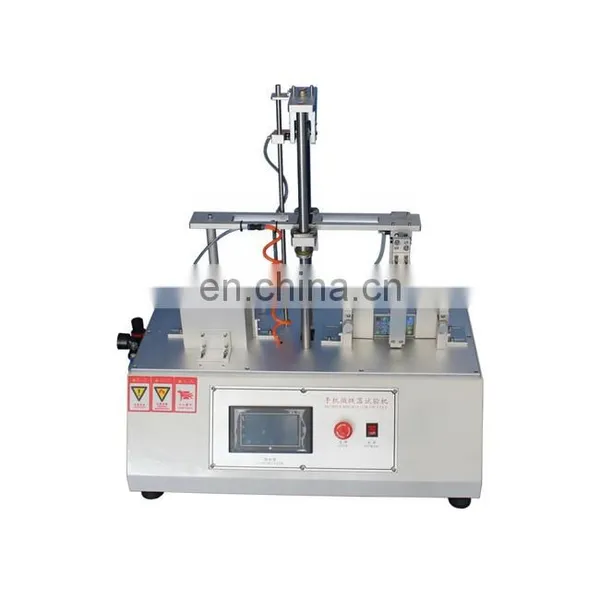

Micro Drop Tester for Iphone
This machine is suitable for repeated drop test of small electronic consumer products such as mobile phone, telephone handset, walkie-talkie, MP3, CD and electronic dictionary.
operating principle:
Motor drives the fixture (gas finger) go down clamping the phone, rise, loosen the fingers, mobile phone into a free falling movement, the double-acting cylinder telescopic push phone first fixture can clamp the position, the motor drives the fixture (gas finger) go down clamping the phone, rise, loosen the fingers, mobile phone into a free falling movement, so until the setting count finish.
Specialty:
1.Drop surface material: aluminum, thickness of 12mm
2.Prompt function: can set the number of keys, can stop the test automatically
3.The machine is used the SHINANO motor as the mobile phone to lift and drop the driving source.Can realize the mobile phone and other products repeatedly fall, to detect the product in a certain height of the impact resistance.
4.Beause use of pneumatic components and autocratic control methods, can greatly improved the test speed and consistency
Technical Parameters:
synchronization Working position: Two
Max capacity: 2kg
Drop height: 60-200 mm
Test speed range: 6~20 times/min
Overall dimensions: W550*H750*D650mm
Heavy weight: about 40kg
Air source: ≥0.5Mpa
Power: AC 220V
1.After an order is placed, when will you send to us?
Generally about 10 days, If we have it on stock, we can arrange shipment within 3 days.
2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.
3.What about the services and product' quality?
Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
