45/0 Film Densitometer YD5010 Spectrodensitometer for Color and Density Measurement



Product Description



 YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.





Model
YD5010
Measurement Geometry
45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Features
Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics
and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of
optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source
Combined LED Light, UV Light
Spectral separation device
Concave Grating
Detector
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
400~700nm
Wavelength Pitch
10nm
Half Bandwidth
10nm
Measurement Conditions
Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Standards
ISO Status A, E, I, T
Density index
Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error
and gray level
Measurement aperture
Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Color Spaces
CIE LAB,XYZ,Yxy,LCh
Color Difference Formula
ΔE*ab,ΔE*94,ΔE*00
Other Colorimetric Index
/
Observer Angle
2°/10°
Illuminants
A,C,D50,D55,D65,D75,F2,F7,F11,F12
Measurement Time
About 1.5s
Repeatability
Density: Within 0.01 D

Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white
calibration) Except M3
Inter-instrument Error
Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Measurement mode
Single Measurement, Average Measurement(2-99)
Size(L*W*H)
184*77*105mm
Weight
About 600g
Power source
Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span
5 years, more than 3 million times measurements
Display

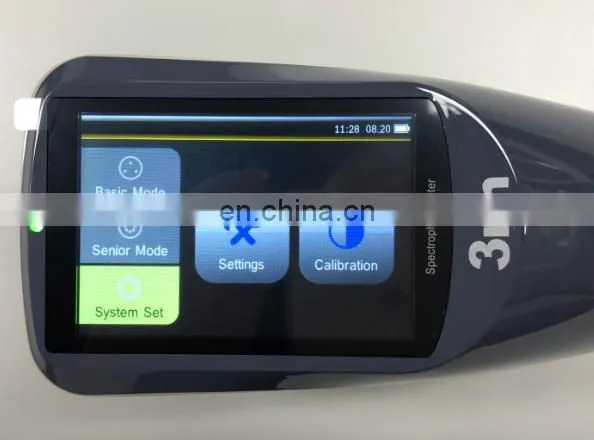

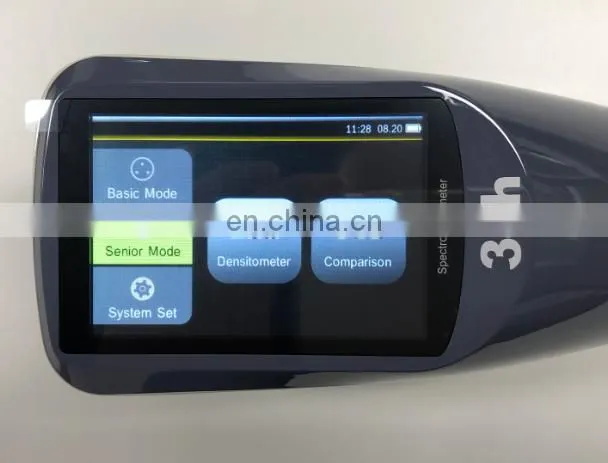

3.5-inch TFT color LCD, Capacitive Touch Screen
Interface
USB,
Data memory
10000 pcs
Language

Simplified Chinese, English, Traditional Chinese
Working Environment
Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment
Temperature: -20~50℃; Humidity: 0~85% (No Condensation))
Standard Accessory

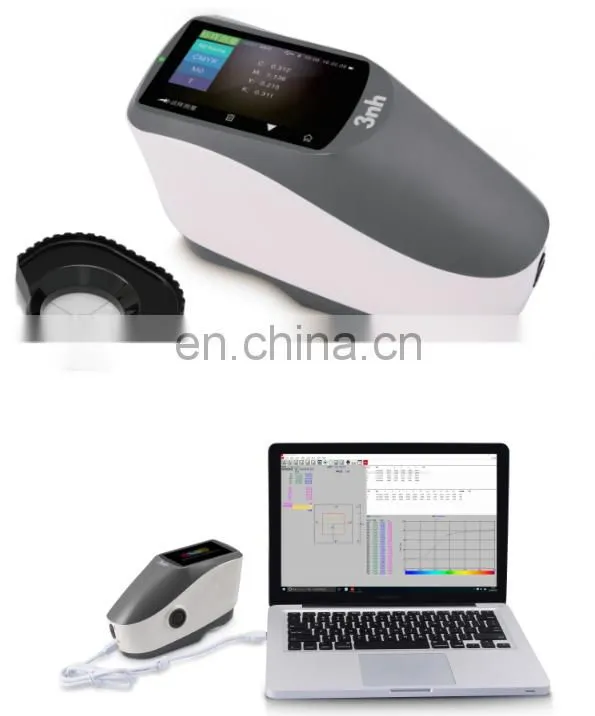

Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration
Board, Protective Cover,Polarization filter box,Locating Plate
Optional Accessory
Micro Printer
Notes: The specifications are subject to change without notice.



YD5010 45/0 CMYK digital offset printing machine density color spectrophotometer for paper printingYD5010 45/0 CMYK digital offset printing machine density color spectrophotometer for paper printing



YD5010 45/0 CMYK digital offset printing machine density color spectrophotometer for paper printing



YD5010 45/0 CMYK digital offset printing machine density color spectrophotometer for paper printing





1.After an order is placed, when will you send to us?
Generally about 7 days, If we have it on stock, we can arrange shipment within 3 days.

2.What about the warranty with after - sales services?
12 months warranty. Besides, we can help you to repair your problem controller freely.


3.What about the services and product' quality?

Our products are widely recognized and trusted by users.All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other requireable standards.
