Help CenterPower Transformation High IP Converter
Related Products
Fracturing operation is one of the important means to improve oil and gas energy recovery efficiency, which is widely used in increasing the output of oil-gas field and augmenting injection of water-injection well. Obviously, fracturing has become the main way to transform low permeability reservoirs, develop deep reservoirs, shale gas, and shale oil.
Diesel fracturing vehicles running for a long time will consume a large amount of fuel, produce harmful gases, and face problems such as high cost, environmental damage, loud noise, centralized equipment placement, and fire risk.
Specifications of the Power Transformation Motor Frequency Converter
BDBP-3350/10/3.3
Model |
BDBP-3350/10/3.3 |
Transformer capacity |
4000kVA |
Power rating |
3500kW |
Output Current |
720A |
Input frequency |
50Hz |
Input Voltage |
10kV+10% |
Input PF |
0.95 |
Efficiency |
>0.96 |
Output Frequency |
0~120Hz |
Frequency resolution |
0.01Hz |
Overload |
120% 1min |
BP-2×3350/10/3.3
Model |
BDBP-2×3350/10/3.3 |
Power rating |
2×3350kW |
Output Current |
2×650A |
Input frequency |
50Hz |
Input Voltage |
10kV+10% |
Input PF |
0.95 |
Efficiency |
>0.96 |
Output Frequency |
0~50Hz/60Hz |
Frequency resolution |
0.01Hz |
Overload |
120% 1min |
Features of the Power Transformation High IP Converter
High protection container design;
Modular design, good for mounting and maintenance;
Multiple combination options among 1,2,3, independent variable frequency outputs of different power;
Built-in lightning protection and surge protection;
Small size with high power density.
Applications of the Power Transformation Frequency Converter 50Hz to 60Hz

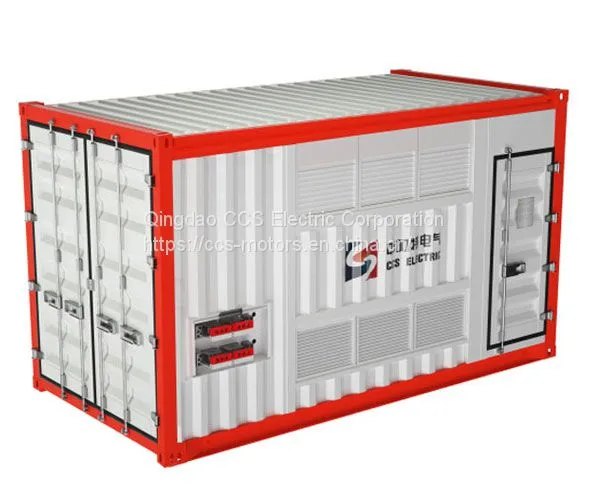

The mobile container-type converters for fracturing trucks (spread) developed by CCS, with the high power and multi-loop independent output and the technology integration of frequency control, heat dissipation, electrical and environmental protection, are widely favored by the oil industry.
Qingdao CCS Electric Corporation is a professional power control equipment company, we provide power control equipment, flame proof motor and etc.
