Help CenterUniform Companies LinTag Transponders RFID UHF Flexible Thermo Line Laundry Tag
Related Products
-
Nursing Homes Linen and Garment Tracking Heat Sealable Tex Transponder UHF Chip RFID Laundry TagUS$ 0.25 - 0.5MOQ: 5000 Pieces -
UHF Fabric Textile Waterproof RFID Laundry Tag Programmable Washable Laundry TransponderUS$ 0.25 - 0.5MOQ: 5000 Pieces
-
Washable Textile Heat-Sealing UHF RFID Laundry Tag for Linen ManagementUS$ 0.25 - 0.5MOQ: 5000 Pieces
-
Uniform Clothing Tracking Fabric Flexible Thermosticking Chip UHF RFID Laundry TagUS$ 0.25 - 0.5MOQ: 5000 Pieces
-
860Mhz~960Mhz Washable UHF Chip Textile RFID Linen Tag for Laundry SystemUS$ 0.25 - 0.5MOQ: 5000 Pieces

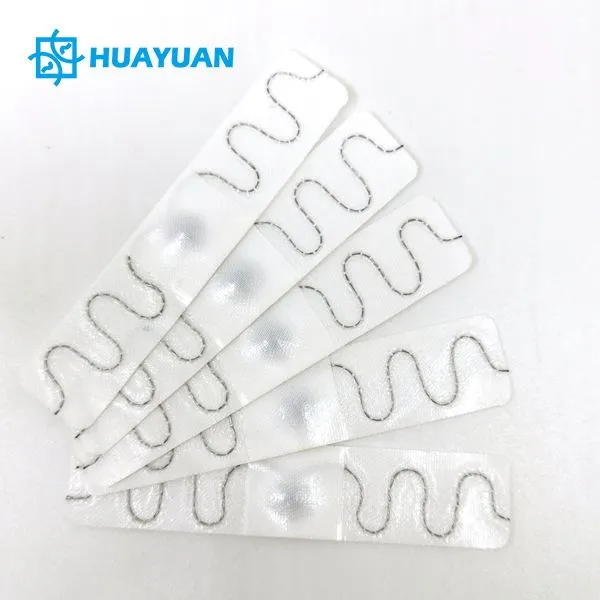

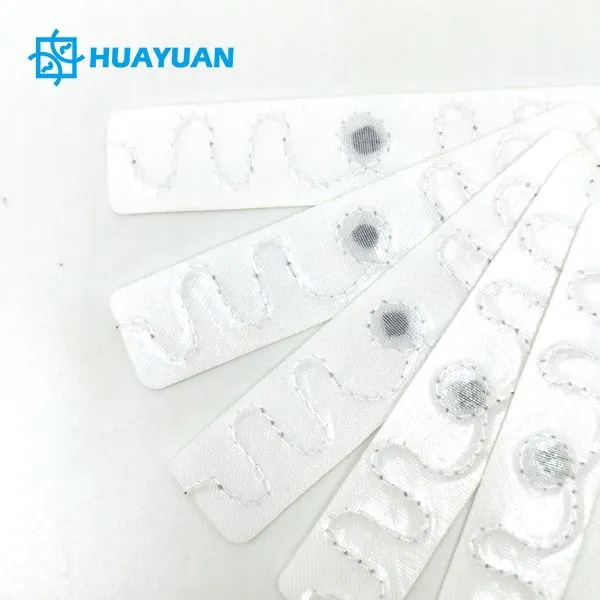

HUAYUAN HLT serial RAIN RFID laundry tag is a flexible, tenacious, heat resistant design transponder based on textile strip. All textile assets like flat linen, garments and uniforms can be traced and tracked imperceptibly conveyed with unique ID carried, to realize digital transparency and touchless laundry management throughout the soil collection, laundering, distribution processes by RFID facilities work with IT management systems. With a thin, narrow, and soft figure, the HLT laundry tag can be inserted into the tiny flat linen as well as finest textiles with no-wear feeling and unnoticeable look.
Key Features:
l Flexible, thin, smooth and robust;
l Long read range and bulk reading performance;
l Guaranteed for 200 washing cycles working through sterilization, dewater, heat iron processer under pressure 60 bars, 180°C heating;
l Fit for stitching, heat-sealing, pouching or hanging;
l On demand service: laser logo with EPC encoding in RFID chip.
Applications:
Textile Assets E-tracking Items: linen, uniforms, workwear, fire retardant, footwear, mask, mats, mops for healthcare, hotel, restaurant, even fashion apparel industries.
Specifications:
Protocol |
ISO 18000-6C / EPC Global Class1 Gen2 |
Working Frequency |
860 ~ 928MHz |
IC |
NXP UCODE 8, UCODE 9 |
Memory |
UCODE 8: EPC 96/128bits, User 0/32bits, access password 32bits UCODE 9: EPC 96bits, User 0bits, access password 0bit |
Write Endurance |
100,000 times |
Data Retention |
20 years |
Warranty |
200 wash cycles or 2 years from ship date |
Type |
HLT-7015 / HLT-7015M |
Size |
70x15x1.6mm/1.1mm |
Weight (approx.) |
0.6g |
Read Range |
Up to 7m |
Material and Components |
l Substrate fabric: Terylene or 50/50 Terylene cotton l Antenna: Stainless fiber wrapped by TPU, l Chip modules alternative: 1, Dia. 5mm PCB board with near field antenna + QFN RFID chip + epoxy protection 2, 3.5x3.5x0.8mm mini cube with min antenna and chip sealed inside. |
Typical Laundry Processes Cycles’ Endurance |
Each of the 200 cycles industrial laundry under: l Sterilization: +134°C (273°F) / 20 minutes l Washing: +90°C (194°F) / 60 minutes l Water Extractor Press: 60 bars l Drying: +180°C (356°F) / 3 minutes (dehydration press: 35 bar) l Ironer: 195°C (383°F) / 30 seconds |
Storage Temperature |
-40°C ~ +120°C (-40°F to +248°F) |
Chemical Resistance |
All chemicals common to the washing process |
Certification |
STANDARD 100 by OEKO-TEX / SGS |
Variable Data |
On demand variable data operation include visual data printing and chip programming serving based on customer’s individual request. |
Installation:
HUAYUAN is a professional RFID tag providers. We provide kinds of RFID tag, RFID wristband, RFID card and so on. Want to know more? Please feel free contact us.
