♦Introduction♦
The working principle of mechanical milking is the use of negative pressure. The frequency of the pulsator is used to alternately open and close the inner sleeve of the teat cup so as to achieve the purpose of milking.
♦Features♦
1. using stainless steel frame, durable, beautiful and generous;
2. The vacuum pump adopts German imported rotary vane, with good gas and fast qi;
3. the body is lightweight, flexible and convenient to adapt to small farmers.
4.9J series rotary vacuum milking machine is suitable for cattle, goats, sheep, camels, donkeys, horses and so on.
5. Different animals use different milk cups.
♦The main structure♦
9J series rotary vane vacuum pump milking trolley main structure consists of bracket, stainless steel surge tank, milk barrel, motor, vacuum pump, long milk tube, valve, pulsator, vacuum gauge, true air conditioning pressure valve, long pulse tube, milk collector Switch, milk collector, short pulse tube, milk cup, inner sleeve, milk cup stopper, power switch, drain valve, etc.
♦Product parameters♦
Working vacuum |
50kpa |
Pulse form |
gas pulse |
Pulsating frequency |
60±3r/min |
Pulsating ratio |
60:40 |
Vacuum pumping speed |
220 L/min |
Vacuum pump power |
1.1kw |
Productivity |
20-24 heads/hour |
Milk bucket capacity |
2*25L |
Packing size (wooden box) |
85*80*92cm |
Net weight |
83kg |
| Gross weight | 101kg |

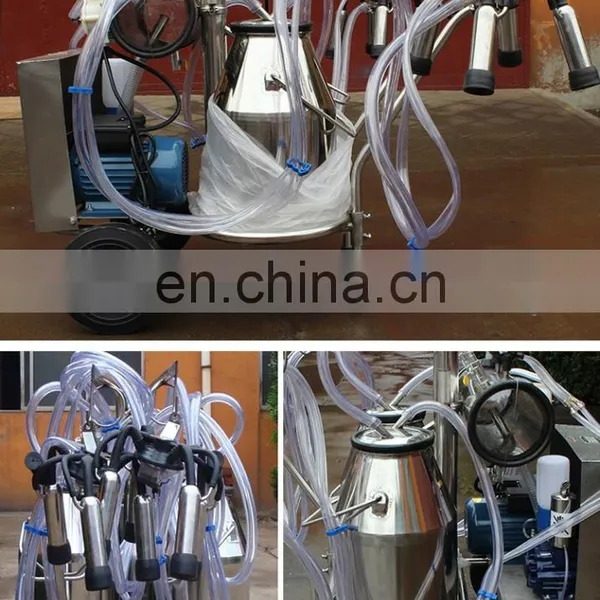

♦Pictures♦
♦After-Sale♦
Warranty 1 year and permanent service.
Whenever you meet problem in operation,please feel free to tell us.
We'll reply your problem within 48 hours with details and video if needed.
During the warranty,if there's spare part break under normal operation,we'll send you new spare part to replace for free.
♦Payment Methods♦
These payments of T/T, L/C, Western Union, Paypal,Credit Card are accepted.
We can accept trade assurance service,that means you can place the order directly in alibaba system.It can offer you 100% protection for your payment and aftersale service.
♦Logistics♦
DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company. Please leave a message to us.
♦Tracking Number♦
Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.
♦Feedback♦
Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.
