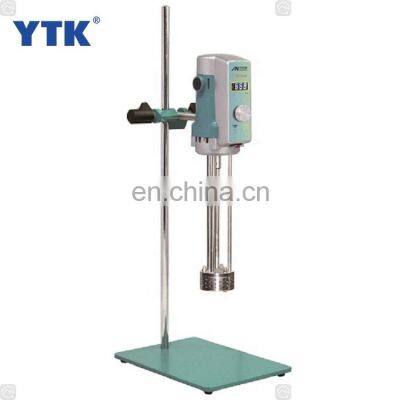

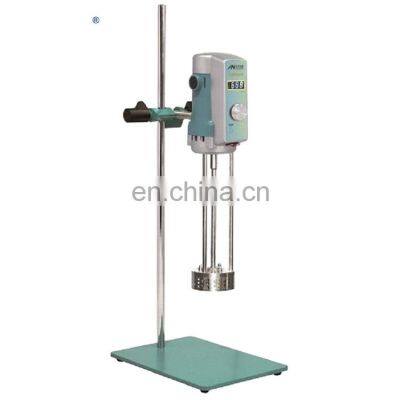

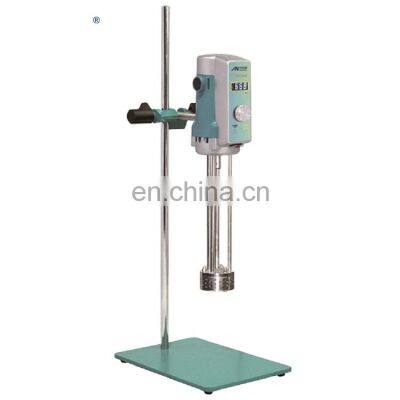

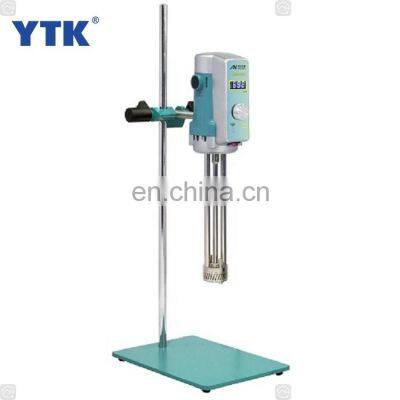

Homogenizer Mixer for Cosmetic Cream Emulsifier Mixing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1995
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VH-5 Dry Powder Mixing Machine Pharmaceutical Powder Granules MixerNegotiableMOQ: 1 -
YPJ-818 Speed-Adjustable Pharmaceutical Pill Polish Machine Media Tablet Capsule PolisherNegotiableMOQ: 1
-
High Speed Capsule Polishing Machine Pharmaceutical Medicine Polishing EquipmentNegotiableMOQ: 1
-
Laboratory Tablet Counting Machine Pill Capsule Counting Bottling MachineNegotiableMOQ: 1
-
Automatic Pharmaceutical Tablet Counter High Speed Medical Capsule Pill Counting MachineNegotiableMOQ: 1
Product Description
The dispersing homogenizer is driven by a high-speed motor, which is suitable for mixing low to medium and high viscosity liquids or distributing materials in liquid media, breaking tissue cells, etc. Drive output and working head positioning integrated structure, the operating state is more stable; the working head is made of high-quality stainless steel, and the experimental application area is wide; the operating speed micro-processing control, with real-time compensation for speed changes caused by load changes and power fluctuations, and constant speed Reliable; built-in soft start and automatic overload protection to ensure the safety of continuous operation at full load for a certain period of time; the speed is steplessly adjusted to meet the requirements of the experiment to revise the operating speed at any time. The digital display speed is intuitive, and the experimental data collection is convenient; the running timing control ensures the effective control of the experimental time.
Product Parameters
Product Model |
AE500S-H 50G |
AE500S-H 70G |
AE500S-H 90G |
Voltage |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
Input Power |
850W |
850W |
1350W |
Output Power |
500W |
500W |
800W |
Rated Torque |
34.1N.cm |
34.1N.cm |
69.5N.cm |
Working System |
S1(Continuity) |
S1(Continuity) |
S1(Continuity) |
Operation Control Method |
Combined control knob |
Combined control knob |
Combined control knob |
Speed Adjustment Range (no load) |
1000-14000rpm |
2000-14000rpm |
2000-11000rpm |
Speed Control Type |
Infinity |
Infinity |
Infinity |
Digital Revolution Indicator |
LED(Digital) |
LED(Digital) |
LED(Digital) |
Max. Torque of Working Head |
34N.cm |
34N.cm |
69.5N.cm |
Max. Linear speed of Rotor |
16m/s |
20.5m/s |
22m/s |
Working Head Material |
SS 316L Stainless Steel |
SS 316L Stainless Steel |
SS 316L Stainless Steel |
Working Head Diameter |
50mm |
70mm |
90mm |
Min./Max. Immersion Height |
50/236mm |
50/236mm |
50/236mm |
Stator Standard Configuration |
Square hole/long hole/inclined hole |
5mm²/20mm²/50mm² |
5mm²/20mm²/50mm² |
Processing Capacity (H2O) |
300-20000ml |
500 ~ 40000ml |
800-60000ml |
Max. Processing Viscosity |
8000mPa.s |
8000mPa.s |
8000mPa.s |
Allowable Ambient Temperature |
less than 40 ℃ |
less than 40 ℃ |
less than 40 ℃ |
Allowable Relative Humidity |
less than 80% |
less than 80% |
less than 80% |
Timing Control Range |
1-1000min |
1-1000min |
1-1000min |
Machine Size |
215*310*720mm |
215*310*720mm |
215*310*720mm |
Machine Weight |
9.2kg |
9.2kg |
10.8kg |
