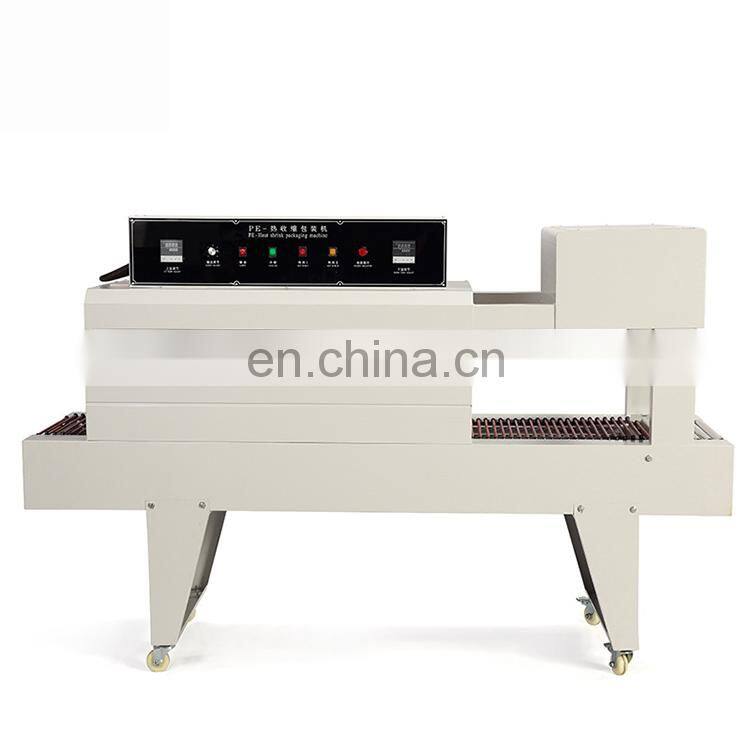

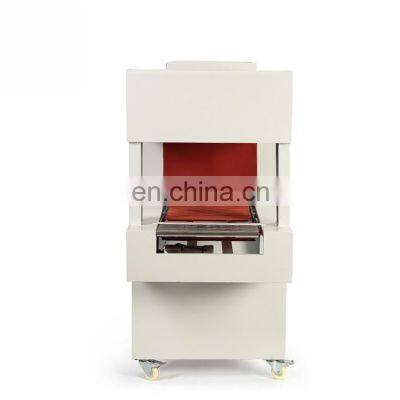

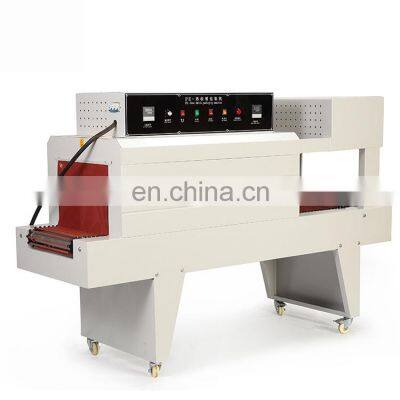

Shampoo Wrap Film Sealing High Quality Packing Heat Shrinkable Wrapping Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1995
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Food Pe Heat Shrinkable Automatic High Quality Packing Thermal Wrapping MachineNegotiableMOQ: 1 -
Ultrasonic Automatic Tube Filling Sealing Machine for Cosmetic CreamNegotiableMOQ: 1
-
Ultrasonic Plastic Tube Sealing Machine PriceNegotiableMOQ: 1
-
YTK-GLF-500 Electromagnetic Induction Sealing Machine Portable Plastic Bottle Cap SealerNegotiableMOQ: 1
-
Electromagnetic Induction Sealing Machine, Drug Sealing Machine, Food Aluminum Foil Sealing Machine PriceNegotiableMOQ: 1
Product Description
Heat shrinkable packaging is one of the more advanced packaging methods in the market. It is wrapped around the product or package by shrink film. After heating, the shrink film is wrapped around the product or package to fully display the appearance of the product, improve the product's marketing performance, and increase the appearance. A sense of value. At the same time, the packaged articles can be sealed, moisture-proof, and anti-pollution, and the sheets are protected from external impacts, and have a certain cushioning property, especially when the package is fragile, which can prevent the containers from scattering when scattered, and can also reduce the products. Possible to be stolen
Membrane introduction：
Pp film: non-toxic, odorless, low density, strength, stiffness, hardness and heat resistance are better than low-pressure polyethylene. It has good dielectric properties and high-frequency insulation and is not affected by humidity, but becomes brittle at low temperature, not wear-resistant and easy to age. Suitable for making general mechanical parts, corrosion resistant parts and insulating parts. Pe film: It is the simplest polymer organic compound to protect the product from pollution, corrosion, scratches and maintain the original smooth and shiny surface.
PVC film: It is a vacuum plastic film used for surface packaging of various panels, so it is also called decorative film and adhesive film.
Pof film: pof is a heat shrinkable film, mainly used for packaging regular and irregular shape products. It has non-toxic environmental protection, high transparency, high shrinkage, good heat sealing performance, high gloss, toughness and tear resistance. Split 'heat shrink even and suitable for automatic high-speed packaging
Technical Parameters
Model |
YTK-BSE6040 |
||||
film |
Polyvinyl chloride |
||||
name |
PVC |
||||
thickness |
0.02-0.06MM |
||||
heating time |
5-10S |
||||
Contraction chamber temperature |
110-130℃ |
||||
voltage |
380v |
||||
Heating tube power |
27kw |
||||
transfer speed |
0-10m/min |
||||
Shrinking furnace size |
1200*600*400mm |
||||
Load capacity |
25kg |
||||
Machine size |
2200*880*1570mm |
||||
Machine net weight |
430kg |
||||
Suitable for shrink film |
Pe/pvc/pof |
||||
Features:
Intelligent thermostat control；
Wide range of applications；
Simple way of working；
Energy saving, environmental protection and power saving；
Good effect and long life。
Product Application
Widely used in food, beverage, hardware, books, electronic products and other external packaging, can be used in shopping malls, office buildings, laboratories and other space a wide range of applications
Detailed Images

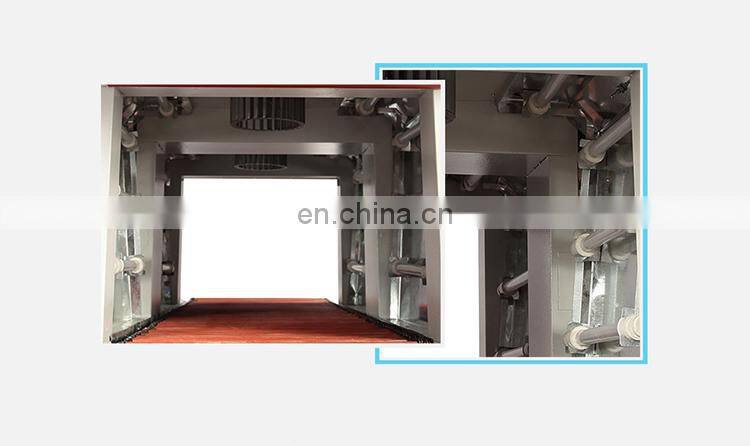

1. Electronic constant temperature control
The quartz tube heating method can continuously generate heat during work, and the powerful wind circulation can make the heating temperature more uniform. At the same time, the electronic temperature control system is stable in the temperature of the shrinking furnace and saves electricity!.

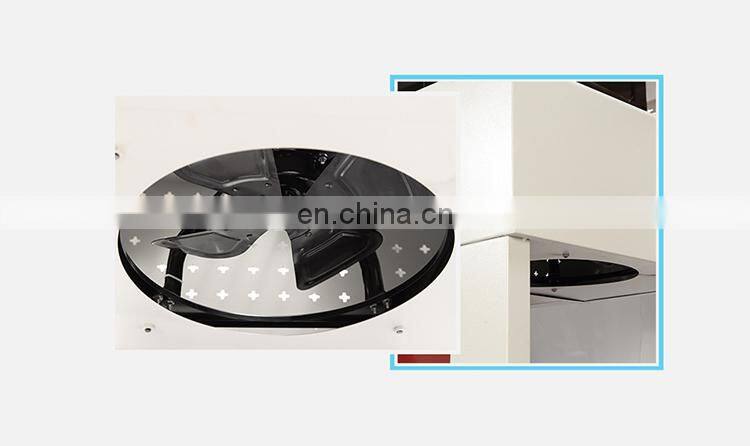

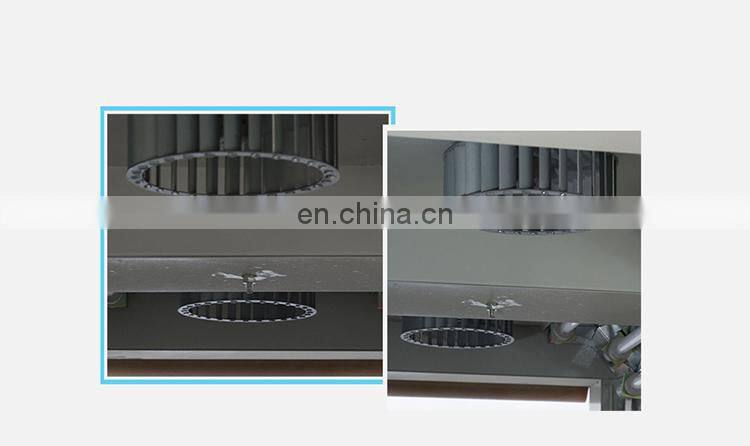

2. Double big leaves
The interior is equipped with two double large blades, which makes the wind in the shrinking furnace stronger, heating faster and shrinking more evenly.
3. High power cooling fan
Equipped with high-power outlet chiller, professional plasticity, instant shaping, making the contraction more firm and uniform

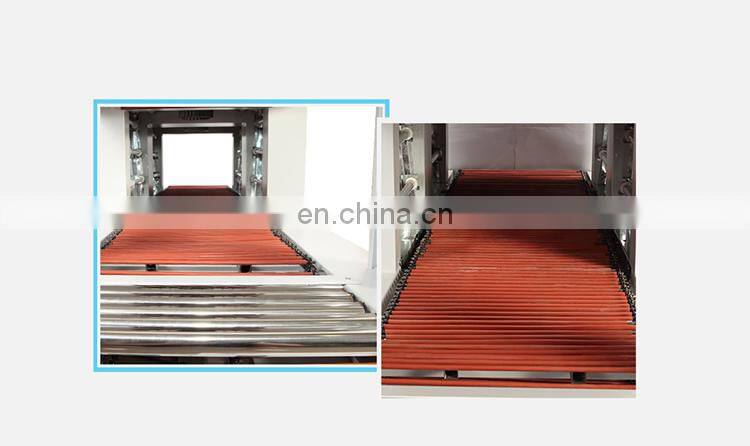

4. Roller conveyor
The drum conveyor is installed at the exit, which is convenient for cargo transportation and convenient for conveying and handling products.

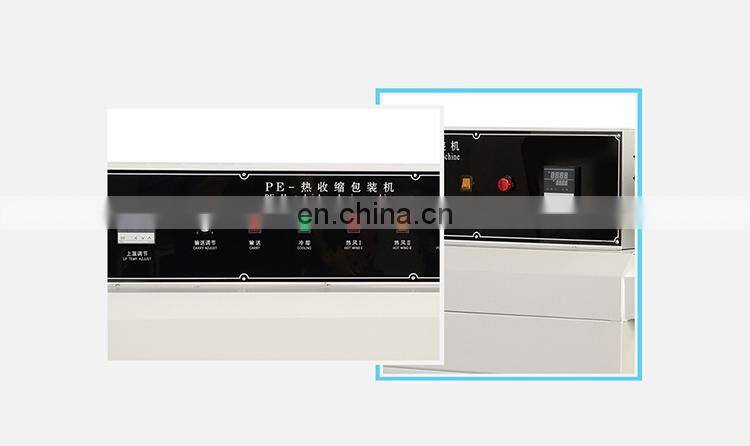

5. Easy control panel
Simple and convenient operation panel makes operation safer and clear at a glance, no need to worry about encountering complicated operation procedures

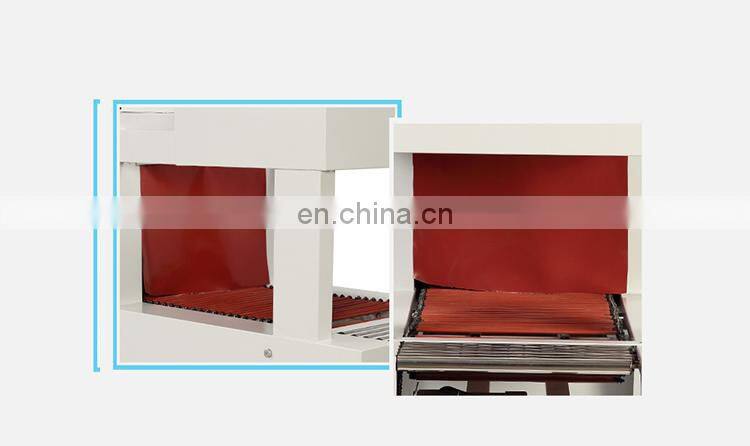

6. Large size material entrance
The material inlet is designed with a large size and the high temperature cloth is used as the occlusion at the entrance.

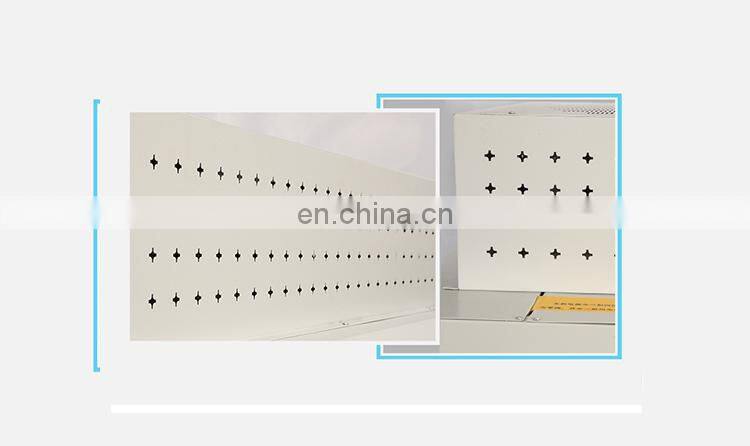

7. Multiple exhaust hole heat dissipation design
The back of the control box adopts multiple venting holes to ensure heat dissipation of electrical components, enhance product life, and can work continuously for a long time.
