Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine

Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine thumbnail-1
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine thumbnail-2
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine thumbnail-3
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine thumbnail-4
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine thumbnail-5
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine photo-1
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine photo-2
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine photo-3
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine photo-4
Automatic Packing Filling Machine for Water, Oil, Soy Sauce Vinegar Liquid Packaging Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1995
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Shenzhen Yason General Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

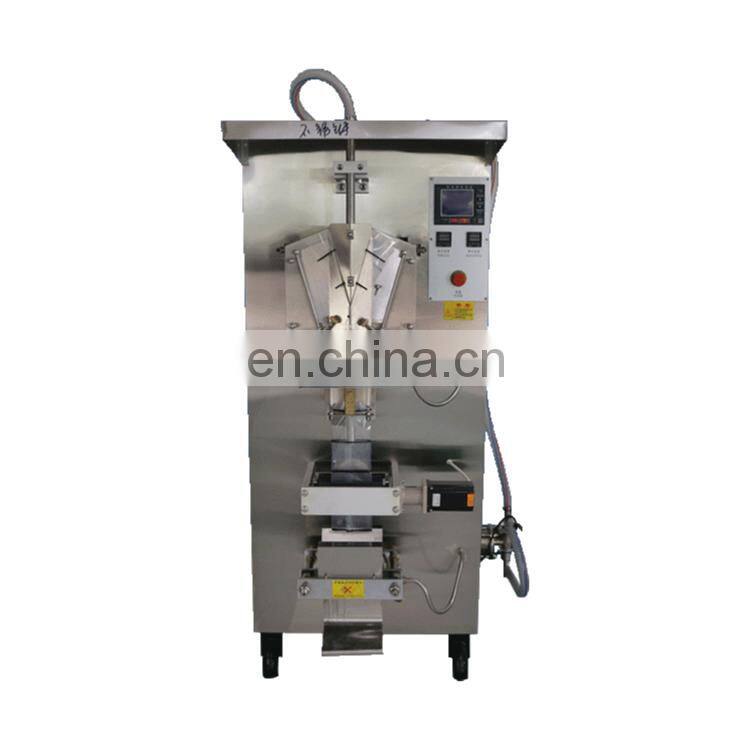

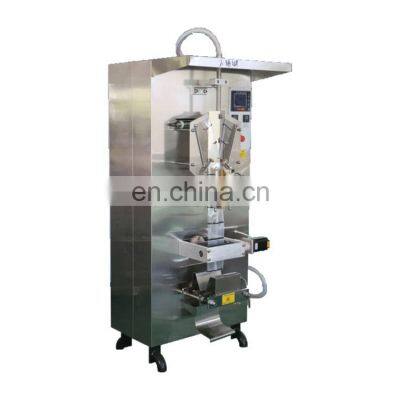

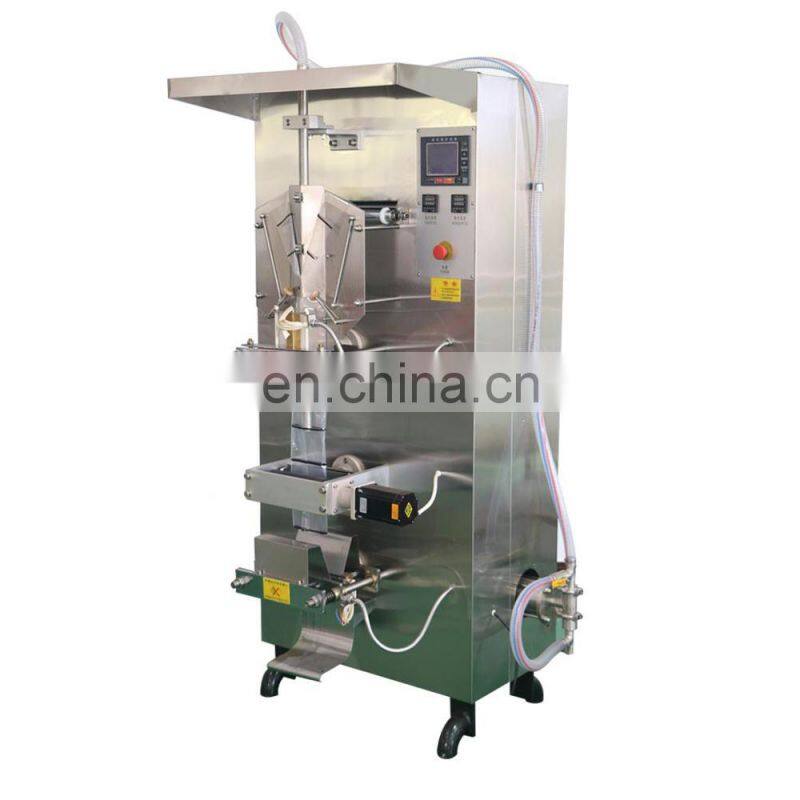

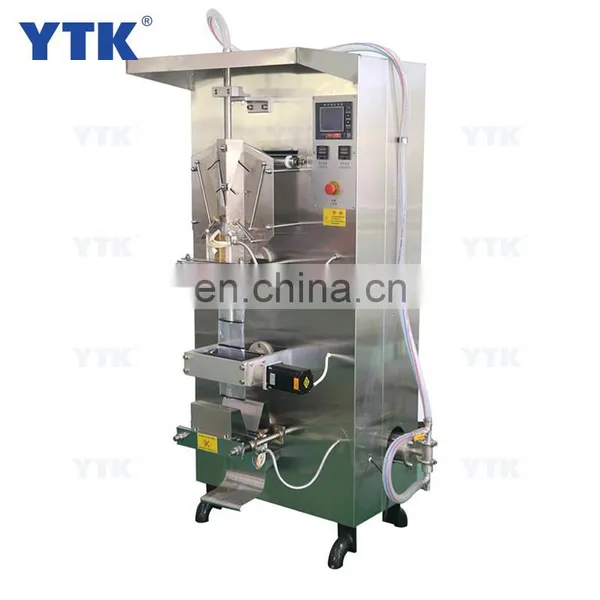

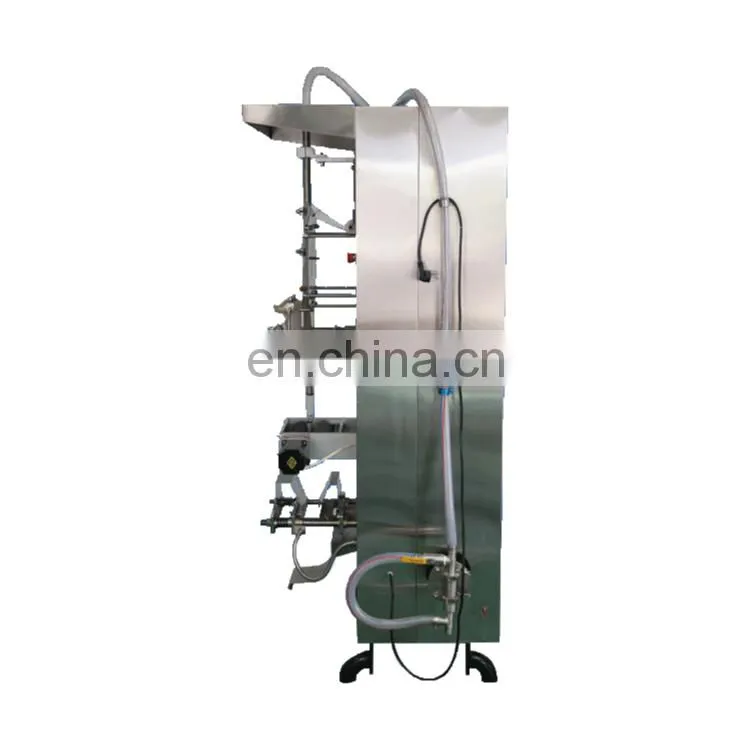

This SJ-1000 liquid packing machine is precisely controlled by PLC, it can automatically complete all the production process like bag making, counting, filling, sealing and coding batch number, adding easy to open notch, cutting separated or connected bags. It uses 304SS nozzles and valves and reduces filling error, more suitable for filling different kinds of liquid, such as milk, sauce, soymilk, vinegar, etc. All parts that get contacted with liquid is made of the 304SS, additionally, this machine can add color ribbon coding, dust cover and sterilizing lamp.
Product Parameters
Model
SJ-1000
SJ-2000
Bag-making length
50-150mm
50-250mm
Bag-making width
40-150mm
40-175mm
Packing film width
100-320mm
100-380mm
Packing capacity
100-500ml
200-1000ml
Packing speed
2000-2200bags/hour
1100-1300bags/hour
Power
1.6KW
2.5KW
Dimension
880*760*1800mm
1050*850*2050mm
Weight
275kg
380kg
Application

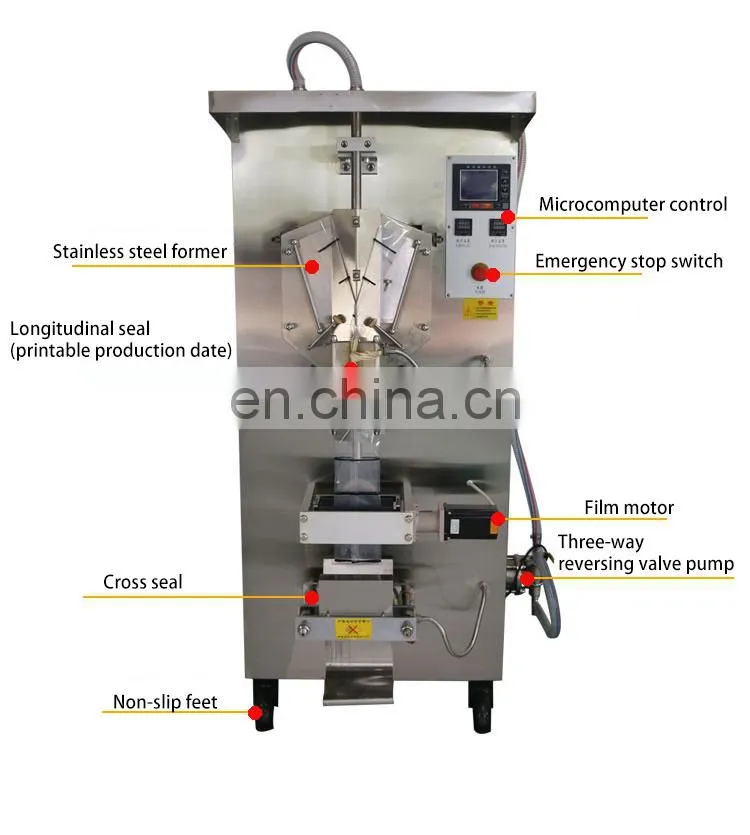

Detailed Images

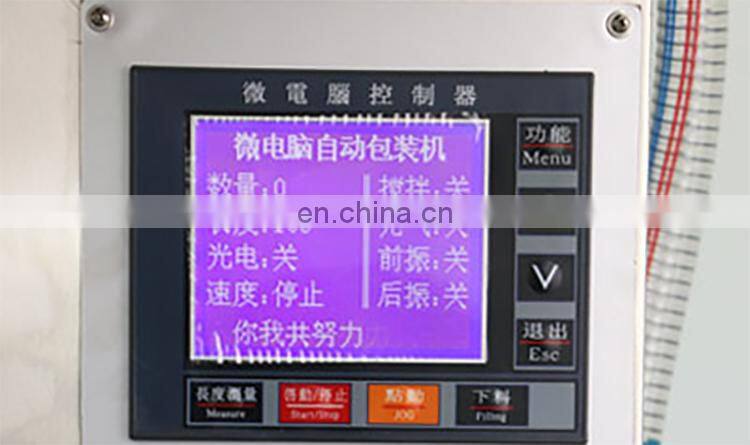

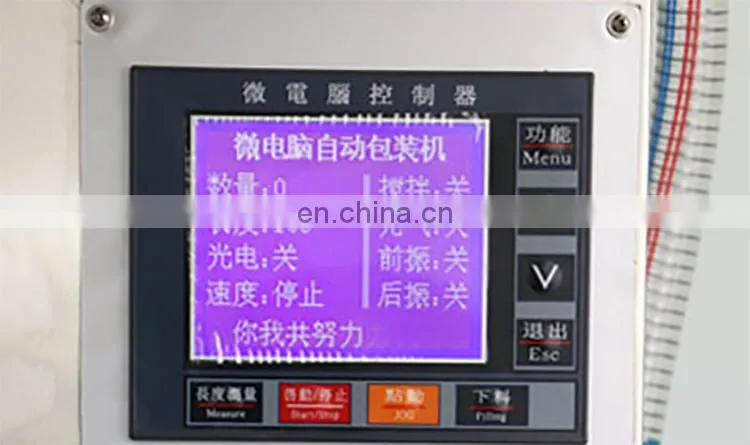

Microcomputer control

Automatic cutting, sealing, coding, counting, feeding, temperature control, bag length, cutting, metering photoelectric control.

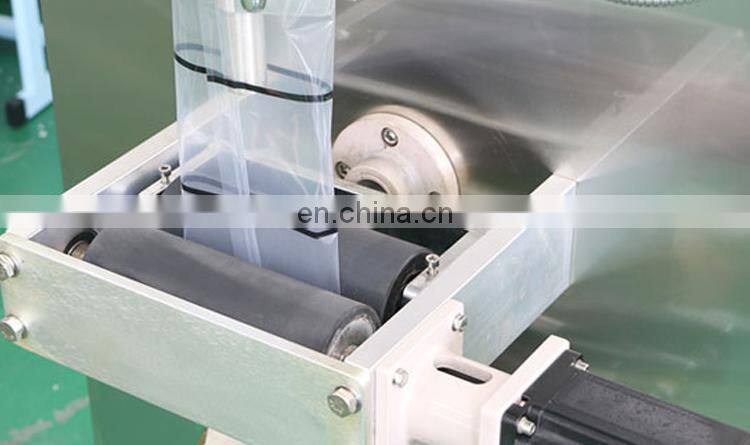

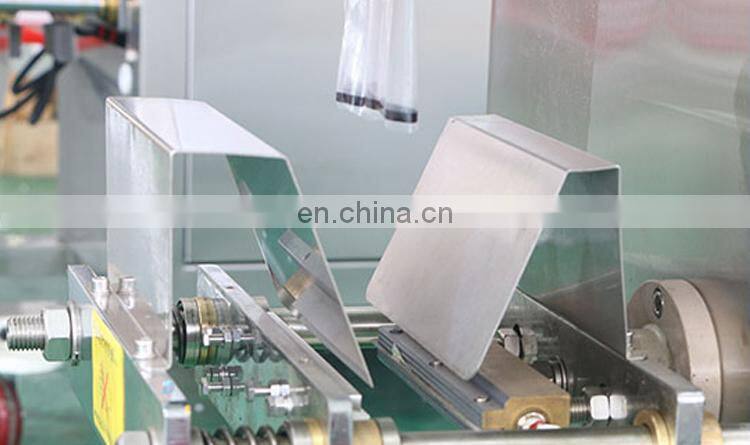

Film pulling device

Cross seal

The seal is made of pure copper seal, which has stable thermal conductivity and a firmer seal.

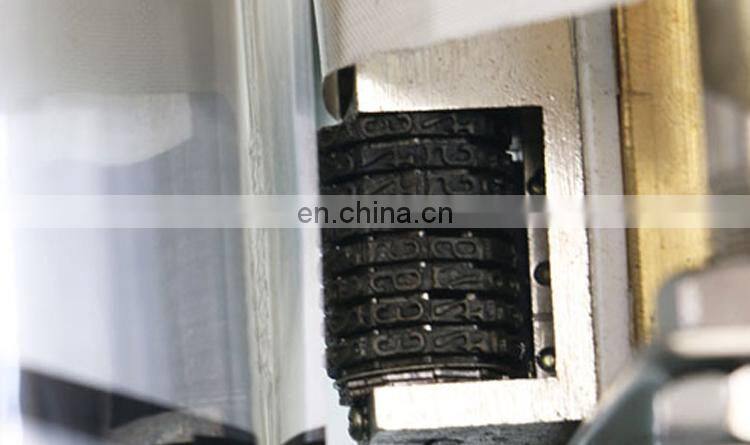

Code device

The production date is printed in a straight line and the font is clearly visible. Note: You can use the color code to code, one
to three rows of heated code.

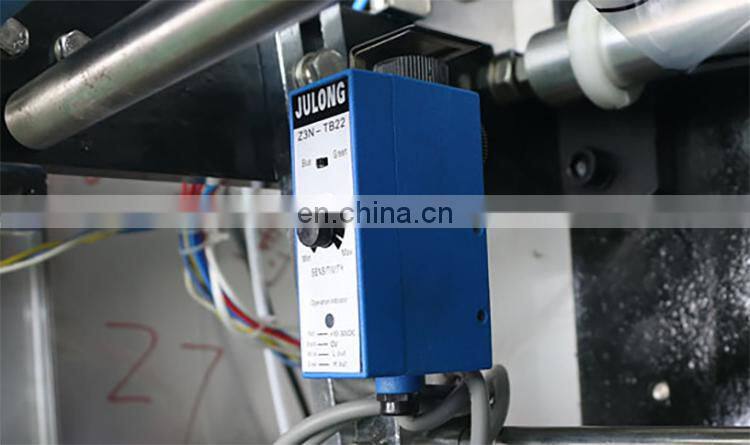

Photoelectric control

Assemble the photoelectric control device to ensure the complete packaging pattern.

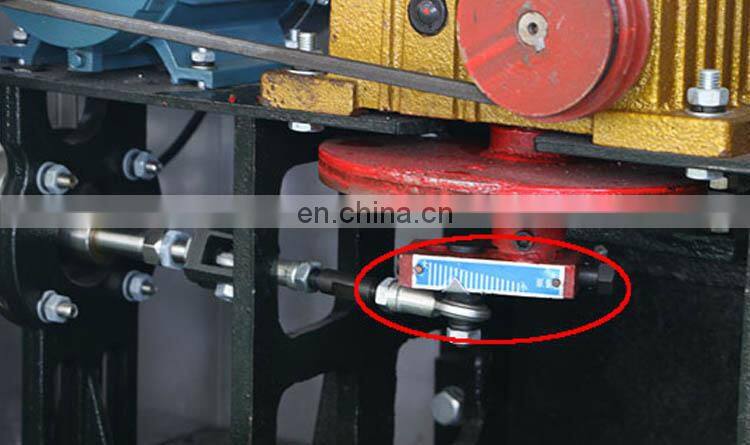

Regulating valve

Adjustable filling volume between 50-550 grams.
