Home > Packaging & Printing > Packing Machinery > Wrapping Machine > Automatic L Type Sleeve POF Shrink Wrapping Packaging Machine Heat Cutting and Sealing Machine for Film PE Plastic

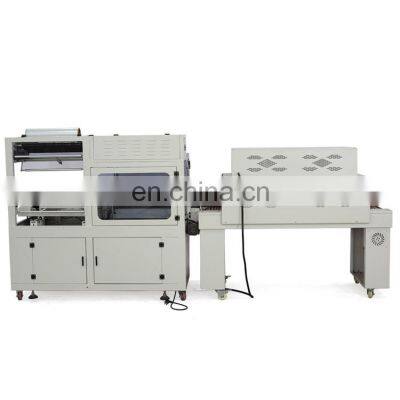

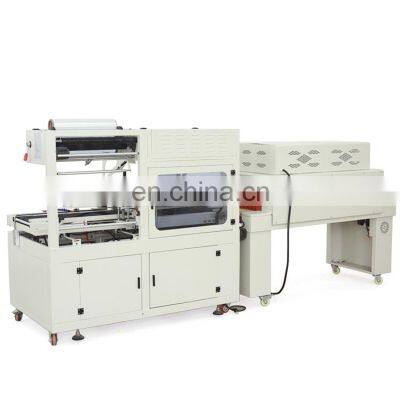

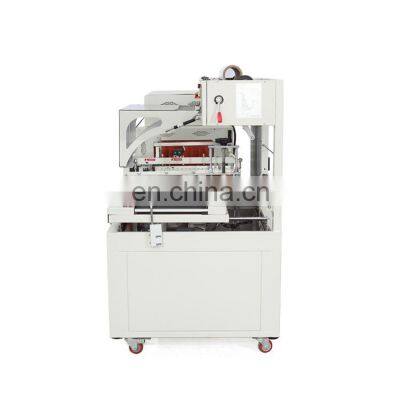

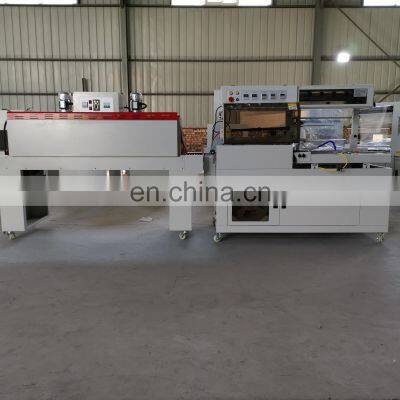

Automatic L Type Sleeve POF Shrink Wrapping Packaging Machine Heat Cutting and Sealing Machine for Film PE Plastic
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1995
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Labeling Machine Sticker Labeling Machine for Round Bottles Cans JarsNegotiableMOQ: 1 -
Auto Filling Machine Pneumatic Filler Machine Six Head Straight Paste Automatic Filling Machine PriceNegotiableMOQ: 1
-
Automatic Rotary Filling Machine With Capping PriceNegotiableMOQ: 1
-
Six Head Filling Machine, Beverage Mineral Water Juice Milk Olive Oil Shampoo,automatic Liquid Filler PriceNegotiableMOQ: 1
-
Automatic Labeling Machine For Flat Label Sticker Machine For Square Bottles, BoxesNegotiableMOQ: 1
Product Description
Product Parameters
Model | DQL5545 |
229Voltage | 220V 50Hz |
Cross cut heating power | 1100W |
Slitting heating power | 800W |
Sealing time | 0.2s-1s |
Membrane thickness | 0.012mm-0.06mm |
Work efficiency | 0-30pcs/min |
working pressure | 5-6kg/cm² |
Maximum sealing size | 550*450mm |
Maximum sealing size | H≤140 l+2h≤550 w+2H≤450 |
Packaging material | POF |
Dimensions | 1600*680*740mm |
Weight | 300kg |
Applicable film | POF/PVC |
Model | DSD4520 |
Voltage | 380V 50Hz |
Cross cut heating power | 12.8kw |
Shrinking furnace size | 1200*450*200mm |
Dimensions | 1600*719*1444mm |
Transfer speed | 0-10m/min |
Transport load | 10kg |
Application
Features
Packing speed up to 30 packs per minute
High degree of automation, sealing and shrinking in one time, can achieve high-speed unmanned automatic operation, packaging speed up to 30 bags per minute.
Advanced cutter, strong sealing
The sealing and cutting part adopts Teflon coating, anti-adhesive and high temperature resistance, no cracking, no coking, no smoke and zero pollution. The sealing frame is made of high quality alloy steel, and the frame is not easily deformed.
High-end configuration
In pursuit of high quality and high performance, the use of well-known brand accessories, so that the packaging effect is better, the trial life is longer.
Adjust height width according to product
The height of the cutter can be adjusted according to the size of the actual packaged product (maximum seal size 550*450mm) Wide range of packaging, convenient for the use of users.
Wind cycle, good shrinkage effect
The temperature meter and the lower heat are double-adjusted, and the large wind blade is used to make the shrinking furnace form a good wind circulation system, so that the heating temperature is more uniform and the shrinking effect is more refined.
Solid state voltage regulation
Electronic constant temperature system, when the temperature of the shrinking furnace reaches the set temperature, the machine automatically stops heating to make the shrinking furnace save energy and save electricity. Adopt well-known brand speed-adjusting circuit board to make shrinkage conveying more stable and better shrinkage effect
AC large motor
Large motor, strong power, good performance, long service life, guaranteed after sale, durable
Detailed Images
