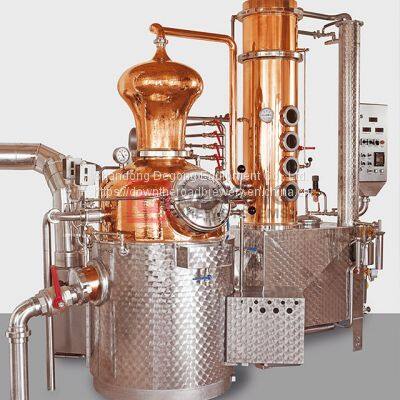

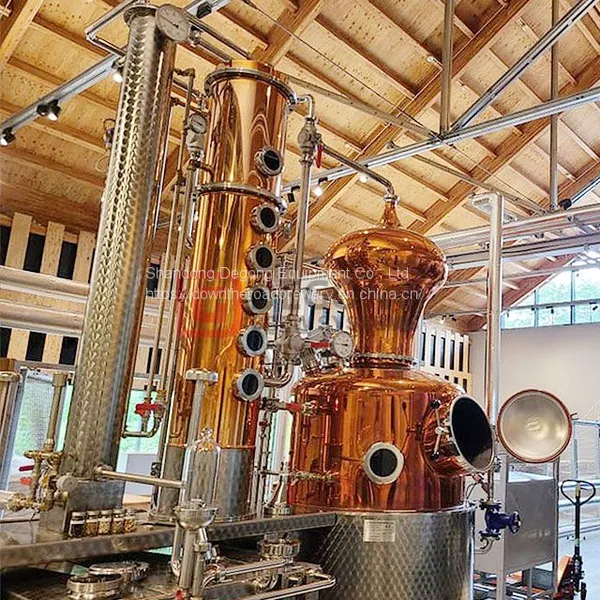

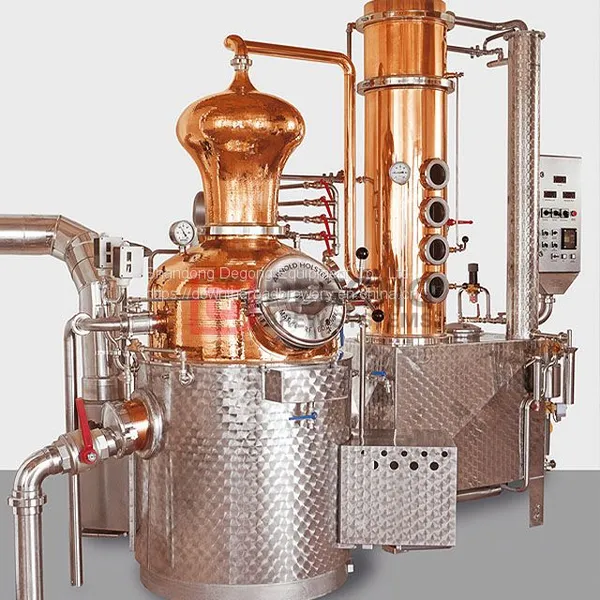

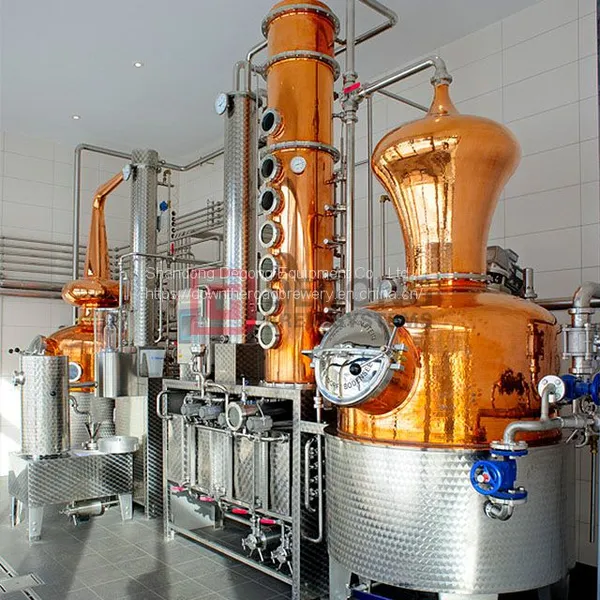

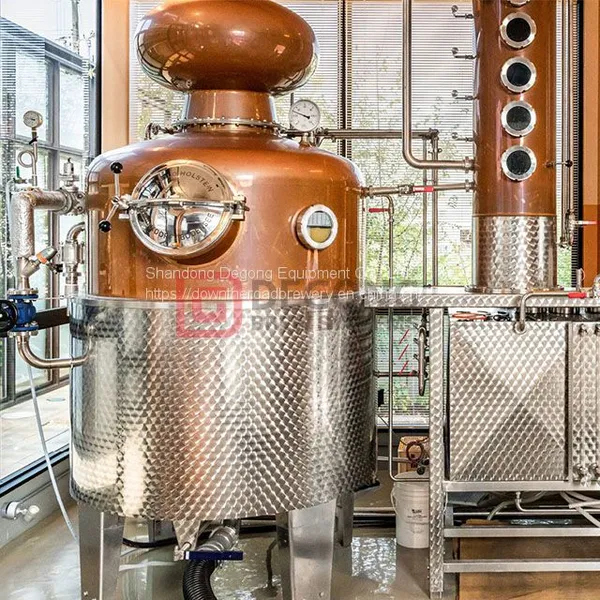

The device is composed of a pot composed of copper, glass and copper columns, a fractionator and a condenser, and is heated by steam or electricity.
Can provide a complete distillation process system, including mash barrels, fermentation tanks, wine storage tanks, wine tanks, etc.
1000L distillation equipment
Tank capacity parameter 1000L
Steam heating method
All use Tri-clamp and flange connection; easy to install and clean the equipment after operation.
The composition of 1000L distillation equipment distiller
Capacity 1000L, explosion-proof stirring motor, all glass manhole
Helmet copper whiskey helmet
Pillar Copper A total of 16 pieces
Copper condensation column, shell and tube type
The support base is made of stainless steel, and the water tank and finished tank are used as the support base
Distilling pot: inner full copper pot, outer steam jacket insulation layer, outer fish scale polished, full glass manhole view, stirring with agitator on the top.
Column board: Foamed copper board, with valve operation on the side, CIP ball inserted into each board for cleaning, and CIP pipe and valve operation on the back.
Bottom collection tank: The water tank collects condensate and cleans it with CIP. The alcohol tank is collected directly from the parrot, and the bottom is connected to a water pump.
Blister: Composed of blister, drain pipe, bubble board, copper screw, bubble tee (we have stainless steel 304 and copper optional)
Control panel: The material of the control box is stainless steel 304 or plastic optional;
Applicable voltage: 208/220/240V single-phase 60Hz, adjustable heating temperature module.
Application
It can ensure that you get the functions of distilled whiskey, brandy, gin and vodka.
More distillation systems can be customized
200L distillation equipment
300L distillation equipment
800L distillation equipment
1000L distillation equipment
1500L distillation equipment
2000L distillation equipment
Contact us
A wide range of models can meet the various requirements of each market and ensure that you can always find a solution that suits you. If you want to know more detailed information about our equipment, please contact us.
