New Design SDA Series Good Price Thin Double Acting Stroke 5-100mm Compact Air Pneumatic Cylinder
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2004
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MHZ2 Series Parallel Style 180 Degree Pneumatic Air Angular Cylinder Finger Gripper For Face Mask Machine RobotsNegotiableMOQ: 1 -
M5*0.8 Thread Size Standard Stroke Piston Rod Motion Thin Attached Magnetic SDA Series Compact CylinderNegotiableMOQ: 1
-
G1/4 Thread Size Stainless Steel Air - Compressed Piston Rod Movement With Magnetic Convenient MINI MA Standard CylinderNegotiableMOQ: 1
-
High Precision Guide Rod Air Pressure Differential Guide Rod Pneumatic Dual-guide Cylinder Suitable for 0.1-0.9MPaNegotiableMOQ: 1
-
SL Series Brass Plastic One Touch Quick Connect Tube Hose Elbow Pneumatic Fitting Air Flow Speed Control Throttle ValveNegotiableMOQ: 1
Details Images
Product Description

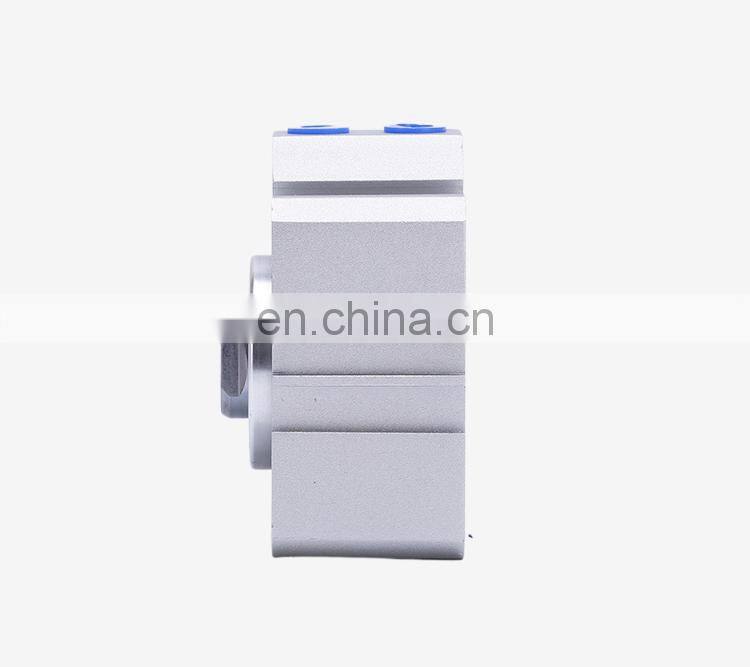

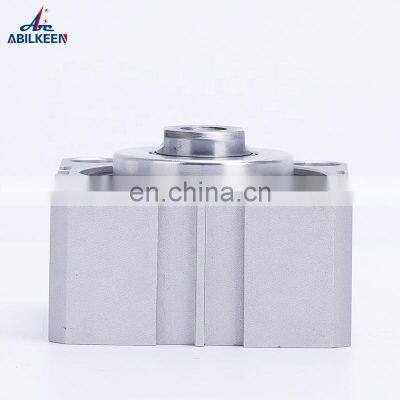

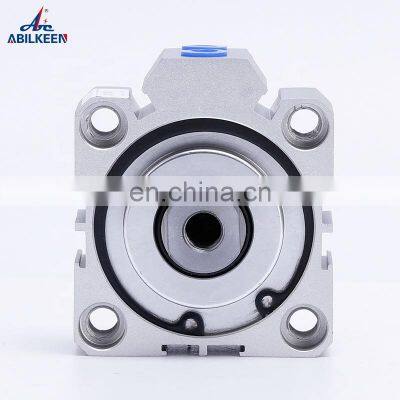

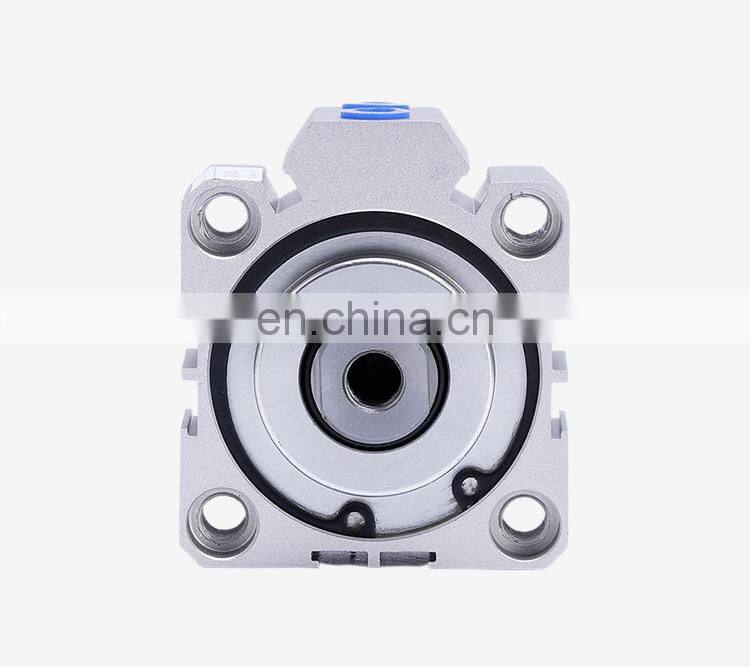

New Design SDA Series Good Price Thin Double Acting Stroke 5-100mm Compact Air Pneumatic Cylinder
Specification:

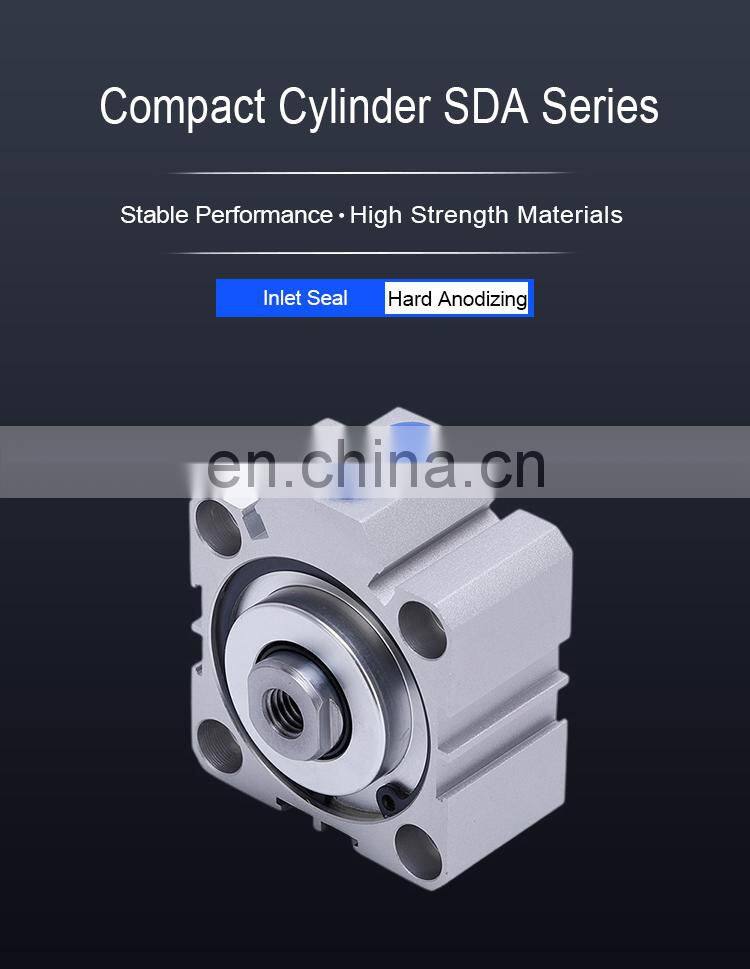

SDA Series Compact Cylinder
Motion pattern:Double Action
Application:Pneumatic
Structure:Piston Cylinder
Material:Stainless steel
Double acting double out system
Made of high-quality materials, resistant to rust and corrosion, and durable.
Easy to install and remove, easy to operate, no additional tools or accessories required.
The forces allowed at different speeds are different.
Adjustable stroke
Working Fluid:Air
Motion pattern:Double Action
Application:Pneumatic
Structure:Piston Cylinder
Material:Stainless steel
Double acting double out system
Made of high-quality materials, resistant to rust and corrosion, and durable.
Easy to install and remove, easy to operate, no additional tools or accessories required.
The forces allowed at different speeds are different.
Adjustable stroke
Working Fluid:Air

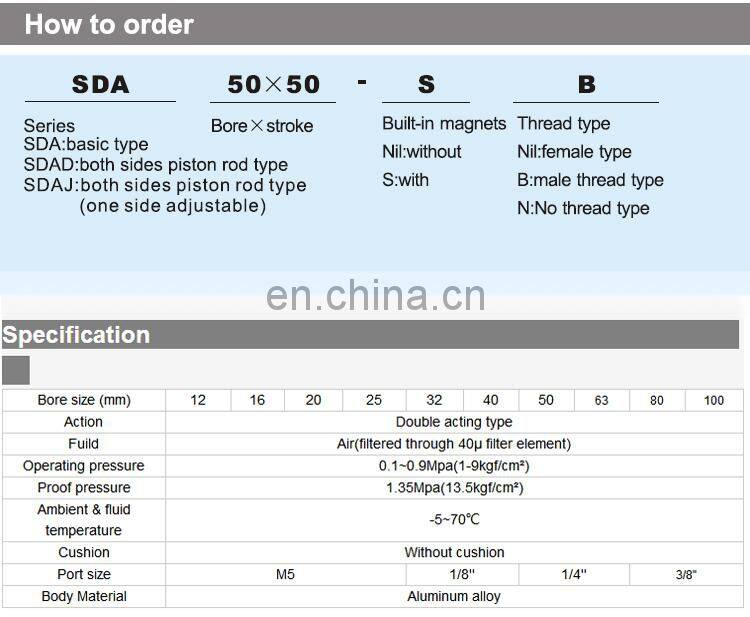

Model | SDA12 | SDA16 | SDA20 | SDA25 | SDA32 | SDA40 | SDA50 | SDA63 | |||||||
Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |||||||
Thread size | M5*0.8 | M5*0.8 | M5*0.8 | M5*0.8 | G1/8 | G1/8 | G1/4 | G1/4 | |||||||
Standard stroke(mm) | 5-50 | 5-100 | |||||||||||||
Piston port size | M3*0.5 | M3*0.5 | M4*0.7 | M5*0.8 | M6*1 | M8*1.25 | M10*1.5 | M10*1.5 | |||||||
Piston port male thread size | M5*0.8 | M5*0.8 | M6*1 | M8*1.25 | M10*1.25 | M14*1.5 | M18*1.5 | M18*1.5 | |||||||
Derived type | SDA-S:with magnet SDA-B:male thread SDAD:double rod SDAJ:double rod adjustable SSA:front spring STA:rear spring | ||||||||||||||
Operation pressure | 0.1-0.9MPa | ||||||||||||||
Company Profile
Packing & Delivery
FAQ
Q1. What is your terms of Air Source Treatment packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?Pneumatic Air Cylinder
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? Pneumatic Air Cylinder
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?Pneumatic Air Cylinder
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? Pneumatic Air Cylinder
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
If you have any other questions, please send us an enquiry,we will reply you ASAP.
