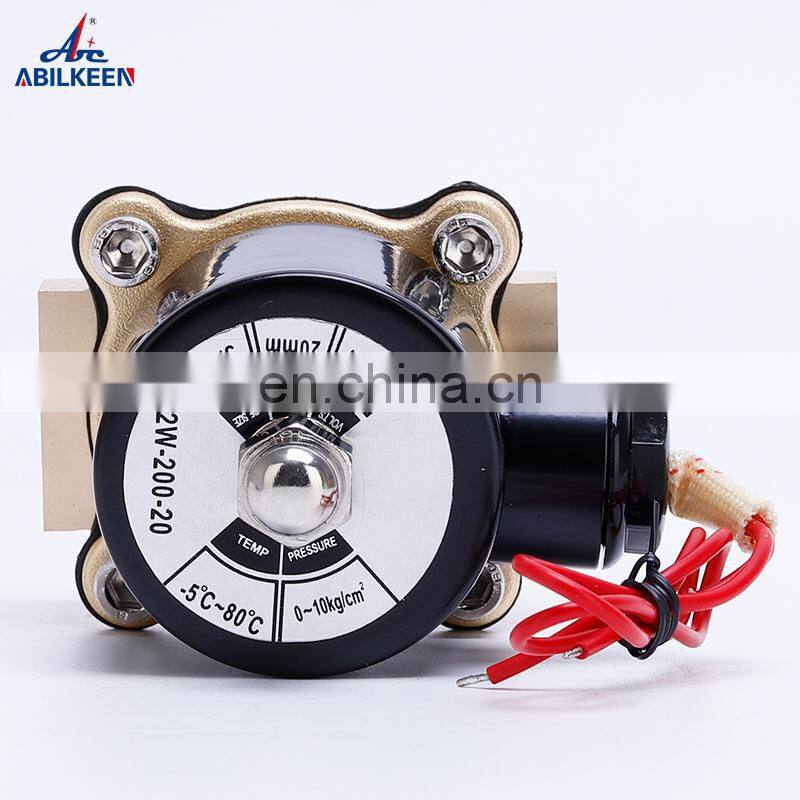

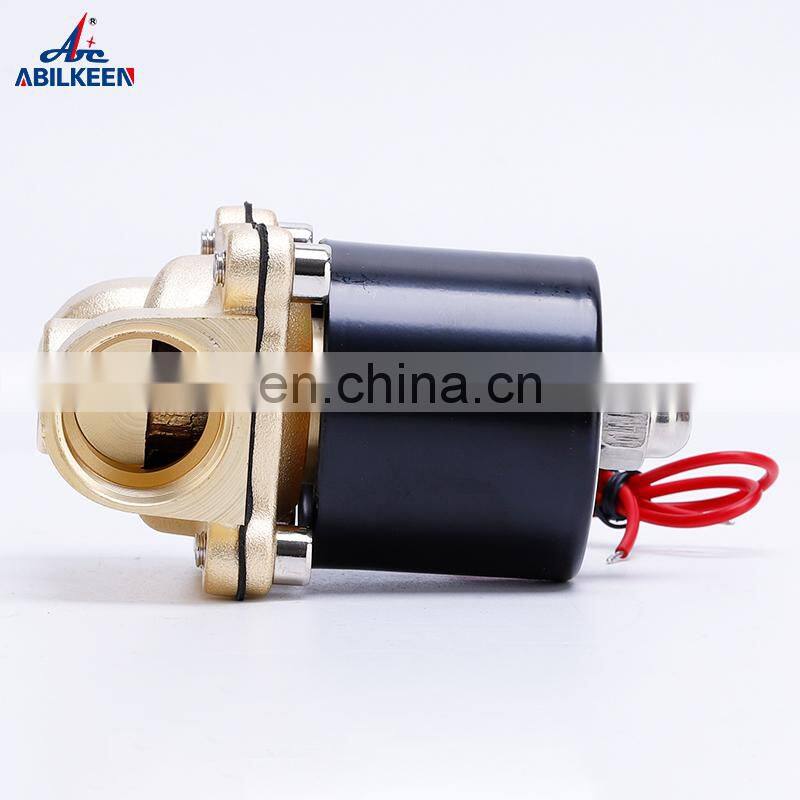

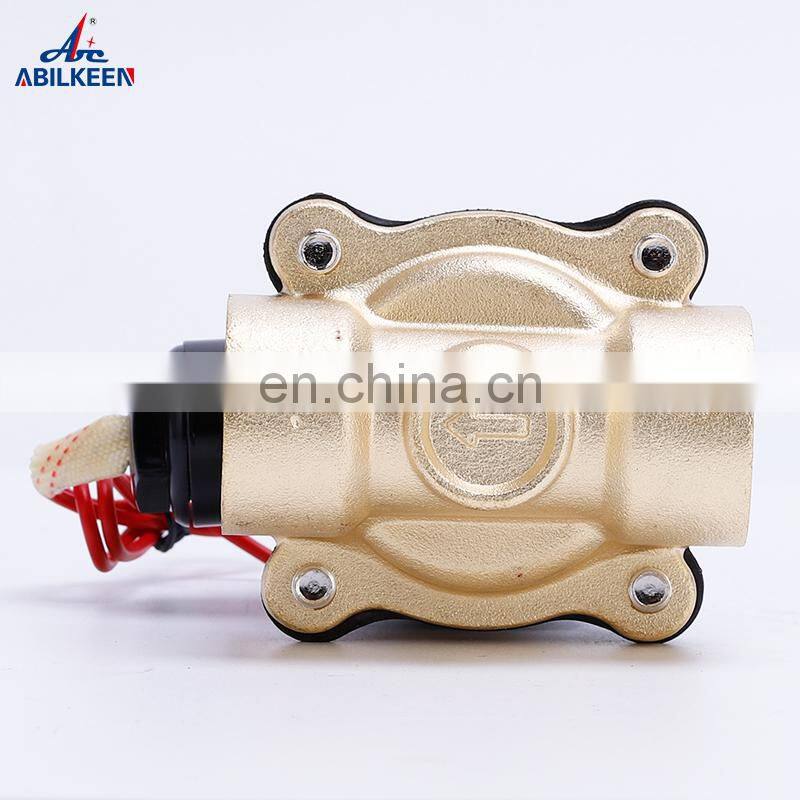

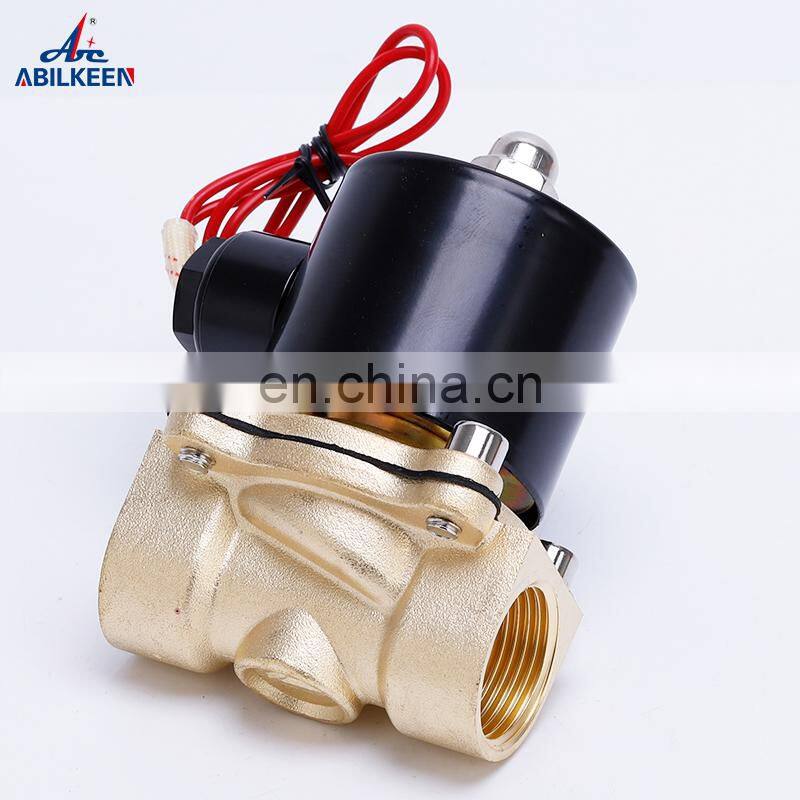

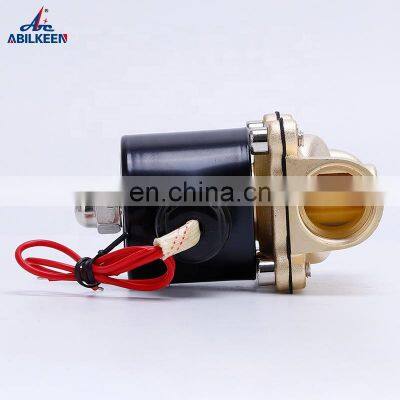

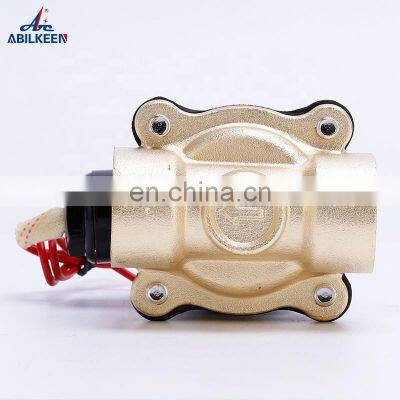

2W200-20 DC12/24V Normally Closed Type Direct Acting AC36/110/220/380V Electric Brass Solenoid Valve Price For Water
Feature:
Model description:
2W200-20
Adopting straight-action without pressure starting enlarges its applicable scopes.
Adopting plate diaphragm structure with reliable start and close lengthens the service life of the product.
Selecting encapsuled coil improves the safe application of this product under many environments
We have multiple specifications, if you need, you can click other links in the store or consult customer service staff. Thank you.
| Model |
2W025-06 |
2W025-08 |
2W040-10 |
2W160-15 |
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|
| Port size RC(PT) | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' | |
| Effective area | 2.5mm | 2.5mm | 4.0mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | |
| CV value | 0.23 | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |
| Fluid | Air,Water,oil | |||||||||
| Proof pressure | 0-10bar | |||||||||
| Type | Normally closed type | |||||||||
| Action | Internally piloted type | |||||||||
| Ambient & fluid temperature | -5~85°C | |||||||||
| Operating Pressure | Water & Oil :0-5bar ; Air:0-7bar | |||||||||
| Voltage range | ±10% | |||||||||
| Main parts material | Body | Brass | ||||||||
| Bowl | NBR | |||||||||
What model would you like? Click here to send us an enquiry,we will reply you ASAP.
Q1. What is your terms of Air Source Treatment packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
If you have any other questions, please send us an enquiry,we will reply you ASAP.
