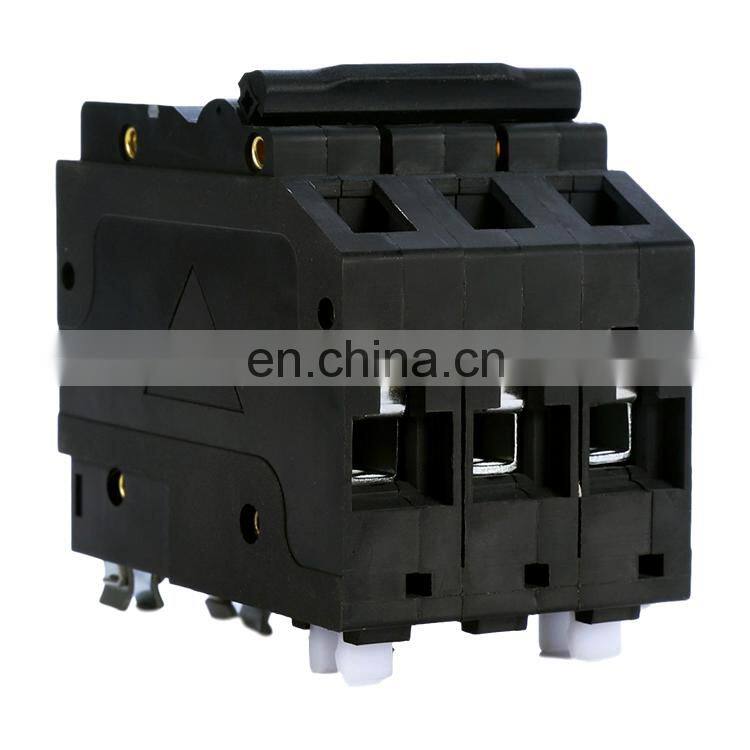

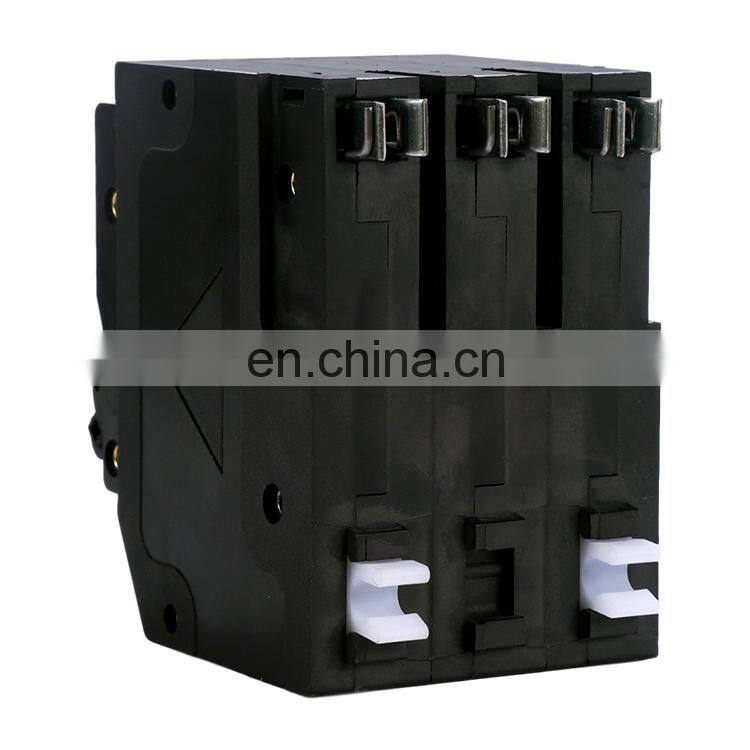

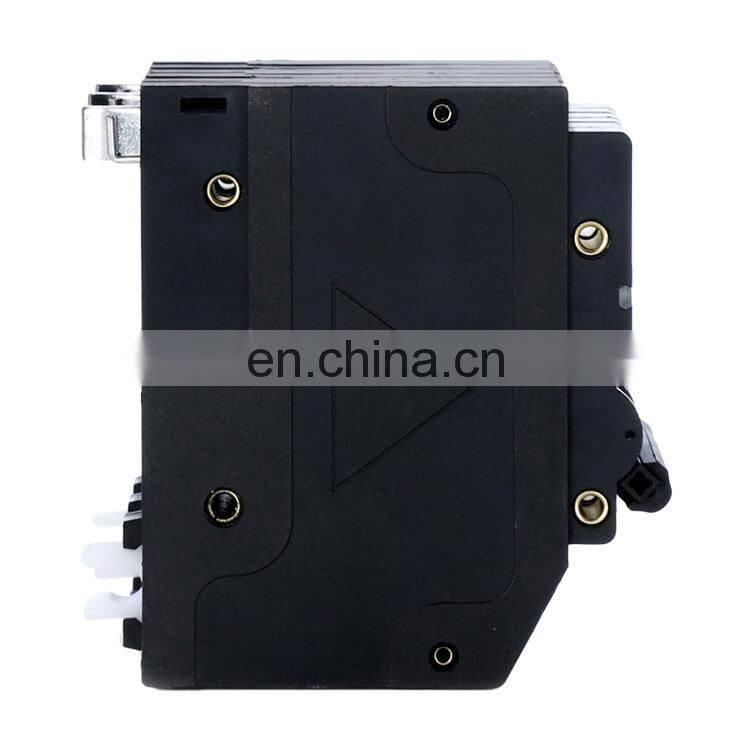

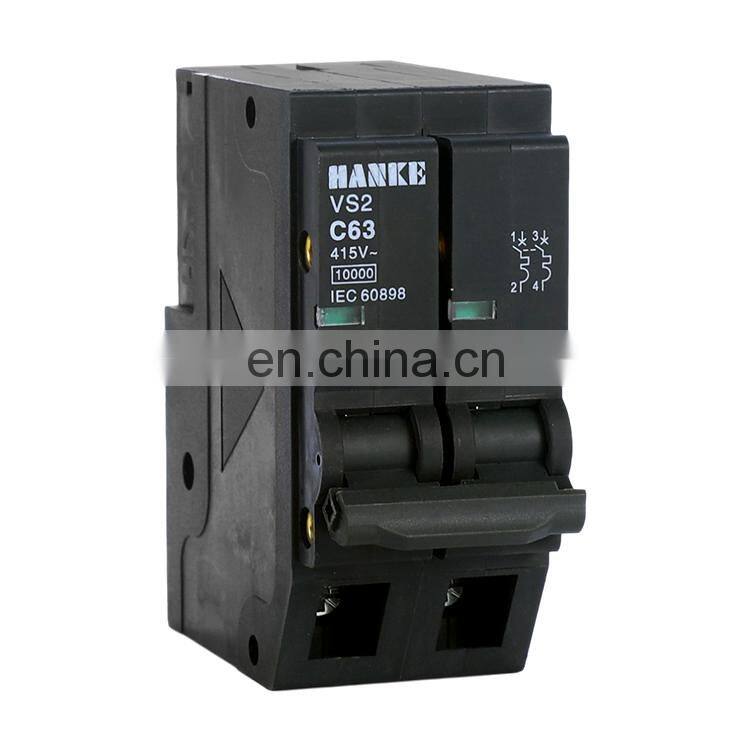

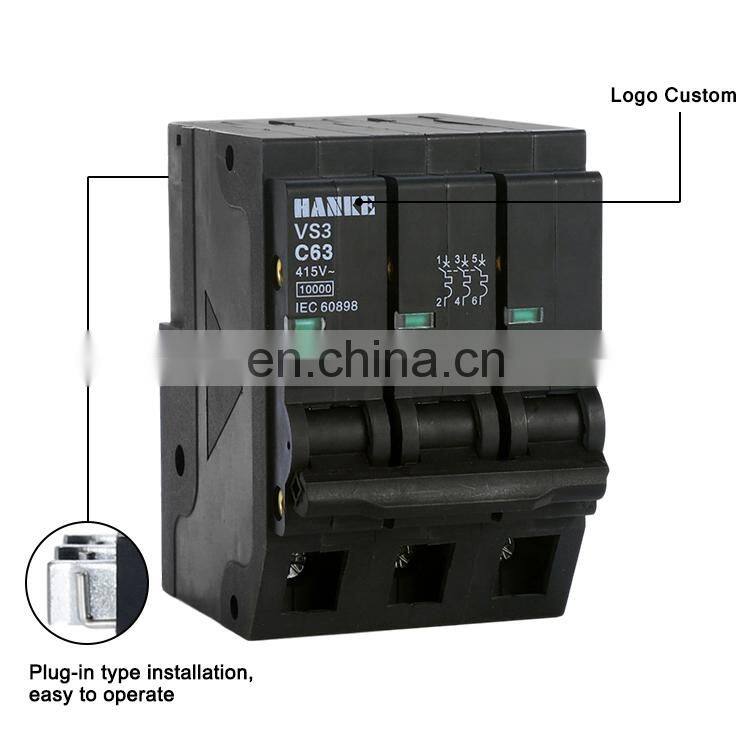

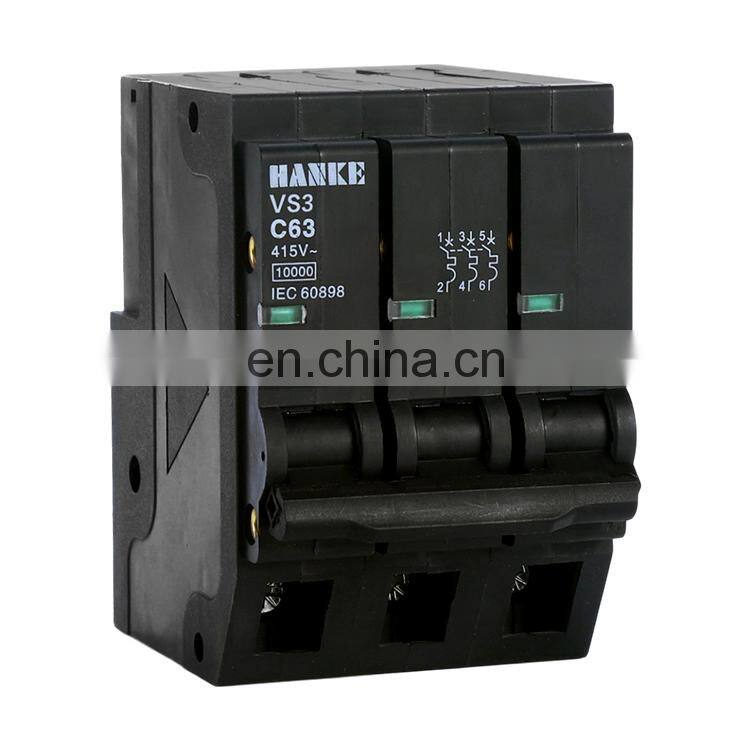

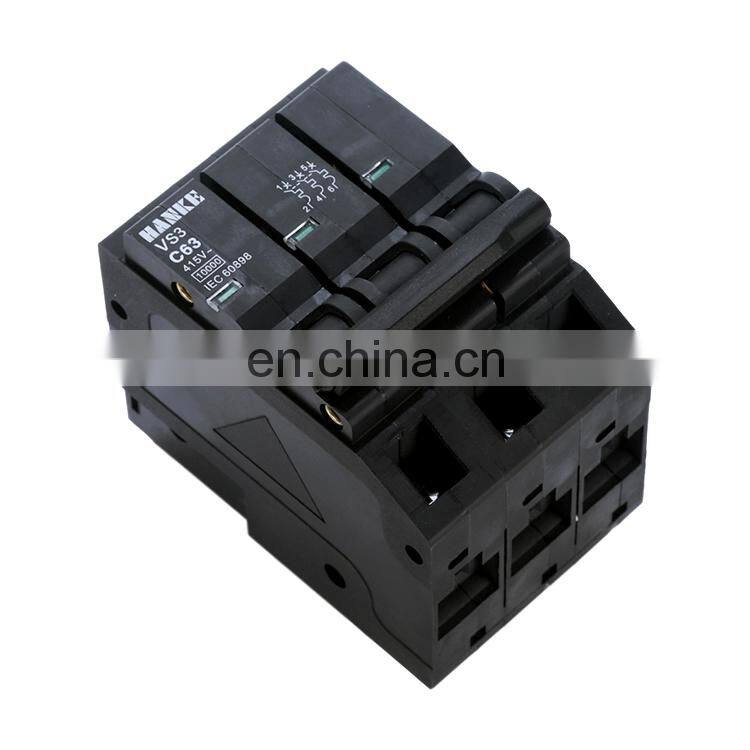

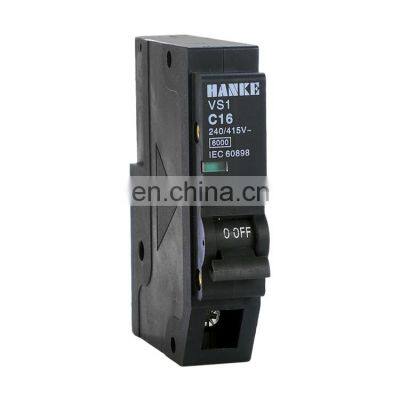

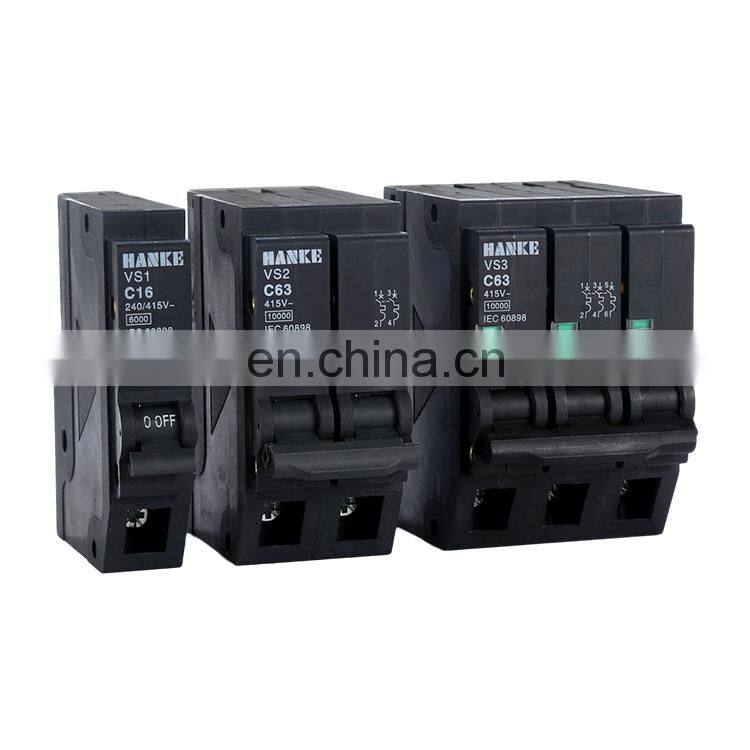

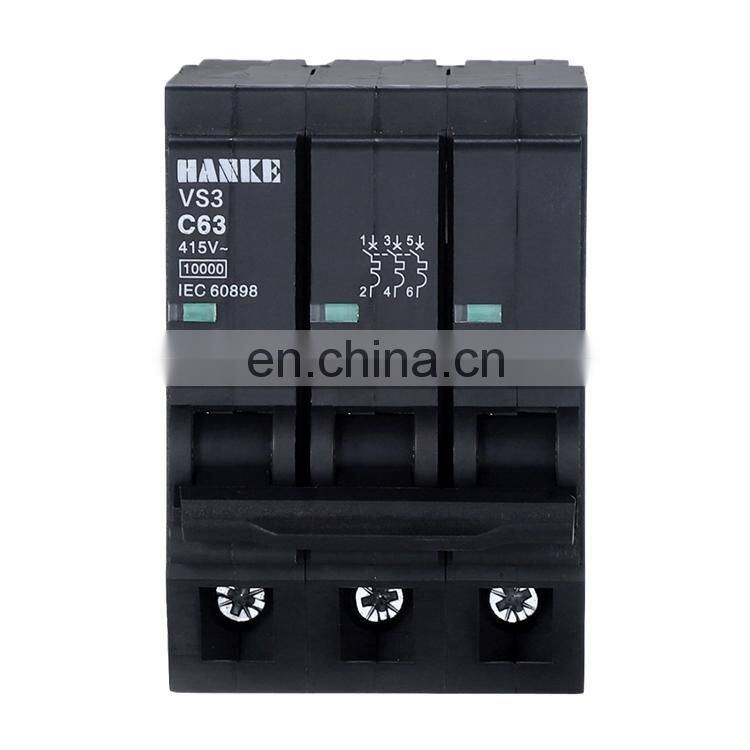

1P 2P 3P AC50Hz/60Hz 230V/400V 4.5KA VS1 Satety Breaker With Cover Series Safety Breaker
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BH-L Series 80a Mini Circuit Breaker 6A-100A AC230/400V Large Stock 1pole 2 Pole 3 Pole Mcb Electrical Circuit BreakerNegotiableMOQ: 1 -
BH-L 2P Series Mini Circuit Breaker 6A-40A 50A-60 70A-100A AC230/400 Current ProtectorNegotiableMOQ: 1
-
BH-L 1P 6A-40A 50A-60 70A-100A AC230/400 Mini Circuit BreakerNegotiableMOQ: 1
-
1P 1A-5A AC230V/400V 4.5KA D50 Plastic Case Circuit Breaker With CaseNegotiableMOQ: 1
-
NT-50 Series5A-32A/2P 50A-60A 70A-100A AC240 Circuit Breaker Made In ChinaNegotiableMOQ: 1
Products Description
1. Application
VS1 is applicable to a line of AC 50Hz/60Hz, 230V in single pole, 400V in double, three,four poles for protecting overload and short circuit, and rated current up to 63A. It can also beused for infrequent line conversion under the normal condition.The breaker is applicable tolighting distribution system in industrial enterprise, commercially district, high-rise building anddwelling house. It conforms with the standards of IEC60898.
2. Main Technical Parameter |
||||||||||
Type |
VS1 |
|||||||||
Pole |
1P |
2P,3P,4P |
||||||||
Rated current (A) |
6,10,16,20,25,32,40,50,63 |
|||||||||
Rated voltage (V) |
230 |
400 |
||||||||
Ambient temperature |
-5oC~+40oC |
|||||||||
Type of instantaneous release |
B C |
D |
B C |
D |
||||||
Rated short circuit breaking capacity Icn(kA) |
1-32A:6 |
4.5 |
1-32A:6 |
4.5 |
||||||
50-63A:4.5 |
50-63A:4.5 |
|||||||||
3. Applicable conducting wire |
||||||||||
Rated current(A) |
Norminal cross section of wire mm2 |
|||||||||
1-6A |
1 |
|||||||||
10A |
1.5 |
|||||||||
16,20A |
2.5 |
|||||||||
25A |
4 |
|||||||||
32A |
6 |
|||||||||
40,50A |
10 |
|||||||||
63A |
16 |
|||||||||
4. The over-current protection property |
||||||||||
Ambient Temperature |
Initial Status |
Test Current |
Expected Result |
Expected Result |
Note |
|||||
30±2oC |
Cold position |
1.13In |
t≥1h |
Non-release |
- |
|||||
Carried out immediatelyafter previous test |
1.45In |
t < 1h |
Release |
- |
||||||
Cold position |
2.55In |
1s < t< 60s(In≤32A) |
Release |
Current smoothly rises tospecified value within 5s |
||||||
Cold position |
2.55In |
1s < t < 120s(In>32A) |
Release |
|||||||
-5~+40oC |
Cold position |
3In |
t≤0.1s |
Non-release |
Type B |
|||||
Cold position |
5In |
t < 0.1s |
Release |
Type B |
||||||
Cold position |
5In |
t≤0.1s |
Non-release |
Type C |
||||||
Cold position |
10In |
t < 0.1s |
Release |
Type C |
||||||
Cold position |
10In |
t≤0.1s |
Non-release |
Type D |
||||||
Cold position |
20In |
t < 0.1s |
Release |
Type D |
||||||
