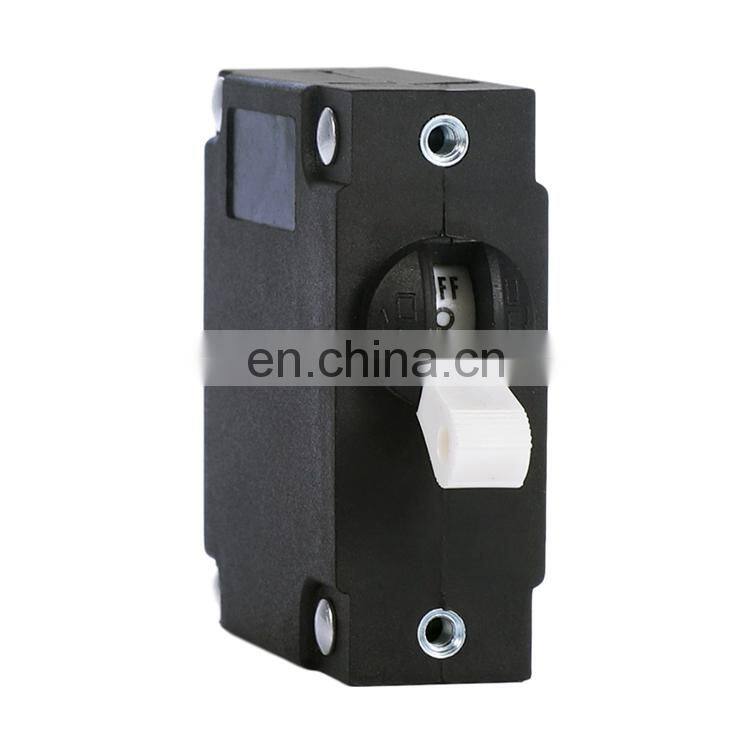

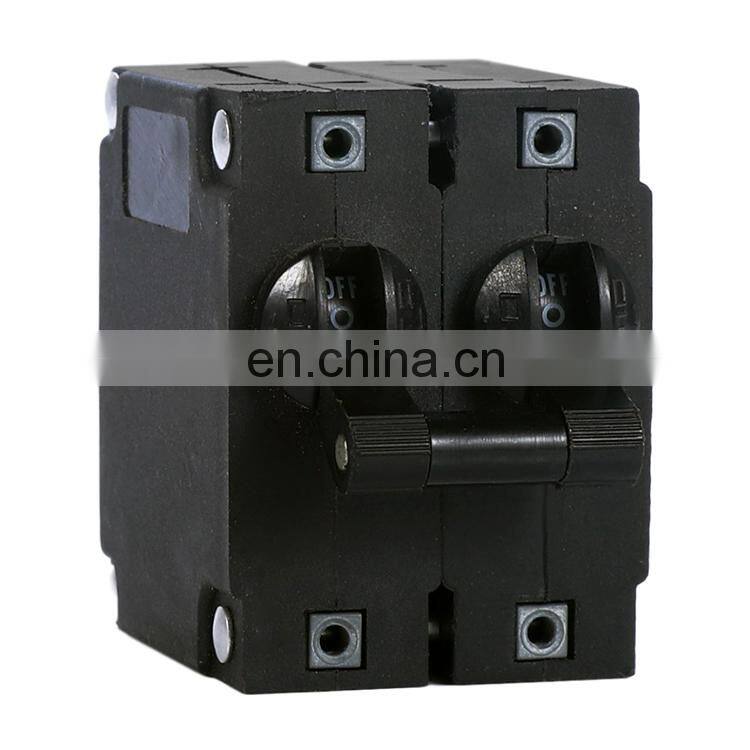

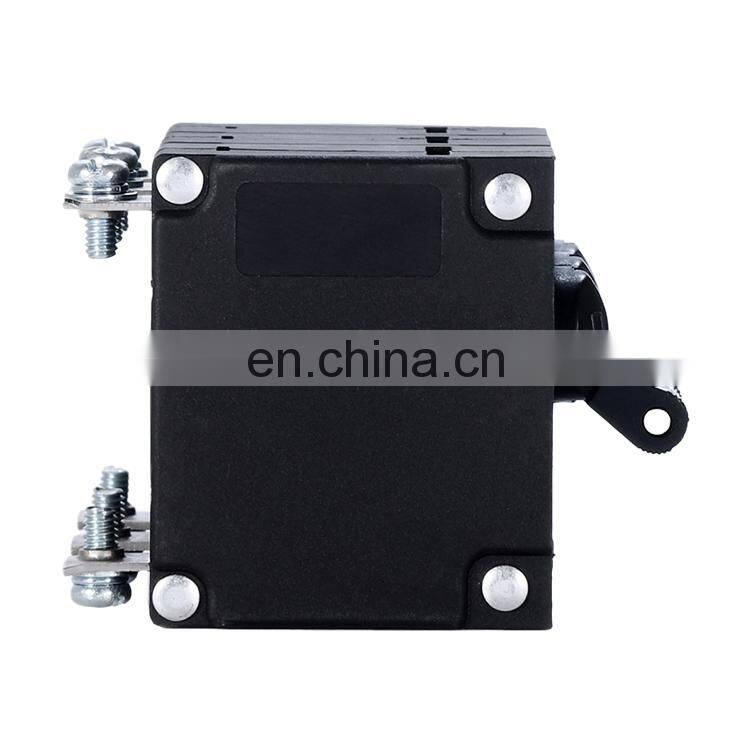

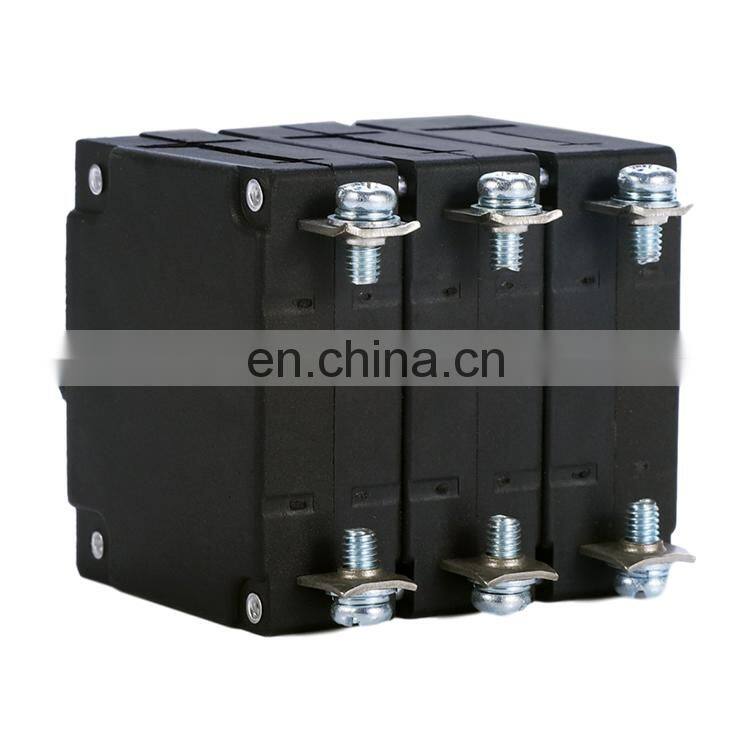

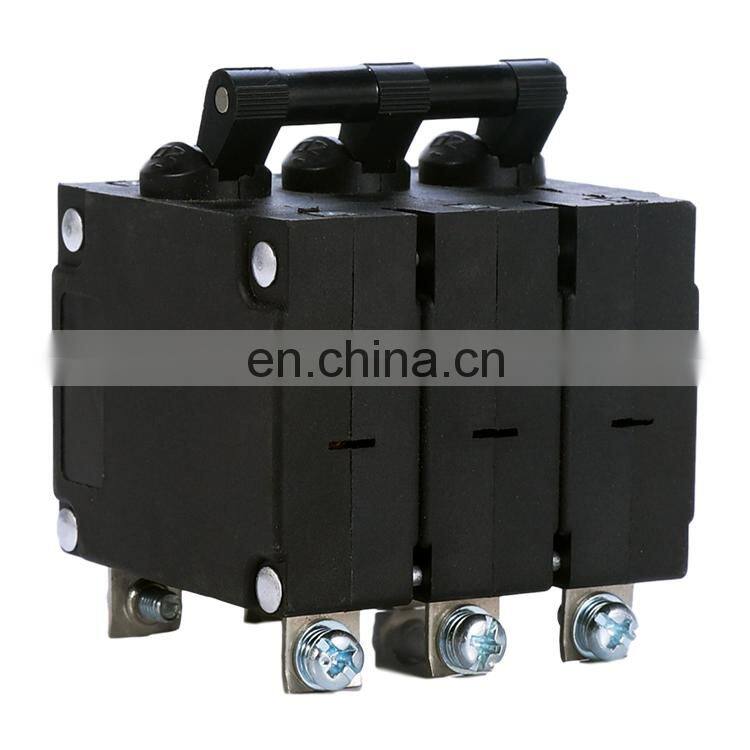

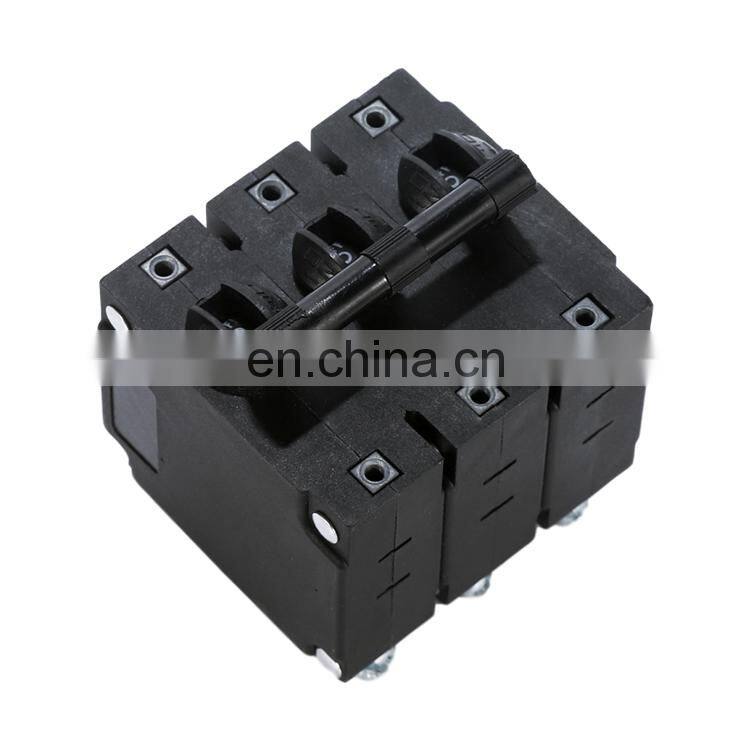

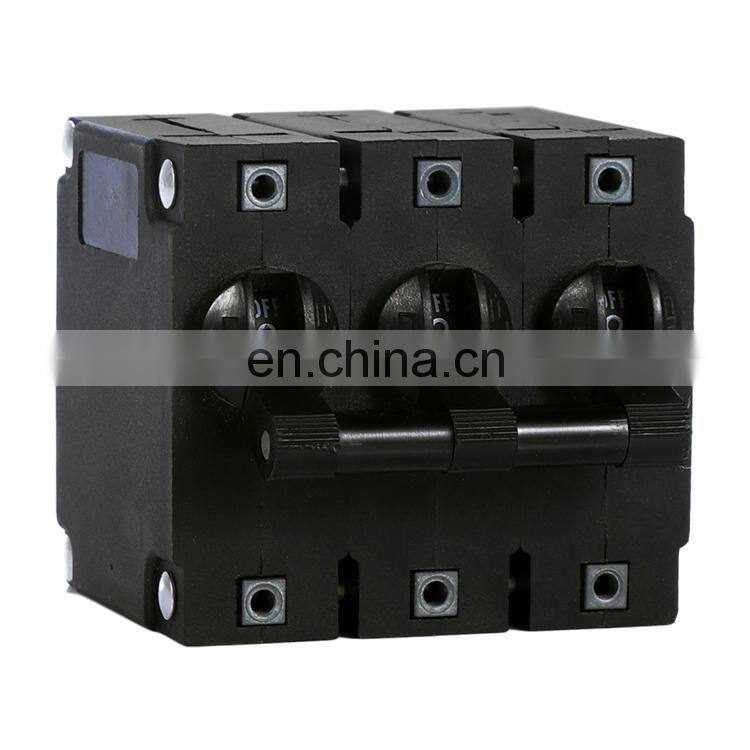

D30 Overload Current Protector Miniature dc Circuit Breaker Generator Hydraulic Magnetic Circuit Breaker Mcb
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2011
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturers 2 Pole 80A 100 Amps Miniature Smart Circuit Breaker Safety Breaker BH Bolt-on Type Mcb Micro Circuit Breaker PriceNegotiableMOQ: 1 -
China Manufacturer Cheap Mini Circuit Breaker Factory Supply BH Series Bolt on Type Safety Breaker 2 Pole 30a/60a/100ANegotiableMOQ: 1
-
New Style Multiple Buy Circuit Breaker Top Selling Plug-in Type Installation MCBNegotiableMOQ: 1
-
Free Sample VS1 32a 63a Micro Circuit Breaker China Wenzhou Smart Mini Circuit Breaker Plug in Type Black Mcb PriceNegotiableMOQ: 1
-
Best China Low Price Buy Circuit Breaker Popular Hot Selling dc Circuit BreakerNegotiableMOQ: 1

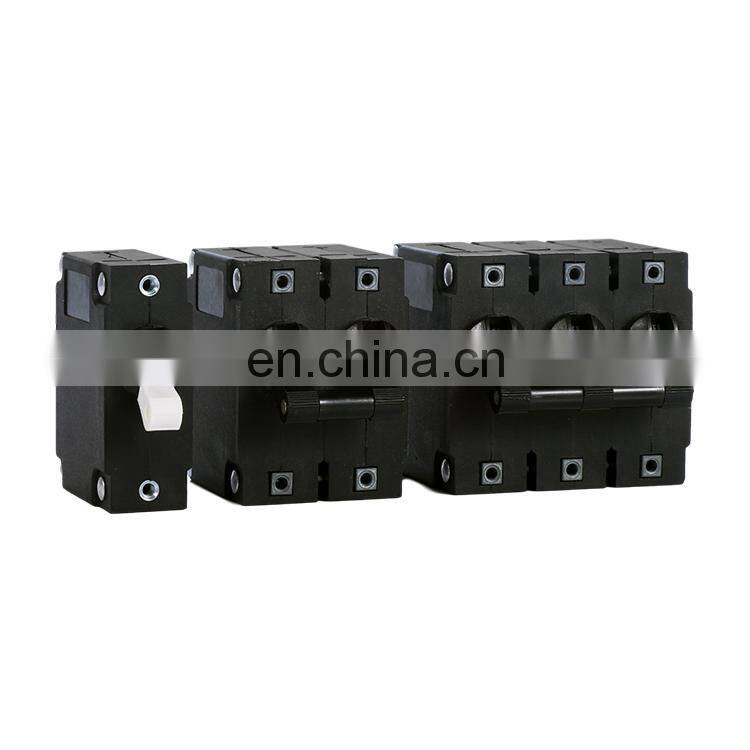

| D30Series Miniature Circuit Breaker |
|
| D30 series Circuit Breaker for equipment, the products use hydraulic magnetic technology,the latest international standards for structural design of advanced reasonable and applicable to the exchange of Pathology, AC230V/415V or DC 65V/80V/120V/125V electrical system for the overload protection circuit, short-circuit protection, but also for non-frequency fan access and the breaking use, has been widely used in communications equipment, laser equipment, railway locomotive, gasoline generators and other fields. |
| 2. General specification |
| Type | D30 | ||||
| Pole | 1P,2P,3P | ||||
| Rated current | 1A-30A | ||||
| Rated voltage | AC:230/415V DC:12V/125V | ||||
| Rated short-circuit(making and breaking) capacity | DC65V 3000A; AC 230V/415 2000A O-CO-CO | ||||
| insulation resistance | 100mΩ,500V | ||||
| Industrial frequency | 2500V/1min | ||||
| Natural life | operating 10000 times,including operate 6000 times under the specified electric current | ||||
| Able to bear vibration frequency | 10-55Hz 1.5mm | ||||
| Environment temperature | -40oC~+85oC | ||||
| Wiring mode | insert type; spiral type | ||||
| Standard | GB17701-1999 EN60934-2001 | ||||
| 3. Peculiarity of over current release |
| Power sort | 25±2oC time(s) | ||||
| 1In | 1.25In | 1.5In | 4In | 6In | |
| AC | unwork | 10s-120s | 6s-60s | 0.2s-3s | 0.02s-2s |
| DC | unwork | 2s-60s | 1.8s-30s | 0.15s-2s | 0.04s-1s |

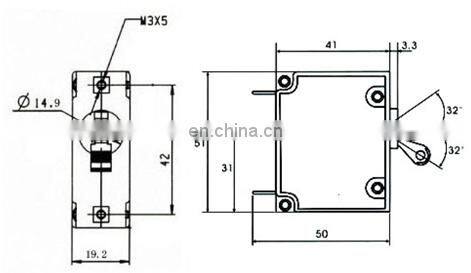

| 4. Dimension |
Q1: Are you a circuit breaker factory or a circuit breaker from a trading company?
A1: We are a factory of circuit breaker.
Q2: Can samples be provided for free?
A2: Samples can be provided, but the sample cost should be paid by you. Sample fees will be refunded after further ordering.
Q3: Do you accept customized orders?
A3: Yes. We can provide OEM, ODM services.
A4: We accept TT, 30% deposit and 70% balance before give delivery.
Q5: When is the delivery time?
A5: It usually takes 15-25 days to confirm payment after LY, but the specific time should be based on the order quantity.
Q6: Tell me the standard of package?
A6: Export standard package or special package according to customer requirement.
