ZBTBB 6~ 10kV Column Type (line) High Voltage Reactive Power Automatic Compensation Device
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1994
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Variable Series Compensation Device for 10kV Line is Available From StockNegotiableMOQ: 1 -
Factory Direct Customized ZBDVR Voltage Equipment Terminal Low Voltage Control DeviceNegotiableMOQ: 1
-
Factory Direct Customized Voltage Stabilizer ZBDVR Voltage Equipment Terminal Low Voltage Control DeviceNegotiableMOQ: 1
-
High Quality Variable Series Compensation Device for 10kV Line is Available From StockNegotiableMOQ: 1
-
China's Special Supply ZBTBB 6-10 KV High Pressure Automatic Compensation DeviceNegotiableMOQ: 1
Photos of Details and workshop
The picture is the workshop photo of the company, the company is determined to high standard and efficient,
customer-driven,technological innovation, quality and quantity.
customer-driven,technological innovation, quality and quantity.

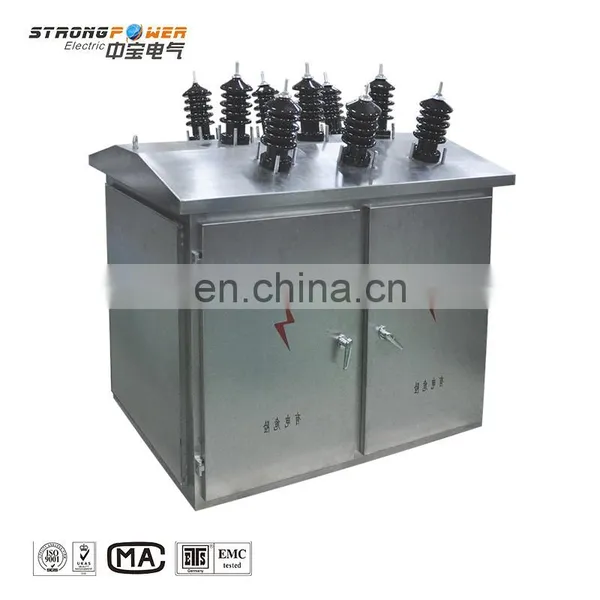

Compensating device on high pressure column
ZBTBB line column reactive power automatic compensation device is mainly used in 10kV (or) 6kV distribution line or the client end, installed on the overhead line pole, as to improve the power factor, reduce the line loss, save energy, improve the quality of voltage.
Product advantage
Adopt non-access type current transformer, no need to break the line during installation, easy installation and maintenance
The device has a liquid crystal display, with man-machine interface, display line voltage, current, reactive power, power factor and other parameters.RS-485 or RS232 and wireless transmission two communication interfaces;
The capacitor switching switch uses a special vacuum switch with a permanent magnet mechanism, which has flexible and reliable action, long service life, and can be operated frequently with the number of action ≥ 100,000 times.
The device has a liquid crystal display, with man-machine interface, display line voltage, current, reactive power, power factor and other parameters.RS-485 or RS232 and wireless transmission two communication interfaces;
The capacitor switching switch uses a special vacuum switch with a permanent magnet mechanism, which has flexible and reliable action, long service life, and can be operated frequently with the number of action ≥ 100,000 times.
Various optional controller, EMC capacity can be up to four levels;Can have power distribution monitoring function, data storage up to 60 days;It can be equipped with remote data communication interface, and can realize remote monitoring and data acquisition through GPRS module.
With fault protection function, over voltage, under voltage, over current, short of the same situation to quickly remove the capacitor;
With the loss of voltage protection function, the device can prevent the capacitor from being put into power immediately after the power is cut off.
With fault protection function, over voltage, under voltage, over current, short of the same situation to quickly remove the capacitor;
With the loss of voltage protection function, the device can prevent the capacitor from being put into power immediately after the power is cut off.
Brand Name |
Strong power electic |
Model Number |
ZBTBB |
Color |
Steel color |
Product Name |
Compensating device on high column |
Rated voltage |
6-10 KV |
Product Model |
ZBTBB |
Data is stored |
60 day |
Use |
Reactive power compensation |
Mechanical life |
100000 Times |
Warranty period |
2 Years |
Application |
Metallurgy, Chemical Industry |
