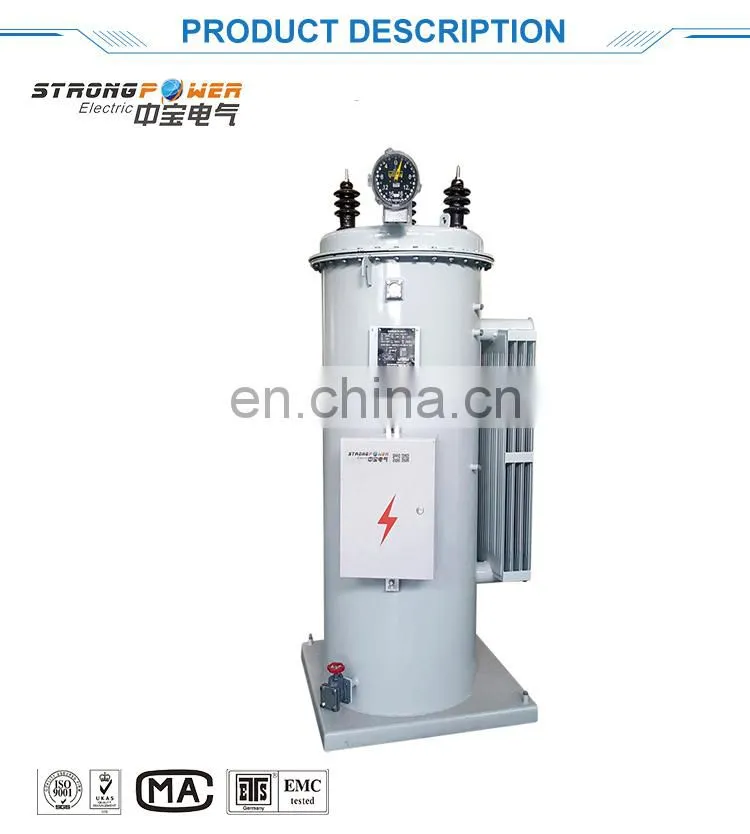

High voltage ZBSVR single-phase voltage regulator
Description
ZBSVR, feeder voltage regulator, is a single-phase autotransformer, with 32 file intelligent controller switch, and the controller to cooperate to complete 32 files, ZBSVR single-phase step voltage regulators are tap-changing autotransformers. They regulate distribution line voltages from 10% raise (boost) to 10% lower (buck) in thirty-two steps of approximately 5/8% each. Voltage ratings are available from 10000volts to 35000 volts for 60 Hz and 50 Hz systems.Internal potential winding taps and an external ratio correction transformer are provided on all ratings so that each regulator may be applied to more than one system voltage.

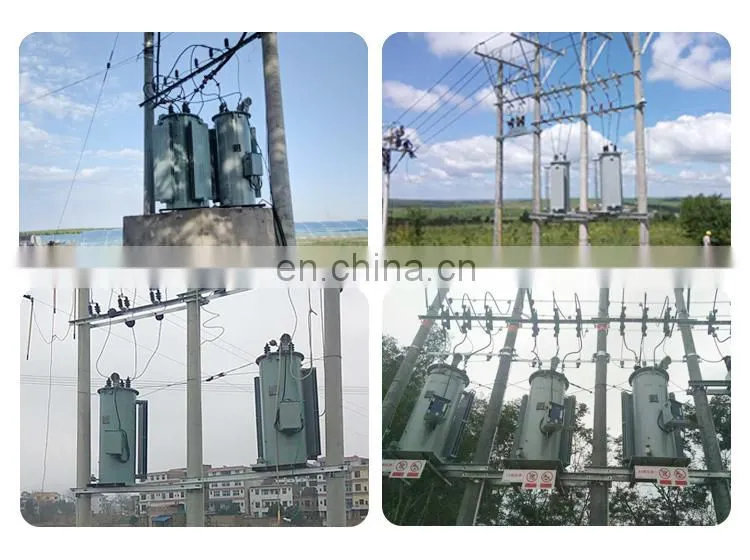

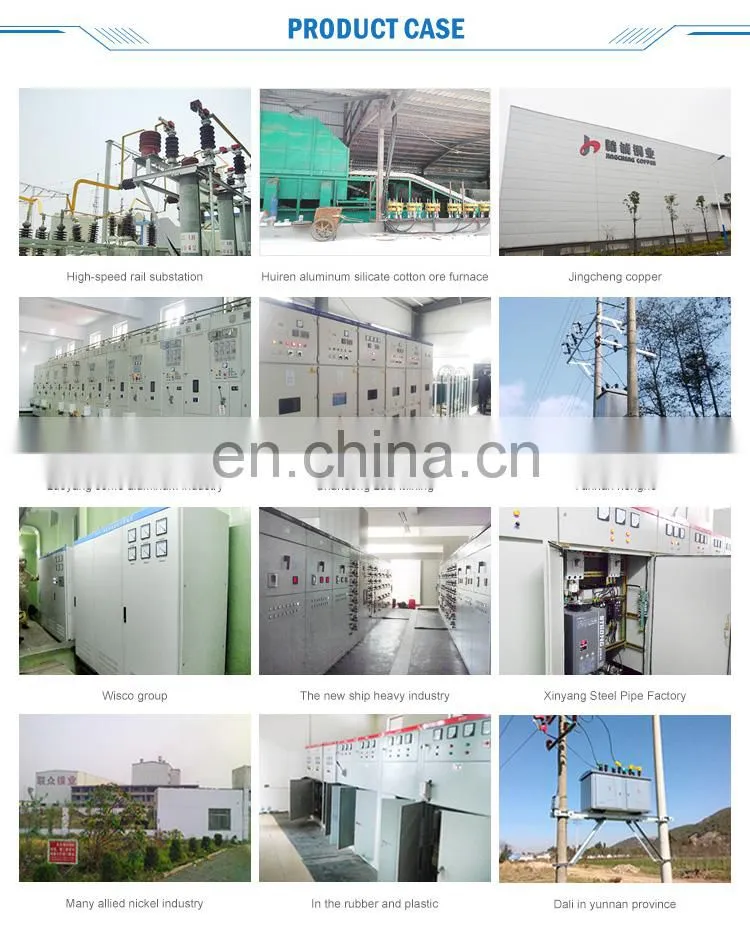

Application Site
Advantages
High accuracy: within the range of set voltage regulation, 32 steps on load automatic voltage regulator;
Long life: unique design of on load taps, to avoid the regulator arc, can ensure the operating life of nearly a million times;
Maintenance-free: fully sealed design, high protection level, excellent weatherability, long maintenance-free;
Flexibility: installed flexibly in the lines or substations, it can withdraw operation if necessary or open and close its regulator function;
Functions: it can be used directly with the SCADA system and complete distribution automation;
Low loss: single-phase design minimizes the iron loss, reducing load loss;
Economy: cost-effectively adjust the line voltage, dramatically reducing line losses and increase equipment life span.
Standard Features
SEL control box
Cutting-edge voltage regulation technology
Meets the needs of a smart grid world
Tap changer with motor and power supply
TAP CHANGER
Most advanced and fastest tap changer in the industry
Position indicator with ADD-AMP adjustment
Two laser-etched nameplates
Lifting lugs
Oil drain valve and sampling device
Upper filter press connection
Oil sight gauge
Mounting provisions for shunt arresters
High-creep bushings with clamp-type connectors
Bolt-down provisions (overhead units)
Pole-type mounting brackets (overhead units)
Substation base (substation units)
External series arrester
Automatic pressure relief device
Control cabinet with removable front panel
Ratio correction transformer
Conformally coated circuit boards
Voltage regulation of 32 steps (approximately 5/8% per steps) for a maximum of ± 10% in wye-connected banks
Advanced SEL SCADA-ready voltage regulator control
Tap changers: 32 steps in under 10 seconds
Voltage ratings are available from 2400 volts (60 kV BIL) to 34,500 volts (200 kV BIL) for 60 Hz and 50 Hz systems
Product support and expertise that is unmatched in the industry
Shunt arresters
Single-phase step voltage regulator details
VOLTAGE REGULATION
32 step of regulation in step of 5/8% for a total of 10% voltage boost to 10% voltage buck
VOLTAGE RATINGS
2400 volts (60 kV BIL) to 34,500 volts (200 kV BIL) for 60 Hz and 50 Hz systems
OPTIONAL ACCESSORIES
Control cables up to 120’ long
4-hole NEMA spade bushing connectors
Nameplates in alternate languages and metric units
Internal potential transformer to measure source-bushing voltage
multi-phase control
| Options | single-phase, three-phase |
| Applications | for overhead lines |
| Other characteristic | medium-voltage |
| Power in kVA | Min.: 300 kVA (407.89 hp) |
| Max.: 4,000 kVA (5,438.48 hp) |
