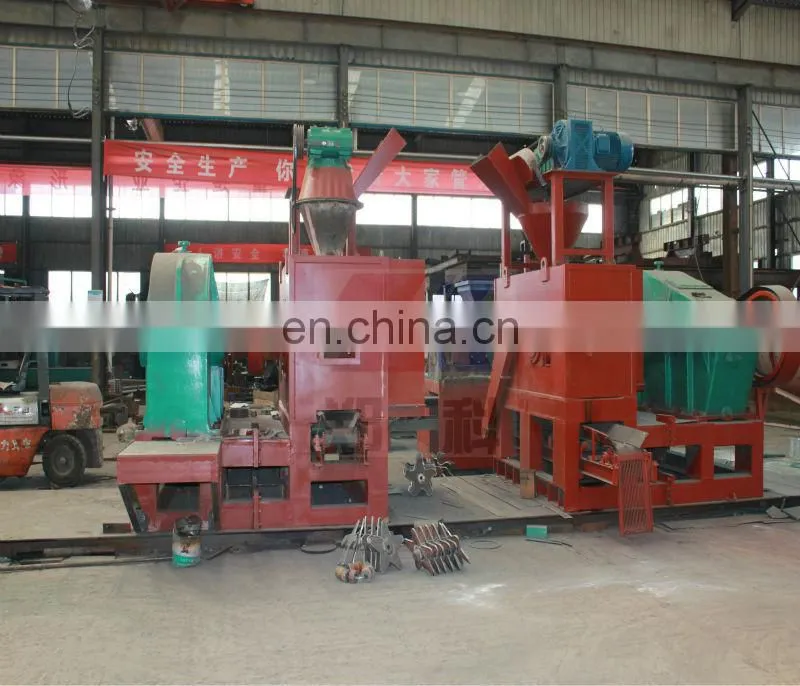

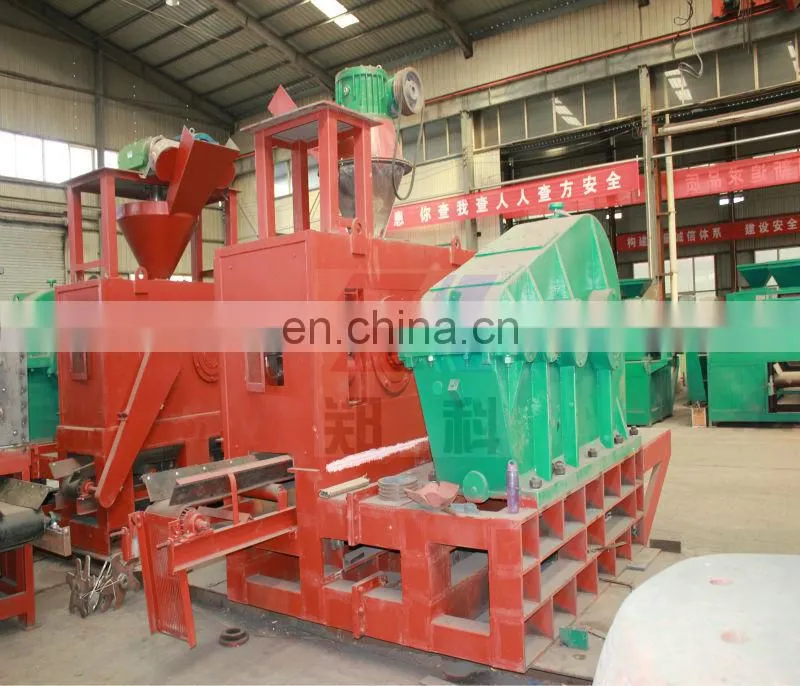

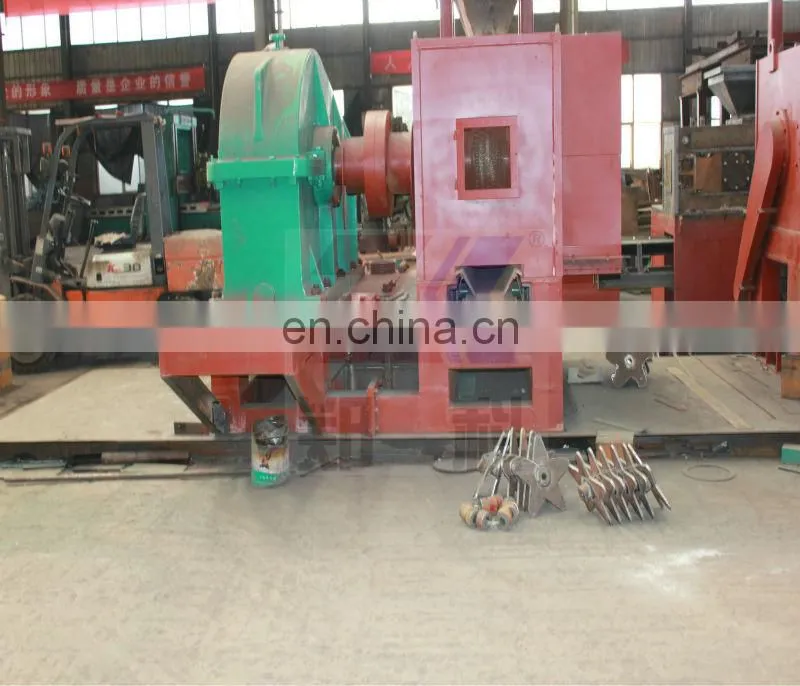

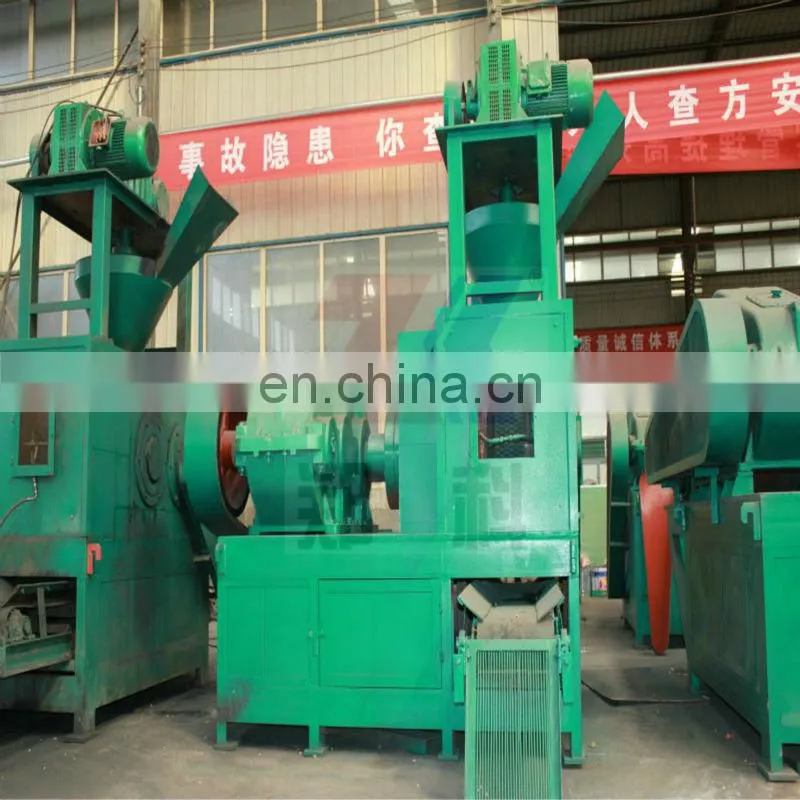

Hydraulic Briquette Machine
Skype: zkbm1998
Introduction of Hydraulic Briquette Machine:
Hydraulic Briquette Machine is used to suppress a variety of Silicon Powder, Mineral Powder, Mill Scale, Aluminum Powder, Copper Powder, Iron Ore Powder, Iron Oxide Powder, Coke, Coke Fines, Coke Dust, Coke Powder, Coal, Coal Powder, Coal Fines, Coal Dust, Coal Ash, Clay, Salt, Gypsum, Lime Powder, Slag,

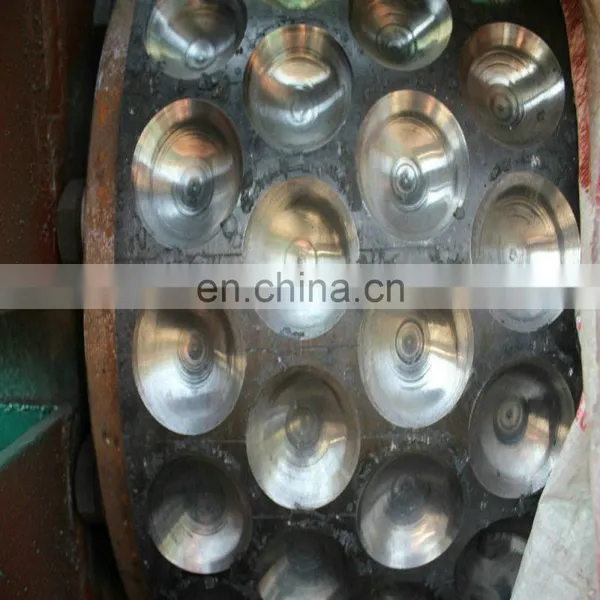

refractory and other equipment.65manganese casting roll skin. Special heat treatment hardness of up
to 58 degrees. Assembled using roll paper, can be replaced after wear.Mineral powder briquette
machine with a buffer device, can better protect the device against a hard object impact. Mineral
powder briquette machine is designed with an adjustable device so that the two bowl always roll
the ball adjustable range, never misplaced.Also it is a energy saving products. For example: dust,
mud pools, scale, slag, iron, aluminum ash, manganese ore, etc. the Mineral powder briquette
machine molding materials, energy saving, easy to transport,improve the utilization of waste materials ,
with good economic and social benefits.
Working Principle of Hydraulic Briquette Machine:
Material through vbelt, to gear reducer,the speed reducer by the coupling to the driving shaft,a pair
of open gear,ensure two roller shaft synchronous (constant velocity reversed) in which the passive
roller by the piston hydraulic cylinder to (constant pressure by oblique iron to withstand), the hydraulic
circuit and hydraulic control valve and the accumulator can guarantee the system pressure,the material
evenly into the molding machine hopper from the storage bin quantitative equipment,by adjusting the
hopper on the regulation of the gate,the material evenly into the rolls, constant velocity reverse
operation of roller unit forming pressure compressed material from small to large, in roll center line
pressing force reaches the maximum value,the material through the center line,molding pressure rapidly
becomes small make the material into ball.
Main Technical Paramaters
Model |
Roll Diameter (MM) |
Capacity (T/H) |
Powder (KW) |
ZKBM 290 |
290 |
1-3 |
5.5 |
ZKBM 360 |
360 |
4-6 |
11-15 |
ZKBM 430 |
430 |
6-8 |
18.5 |
ZKBM 500 |
500 |
7-9 |
18.5-55 |
ZKBM 500H |
500 |
7-9 |
20.7-57.2 |
ZKBM 650 |
650 |
10-15 |
37-45 |
ZKBM 650H |
650 |
10-15 |
39.2-47.2 |
ZKBM 750 |
750 |
15-20 |
75-110 |
ZKBM 750H |
750 |
15-20 |
78-113 |
ZKBM 850 |
850 |
20-25 |
90-110 |
ZKBM 850H |
850 |
20-25 |
93-113 |
ZKBM 1000 |
1000 |
25-30 |
90-132 |
ZKBM 1000H |
1000 |
25-30 |
93-135 |
