Bolted type strain clamps
Material：High strength aluminum alloy by coasting
Products property：NLL is suitable for aerial line up to 36kv,fixing stranded aluminum wire, steel-cored aluminum strand on the strain pole, Or aerial insulated aluminum conductor， smooth surface makes a long service life. Easy installation ，no waste of electric energy.

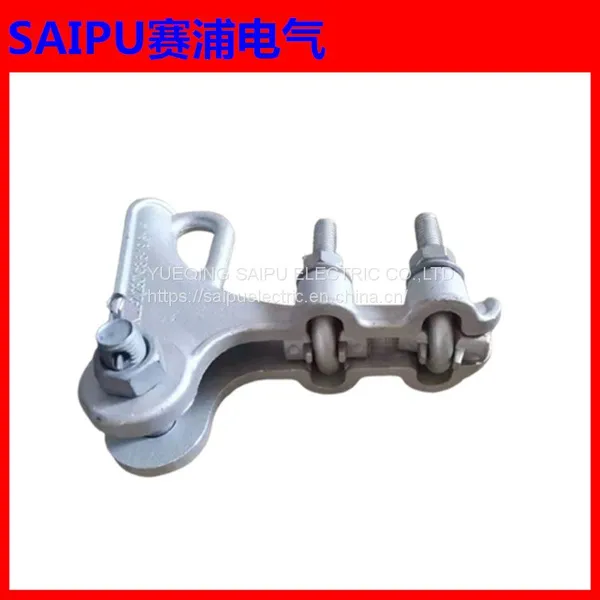

Overhead Line Fittings Aluminum Alloy NLL U Bolts Type High Tension Cable Strain Clamps for Transmission
STRAIN CLAMP BOLT TYPE
Modle:NLL-1
Applicable Conductor(mm²):5~10
U bolt:2
Specified Failure Load(kN):40
Aluminum Alloy Strain Clamp(Bolt type)is suitable for aerial line up to 10 kv,fixing aluminium wire or steel core aluminum wire on the strain pole,aerial insulation aluminium conductor.
Each U - shaped bolt is fastened to a single pressing block to ensure uniform contact pressure.
Type |
Applicable |
U bolt |
Specified Failure |
|
Quantity |
Diameter(mm) |
|||
NLL-1 |
5-10 |
2 |
12 |
40 |
NLL-2 |
10.1-14 |
2 |
12 |
40 |
NLL-3 |
14.1-18 |
3 |
14 |
70 |
NLL-4 |
18.1-23 |
3 |
14 |
90 |
NLL-4L |
12.48-21.66 |
4 |
16 |
90 |
NLL-5L |
23-29 |
3 |
16 |
90 |
NLL-6 |
25.6-32.67 |
5 |
16 |
100 |
The clamp body and keepers are malleable iron, the closed-pin s stainless steelwork, the other parts are steel.
