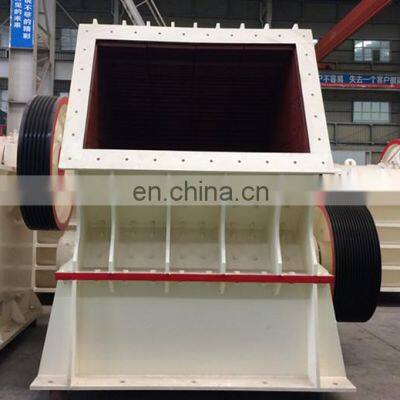

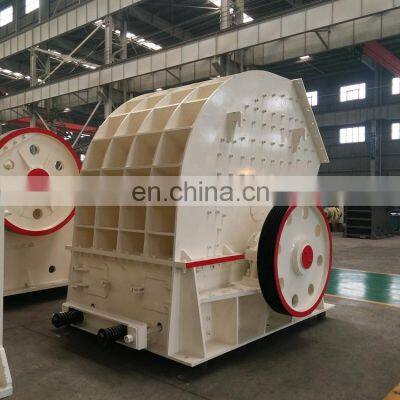

Coal gangue gypsum limestone heavy hammer crusher
- 1000 per Month
- T/T Credit Card
- High Capacity Cheap Impact Rotary Crusher, Portable Crusher Machine For Sale
- Best quality Wheel bucket Sand Washer Machine Price For River Sand Washing Plant
- China High quality river stone sand maker machine, cement sand making machine with low price
- Hot sale circular vibrating screen price
- Gravel Vibrating screen, Circular vibrating sieve machine, sand stone screening machine for sale
- Crawler type mobile crushing station for stone crusher
Product Description

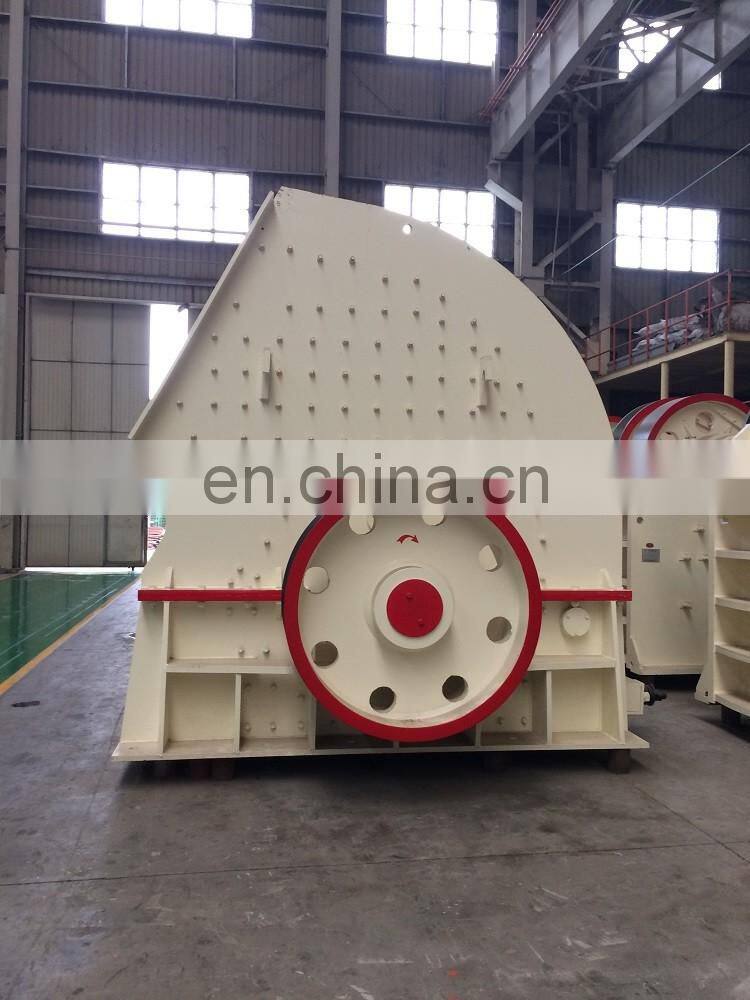

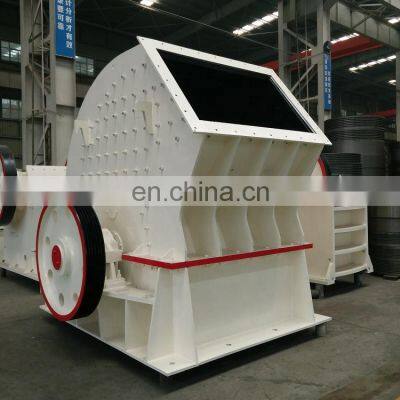

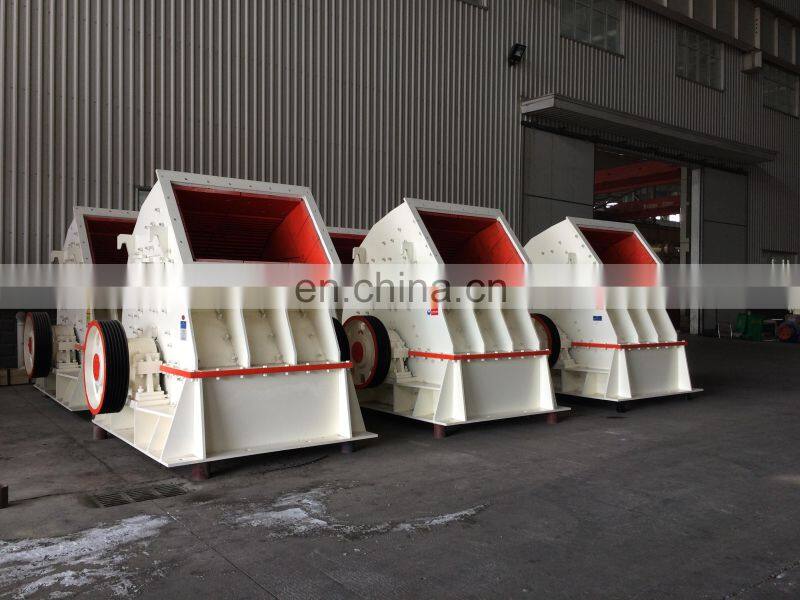

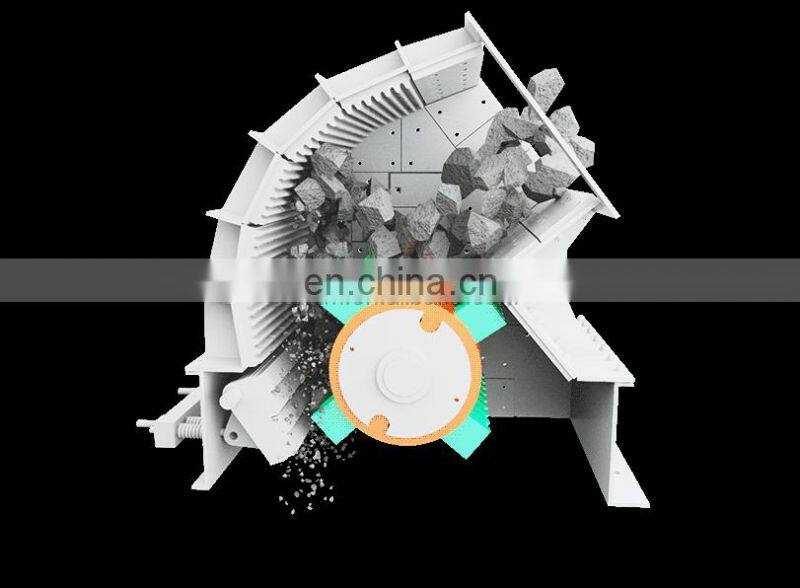

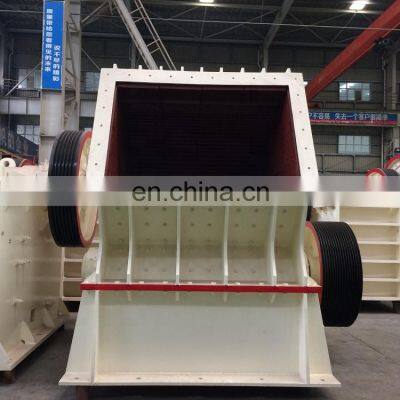

The heavy hammer crusher is a kind of hammer crusher with quite advanced technique at the moment in the industry, which can realize one-time molding and be of high efficiency, energy conservation, and environmental protection. According to the requirements, the fineness and shape of the final product can be adjusted. It is specially applied to highway, construction, mining, metallurgy, building material, etc. It is applied to crush limestone and the medium-hardness materials. It doesn't need the secondary crushing process, which can decrease the cost by about 40% and consume less energy and need less investment.
Application:
The PCZ heavy hammer crusher is applied to crush a variety of medium-hardness and crisp materials, such as limestone, coal, and so on. It is mainly used in cement, mining, coal dressing, electricity generation, chemical engineering, building material.
Properties of PCZ Heavy Hammer Crusher
1. With the PCZ heavy hammer crusher, it doesn’t need the secondary crushing process, which can decrease the cost by about 40% and it consume less energy.
2. It is specially applied to crush limestone and the medium-hardness stone materials, the compression strength of which is less than 200Mpa.
3. This machine is of reliable and safe operation.
4. With the special thin oil lubrication system, its service life can be prolonged greatly.
Technicial parameters:
Model | Rotor diameter× length (mm) |
Feed opening length× width (mm) |
Max. feeding size (mm) |
Processing capacity (t/h) | Power (kw) | Dimensions (L×W×H) (mm) |
PCZ1308 | 1300×1000 | 930×650 | ≤600 | 100-180 | 4P 132kw | 2818×2100×2391 |
PCZ1410 | 1400×1000 | 1020×750 | ≤700 | 180-230 | 4P 160/2×90kw | 2830×2100×2485 |
PCZ1610 | 1600×1000 | 1150×1000 | ≤900 | 260-350 | 4P 220-250/2×132kw | 3370×2415×2751 |
PCZ1615 | 1600×1500 | 1400×1000 | ≤900 | 380-550 | 4P 355-400/2×200kw | 3371×2925×2752 |
PCZ1716 | 1700×1600 | 1640×1300 | ≤1200 | 600-1100 | 4P 2×250kw | 3520×3000×3210 |
PCZ1720 | 1700×2000 | 1980×1300 | ≤1200 | 800-1200 | 4P 2×400kw | 3670×3390×3328 |
PCZ1920 | 1900×2000 | 1850×1600 | ≤1500 | 900-1500 | 2×500kw | 3729×3300×4451 |
PCZ2225 | 2200×2500 | 2100×2300 | ≤1700 | 1500-3200 | 1250kw | 3931×4100×4660 |
1>Pre-sale services: Enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>Sale services: Servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>After-sale services: Faithfulness
To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4> One year warranty
We provide one-year warranty to make sure your machine runs consistently. We always offering life long
services and provide spare parts for a long term,and repair main parts under right using for free in two years.

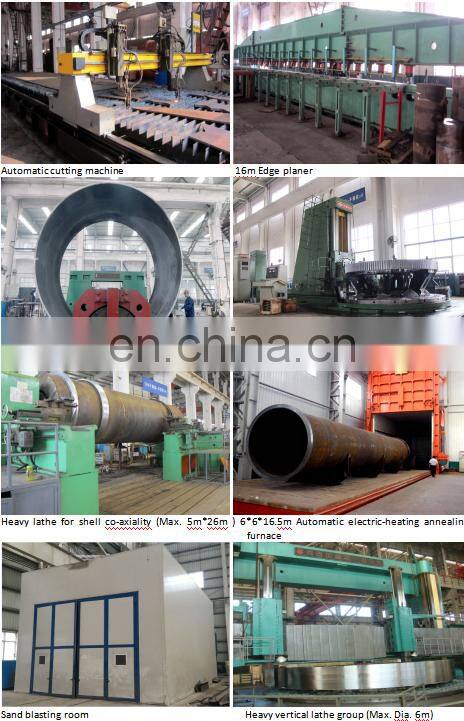

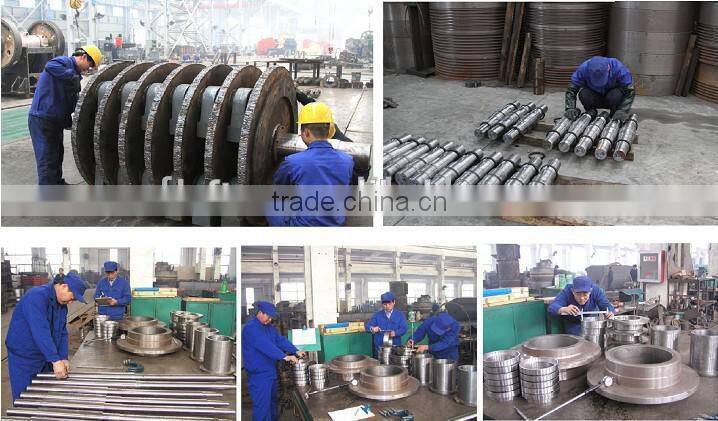

Henan Fote Heavy Machinery Co., Ltd covers an area of 100,000 square meters which includes 60,000 square meters of heavy duty workshops. We have more than 200 sets of large and medium sized metal processing equipments. The Maximum lifting capacity is 300 tons.
Quality Control
Quality is our moral category, our products are worth it's price, products are our moral standing, we firmly believe that we would be punished by the market without good quality.
