Product Description

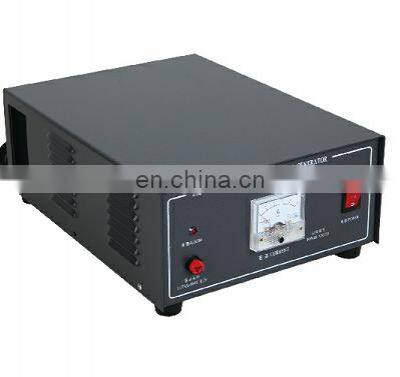

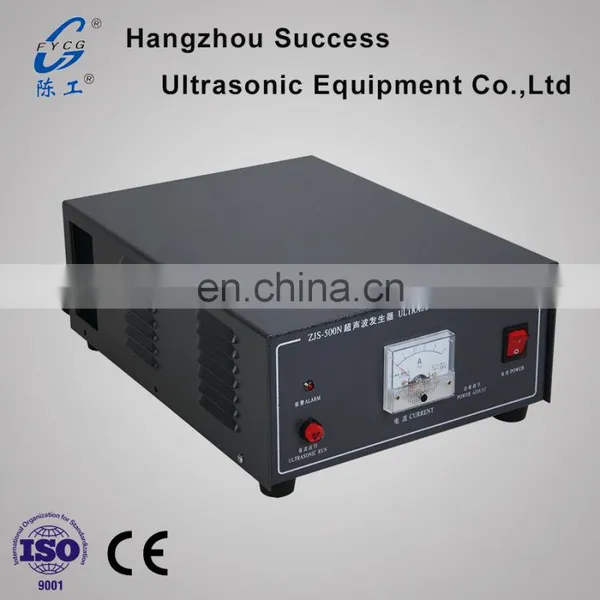

High Power Ultrasonic Generator for Plastic Welding

The Ultrasonic Generator with Ultrasonic Transducer and Horn constitute a whole Ultrasonic System,which is the most important part of Ultrasonic Plastic Welding Making Machine.

1.Principle:

The transducer will transfer high-frequency electrical energy,which is produced by Ultrasonic Generator,into high-frequency mechanical vibration,which will work on plastic products by Booster. Ten of thousand times frication each second between one plastic product and the other will be generated by high-frequency mechanical vibration. frictional heat is produced so that thermoplastic parts melt and an insoluble connection between parts is forged in a very short period of time. The melting points of both working pieces is nearly equivalent which helps to form a uniform weld area. The welded area is usually as strong as the matrix material.

2.Applied Range:
It can be connected with plastic welding machine,non-woven fabric auto-machine, 3-layer bag making machine, paper cups tube film welding machine, stationery making machine ,ziplock bag, non-woven fabric, plastic bag, photo album and name card holder, stationery, medical equipment, etc.

3.Features:
(1) Strong and stable output power.
(2) Suitable for continuous welding.
(3) Ultrasonic power can be adjusted according to size and material of workpieces.
(4) Ultrasonic Generators of Horizontal Type and Vertical Type for your selection.
(5) Size of the Ultrasonic Generator: 385mm*525mm*135mm
(6) Net Weight of the Ultrasonic Generator: 15KGS

Detailed Images

Technical Data of Ultrasonic Digital Generator for plastic welding
Type	ZJS-500N
Frequency	15~60Khz
Available Capacitance	500~3000 pF
Overall Dimension	380x350x180 mm
Weight	11 kg
Power	100~3000W
