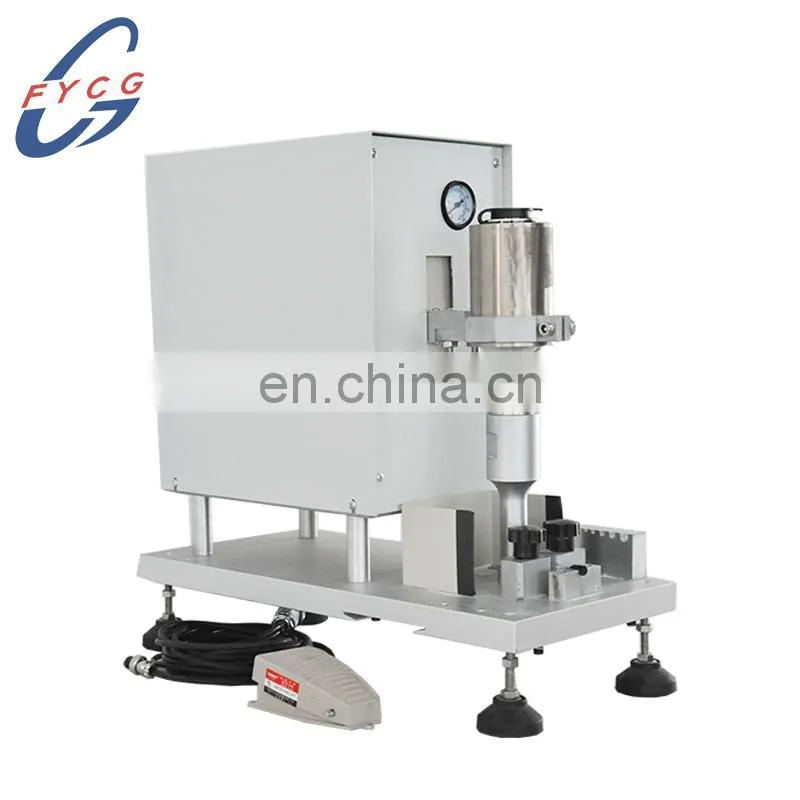

The New YPB65B-GB uses powerful pulses of Ultrasonic energy to strip the sheath from mineral insulated cable.
The ultrasonic energy transfers to the insulation on contact and de-compacts and liquefies the powder, which escapes from the end of the cable.
The result is that all the powder in the stripped section is cleanly removed leaving the conductors completely untouched.
The whole action is completed in seconds (in the case of small cables in a fraction of a second).
All cable sizes can be accommodated from 2mm (0.04”) to 30.0mm.
Product features:
-
Longitudinal Design very simple to set-up and operate
- Ability to work every kind of MI cable from Ø 2mm to Ø 30 mm
- Comfortable work position designed to assure maximum efficiency
- Equipment in conformity with ISO safety rules
- Great reliability with large use of stainless steel and titanium
- Advanced electronic Rack with high quality components
- Very fast stripping process suitable for every number of pieces
- Continuous use with automatic ultrasounds standby
- Safety foot-switch or hand-switch operated
Application Areas and Industry:
Fireproof cable and mineral insulated cable manufacturers
Fireproof cable and mineral insulated cable construction company and processing factories, such as high temperature and Thermal Meter supplier etc.
Main Index:
|
Frequency |
20kHz |
35kHz |
|
Stripping process diameter range |
2mm and above |
5mm and below |
|
Stripping length per time |
30mm |
20mm |
|
Activated By |
Manual or Feet switch |
|
|
Power consumption |
≤500 W |
≤200 W |
|
Power way |
220V 50Hz 3A |
220V 50Hz 2A |
|
Machine Size |
500×300x400mm |
800×150×200mm |
|
Machine Weight |
35kg |
25kg |
|
Power size |
520×380×150mm |
350×250×120mm |
|
Power weight |
15kg |
10kg |
Our Company:
Hangzhou Success Ultrasonic Equipment Co.,Ltd
Founded in 1995, with about 20 Years Experiences, from a small Transuder manufacture develop into a professional ultrasonic equipment manufacturer. we fousced on Design and Development of High Power Ultrasonic Products, FYCG supply ultrasonic core parts and technical support for ultrasonic complete equipment company, developing new style high-power ultrasonic applications. Our suctomers thoughout research institutions, universities, large and small enterprises. We also has a High-power Opening Ultrasonic Laboratory, has enough strength to provide superior solution.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample and it's not free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
