Product Description

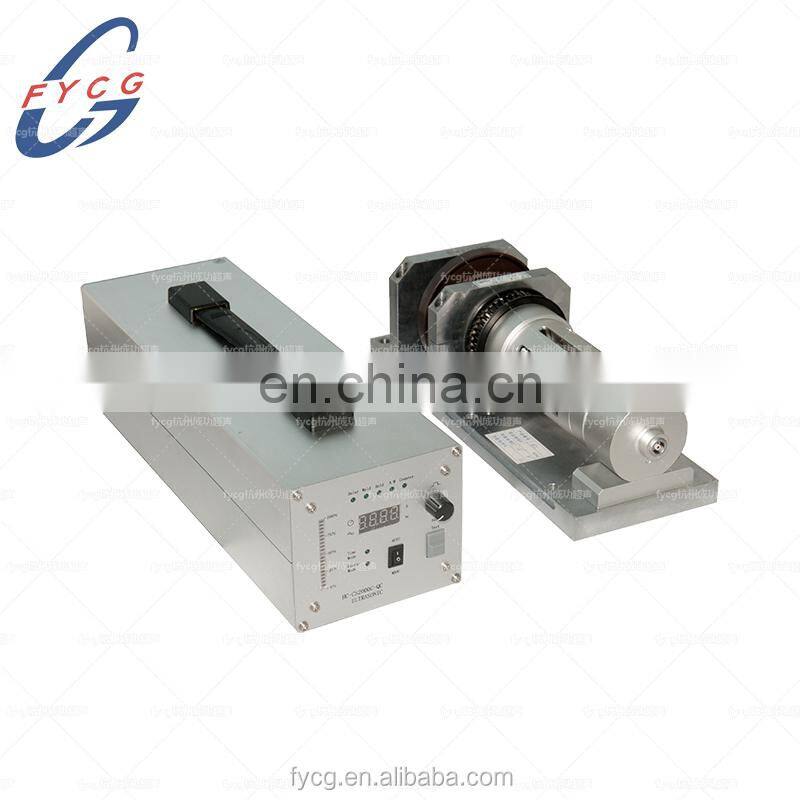

YP-F51 35Khz Ultrasonic Seamless Sewing Module
The ultrasonic rotary type vibration is used for cloths sewing and cutting, which is the newest one of technical achievements in the world. Our company closely follows up this newest foreign scientific research achievement, thus developed the ultrasonic seamless sewing core Part in China. Its the key part for ultrasonic seamless sewing machine (Also named ultrasonic radial direction sewing machine). Its our companys original creation, which thoroughly solved the common problems caused by ultrasonic vertical vibration:the ultrasonic horns moving direction and the cloths one are inconsistency and asynchrony. With the help of our ultrasonic seamless sewing core Part, the cloths sewing accuracy is greatly improved. Thus it make it possible that widely use the ultrasonic technology in garment sewing industry. The ultrasonic seamless sewing has much advantages: Fast welding speed, high strength, nice welding seam, good sealing,low energy consumption and easy operations so on. So its development trend for sewing technology.
Main Specifications of Some Typical Products(Special requirements available )
Type |
YP-F57 |
YP-F51 |
Ultrasonic Frequency |
35kHz |
35 kHz |
Max. Power |
600W |
400W |
Rotary Welding Horns Width |
12mm |
7mm |
Power Adjust Method |
File or Continuous |
|
The Horns Surface Hardness |
More than HRC56 |
|
Real-time Display |
Working Frequency and Working Current |
|
Synchronizing Wheel Specifications |
46XL Trapezoidal Tooth,Width16mm |
|
Synchronizing Belt Matched |
The Length is not more than730mm,the Width 12mm |
|
Max. Allowable Rotation Speed |
100 r/min. |
|
Install Bolt |
M8, 4 pcs |
The applications for ultrasonic seamless sewing machine is very wide. It can be used in nearly all thermoplastic clothes (namely the clothes will be softening while is heating) Comparing to the traditional sewing which uses the needlework, if uses ultrasonic seamless sewing, no need the needle and thread, whats more, high strength in sewing and welding, good sealing. Thus it s much possible, to a large degree, that it can replace the traditional sewing machine. Our company is very happy to join the team for improving sewing industry standard together.
Our Company:
Hangzhou Success Ultrasonic Equipment Co.,Ltd
Founded in 1995, with about 20 Years Experiences, from a small Transuder manufacture develop into a professional ultrasonic equipment manufacturer. we fousced on Design and Development of High Power Ultrasonic Products, FYCG supply ultrasonic core parts and technical support for ultrasonic complete equipment company, developing new style high-power ultrasonic applications. Our suctomers thoughout research institutions, universities, large and small enterprises. We also has a High-power Opening Ultrasonic Laboratory, has enough strength to provide superior solution.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample and it's not free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Add: No. 16 South Shangsong Road, Yinhu Street, Fuyang District, Hangzhou City, Zhejiang Province, China(mainland)
Contact: Carol Yu
Any questions or requirement pls feel free to contact us, we will reply you within 24 hours.
