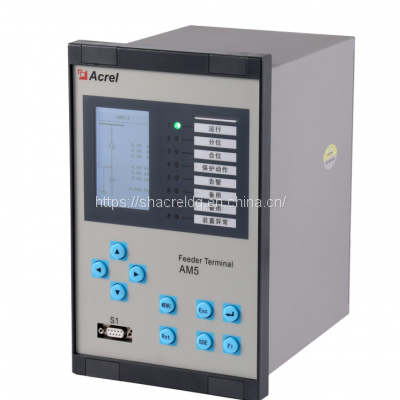

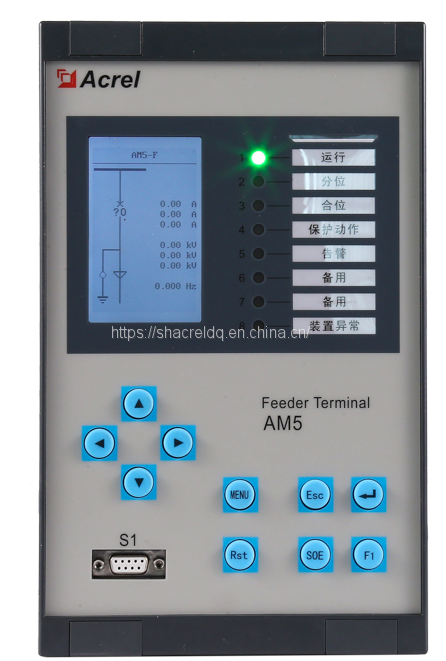

AM5 Series Protection Relay AM5-F Power Supply: AC/DC220V or AC/DC110V or DC48V

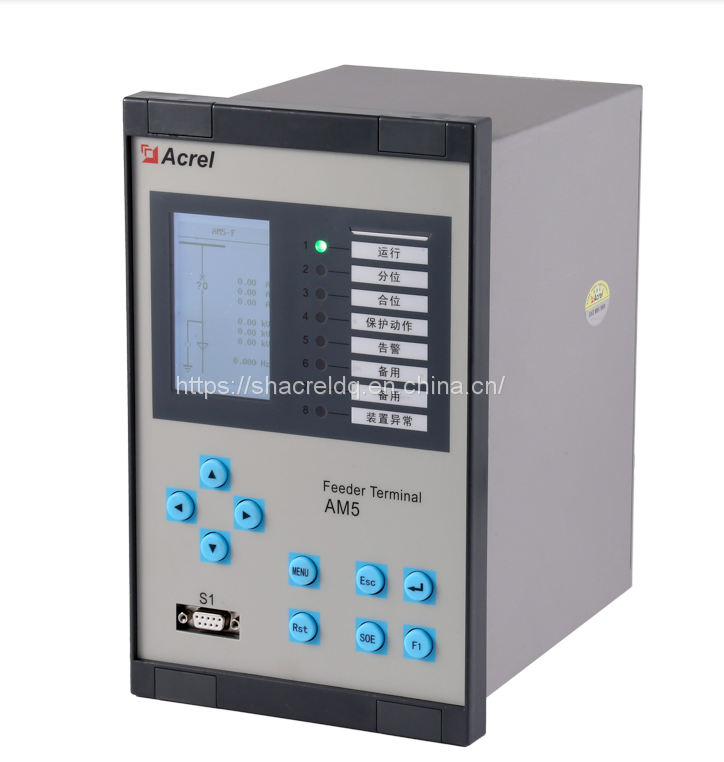

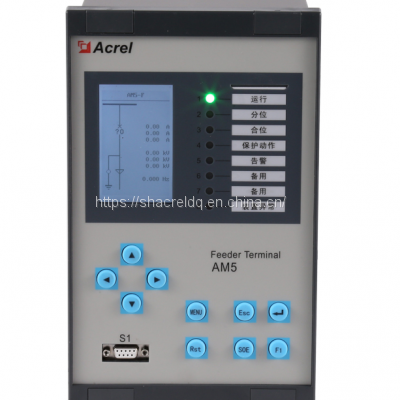

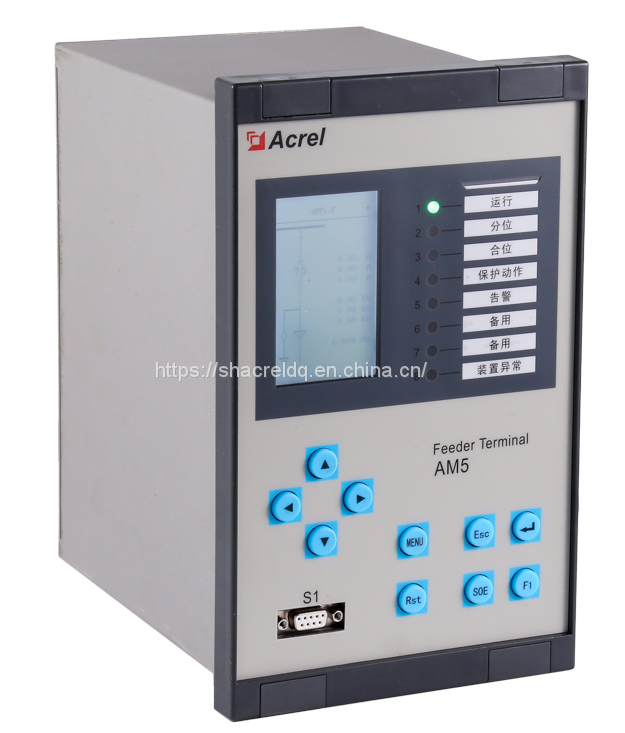

AM5 Series Protection Relay  AM5-F

▋ Product Description

      AM5 series microcomputer protection device are applicable to the user substation which the input voltage is 35kv or above. AM4 can be used to protect and control the user substation, and is be widely used to Power Industry, Water consercancy industry ,Traffic Industry, Oil industry ,Chemical industry, Coal Industry, Metallurgical Industry and so on.

▋ Products Overview

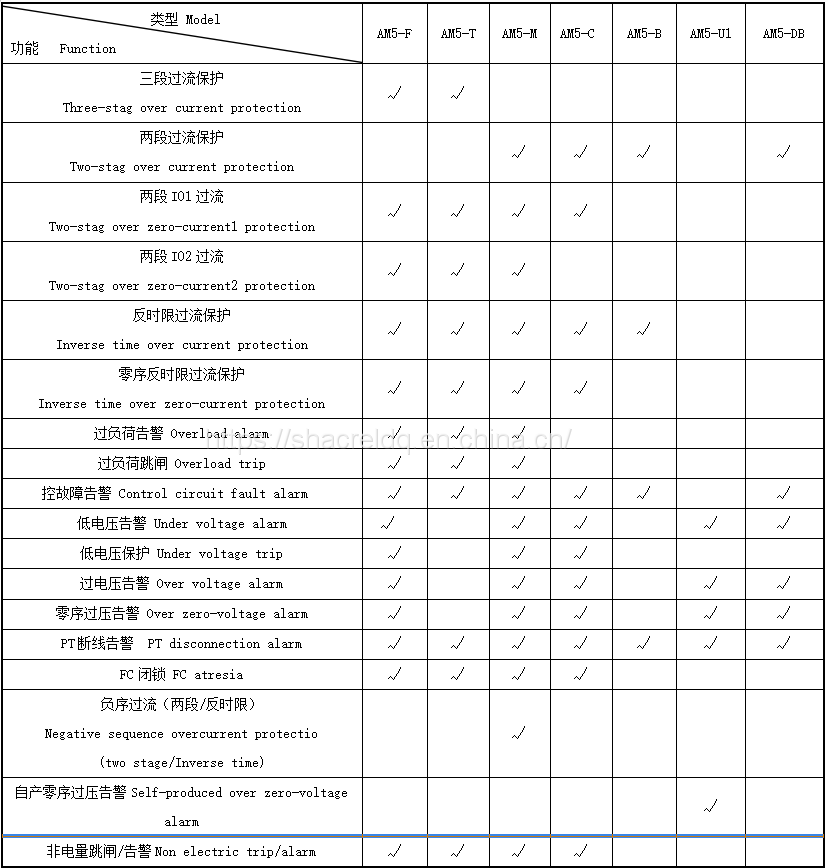

▋ Device Function

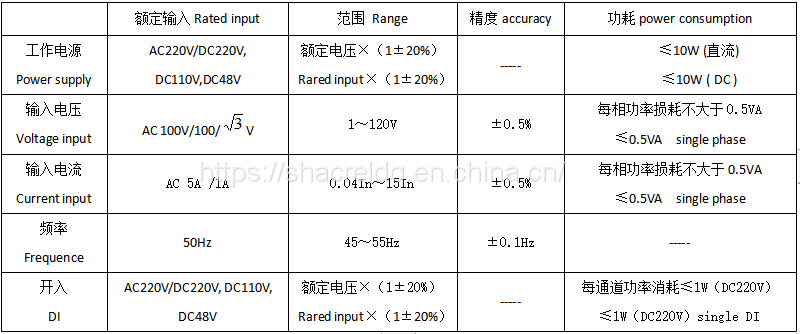

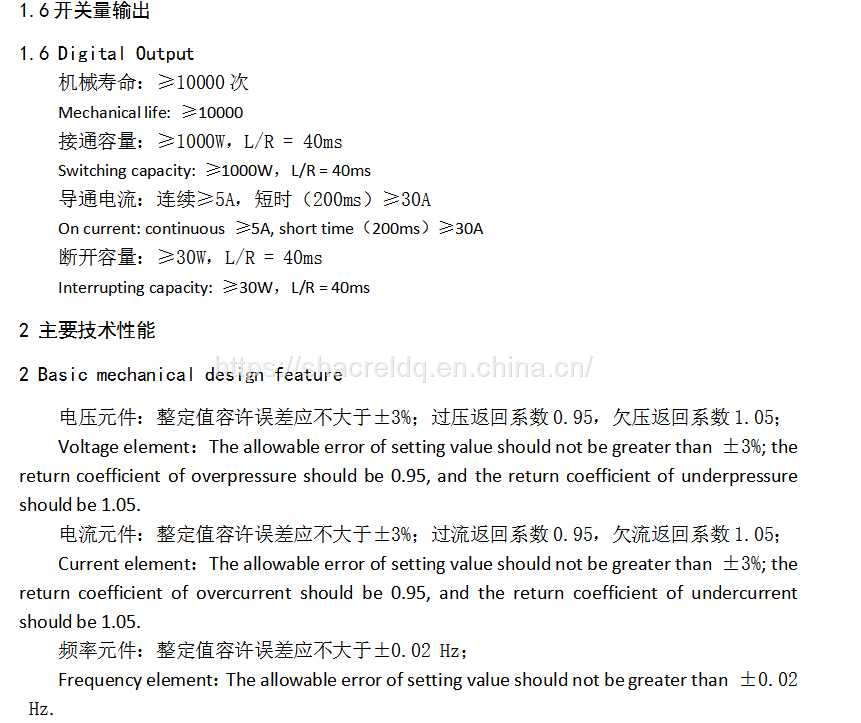

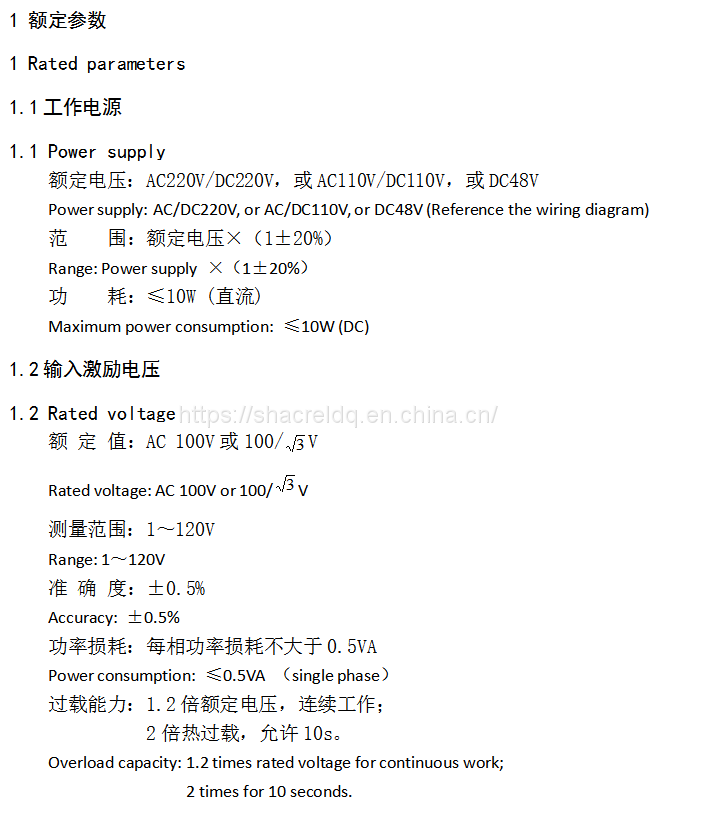

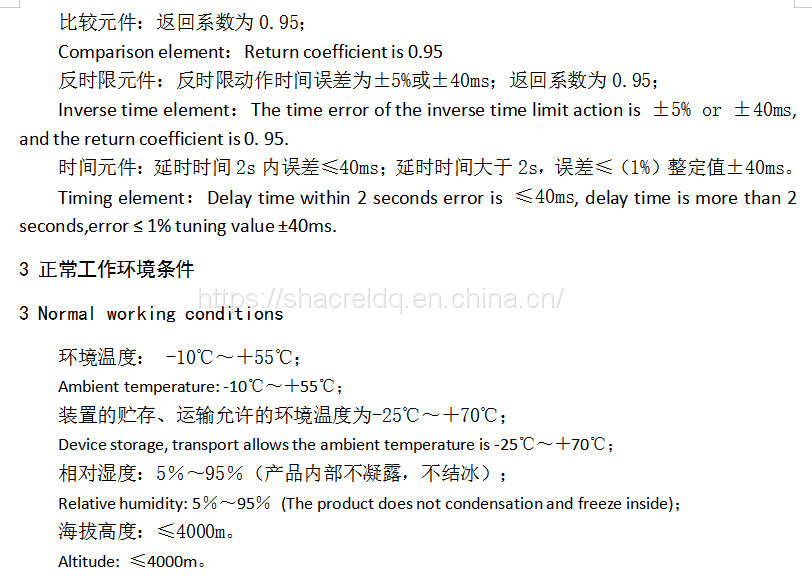

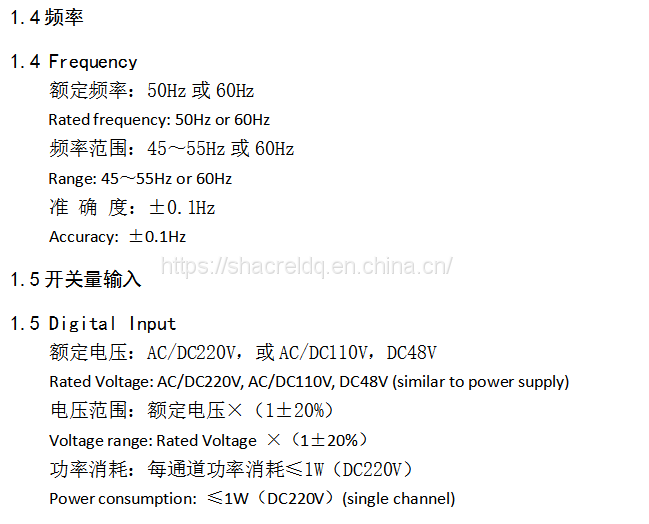

▋ Rated Parameters

▋ Dimension and Installation

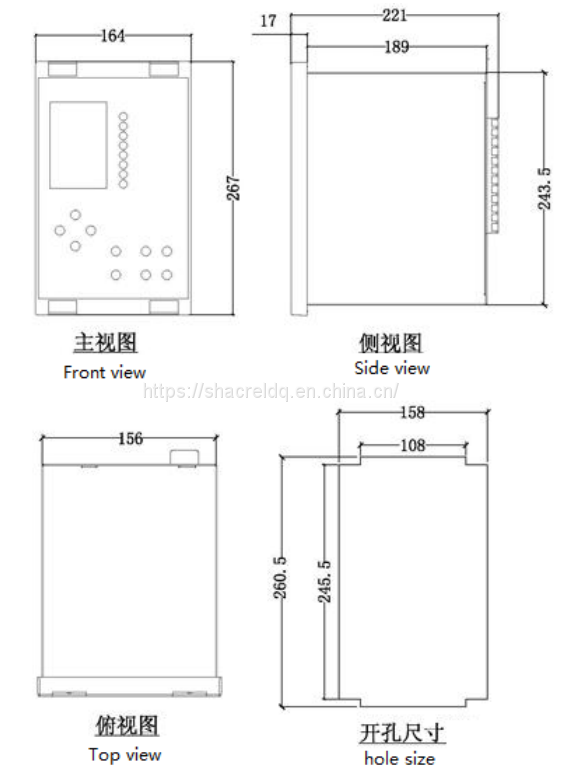

Outline

Installation Method

    The device adopts panel embedded installation. Firstly, holes are opened on the screen surface according to the opening size, as shown in Figure 4.1. Insert the device into the opening as shown in FIG. 4.2 until the device panel rests against the cabinet panel. Place the bracket inside the cabinet panel (one bracket at the top and one bracket at the bottom), as shown in Figure 4.3. Rotate the four fixing screws to secure the device to the cabinet panel, and finally cover the four clamps. (There is a small gap on the top of the cover. Use a flat-head screwdriver to insert the small gap to remove the cover.

The installation method shown as figure 4.1, 4.2 and 4.3.
