Home > Office Supplies > Scanner > Qr Code Scanner Usb Mobile 2d Wired Ccd/coms 1d Android Omni Directional Module Barcode Reader
Qr Code Scanner Usb Mobile 2d Wired Ccd/coms 1d Android Omni Directional Module Barcode Reader
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2011
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed 1D/2D Desktop Portable Mobil Payment Pos qr Code Reader IP Barcode ScannerNegotiableMOQ: 1 -
1D 2D Auto Barcode Scanner Handheld Bar Code Reader Android IOS LINUX MAC UseNegotiableMOQ: 1
-
Rugged 1D 2d qr Fixed TCP IP Omnidirectional Barcode Scanner for POSNegotiableMOQ: 1
-
1D/2D China Supermarket Handheld Tablet Pc Wireless Stand Pos Wifi Barcode ScannerNegotiableMOQ: 1
-
OSCY Ready to Ship In Stock Fast Dispatch QR Code Scanner 2021 New Design Desktop Barcode Scanner China Manufacturer OEM ODMNegotiableMOQ: 1
High Quality fixed Barcode Scanner Module 1D 2D QR Bar Code Reader for kiosk Raspberry Pi
This scanner module can be embedded in various devices as a barcode reading component application. Widely used in production equipment, logistics and warehousing, banking systems, medical systems, storage cabinets, exhibition halls, ticket inspection machines, vending machines and other fields.

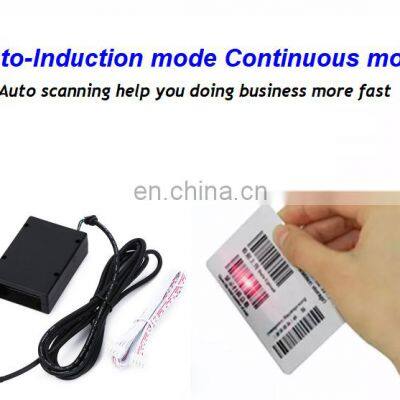

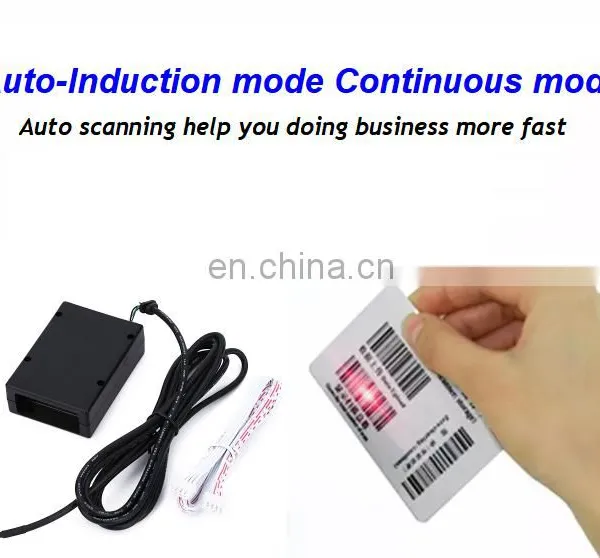

Features:
1. CMOS image sensor.
2. No driver, plug and play.
3. Supporting the RS232,USB,TTL,Micro USB interface.
4. Wide angle lens design, scans a large area.
5. Super scanning and decoding ability, can read incomplete and fuzzy codes.
6. Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.
7. Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment,ticketing
machines, vending machines, and many more.
8. Can be customized according to customer demand.
2. No driver, plug and play.
3. Supporting the RS232,USB,TTL,Micro USB interface.
4. Wide angle lens design, scans a large area.
5. Super scanning and decoding ability, can read incomplete and fuzzy codes.
6. Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens.
7. Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment,ticketing
machines, vending machines, and many more.
8. Can be customized according to customer demand.
Products Description

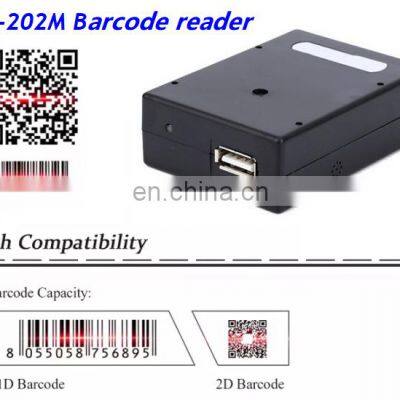

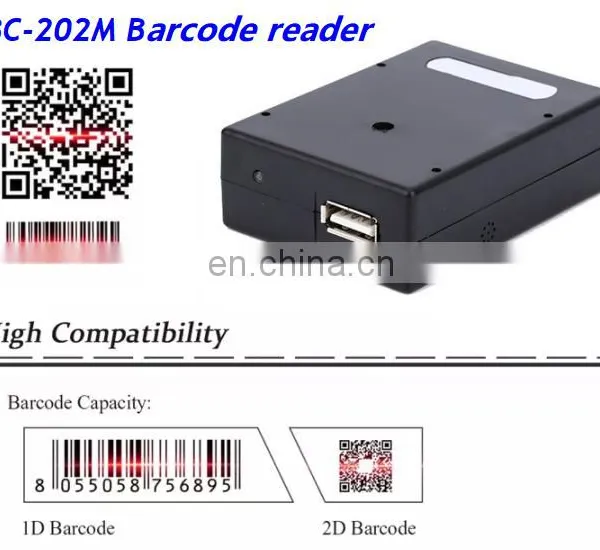

Specifications
Model |
OBC-202M |
Infrared induction distance |
150 - 200mm |
Optical Source |
650nm Visible red light diode |
Image Resolution |
≥4mil |
Minimum Contrast |
≥ 30% |
Decoding Speed |
100times/s |
Data Interface Port |
USB |
Size(Length x Width x Height) |
70.3×50×22.4 mm |
Weight (except cable) |
51g |
Indicator |
Siren and LED light |
Working Voltage |
DC5V |
Max.Curren |
95ma |
Charging Current |
450ma |
Storage Temperature |
-40°C ~ 60°C |
Working Temperature |
0°C ~ 50°C |
Relative Humidity |
0 ~ 95% |
Height Range |
1.5m |
IP Rating |
IP52 |
Barcode Types |
UPC/EAN/JAN,UPC/EAN with supplementals， UCC/EAN128,Code39,MSI,Code11,Code39 Full ASCll, Code39 Trioptic, Code128,Code128 Full ASCll Codabar,Code93, Discrete 2 of 5 IATA,RSSvanrians,Codabar,chinese 2 of 5,Interleaved 2/5, Interleaved 2 of 5, International general dimensional barcodes |
Application
