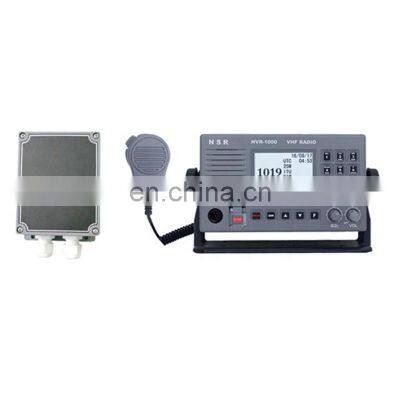

Marine Electronics Maritime Navigation Communication NVR-1000 GMDSS IMO Ship Class A DSC CH70 VHF Radiotelephone Transceiver
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Electronics Maritime Navigation Communication Standard Horizon Quantum GX6000 Integrated AIS Receiver VHF RadiotelephoneNegotiableMOQ: 1 -
Marine Electronics Maritime Navigation Communication Standard Horizon HX380 5W Submersible Handhold VHF Radio TransceiverNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication Standard Horizon Submersible LMR HX400 5W Handhold FM VHF Radio TransceiverNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication Standard Horizon Quantum GX1400 Class D CH70 Fixed Mount VHF RadiotelephoneNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication Standard Horizon GX1400G Class D CH70 Fixed Mount VHF Radiotelephone GPSNegotiableMOQ: 1
Please contact me before purchasing for the shipment and product price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

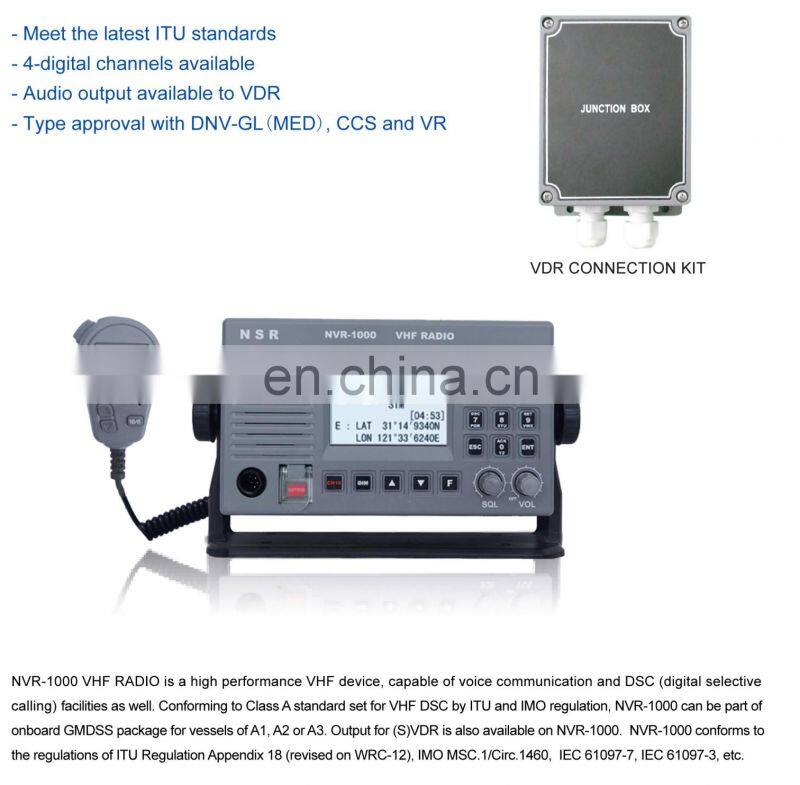

[FEATURES]
- Capable of voice communication and DSC (digital selective calling) facilities as well.
- Can be part of onboard GMDSS package for vessels of A1, A2 or A3.
- Output for (S)VDR is also available on NVR-1000.
- 4-digital channels avaiable.
- Conforms to the regulations of ITU Regulation Appendix 18 (revised on WRC-12), IMO MSC.1/Circ.1460, ITU-R M.493-14, IEC 61097-7, IEC 61097-3.
- CCS type approval.
- DNV-GL type approval.
- VR type approval.
[SPECIFICATIONS]
| TX Frequency: | 156.000 ~ 157.425 MHz |
| RX Frequency: | 156.000 ~ 163.425 MHz |
| Working Channel: | ITU (65) |
| DSC Watch Ch.: | CH70 |
| TX Power: | 25W (high) 1W (low) |
| RX Sensitivity: |
≤2μV (SINAD=20dB) |
| Interface | |
| - GPS Input: | RS-422, 4800bps |
| - VDR Output: | 600Ω balanced |
| - Printer I/O: | RS-232, 4800bps |
| Power Supply: | 13.8VDC (max 5.5A) |
| Weight: | 1.5 kg |
| Size Dimension: | 233 (W) × 137 (H) × 91 (D) mm |
| IP Grade: | IP22 |
