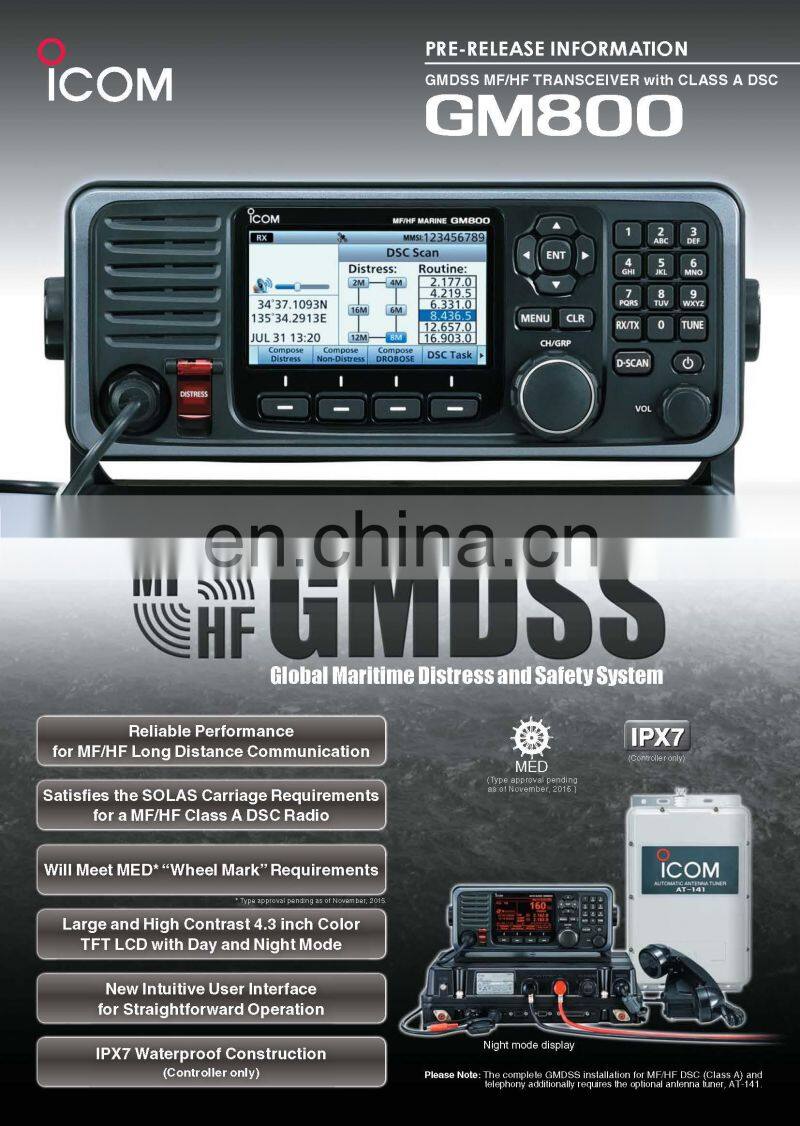

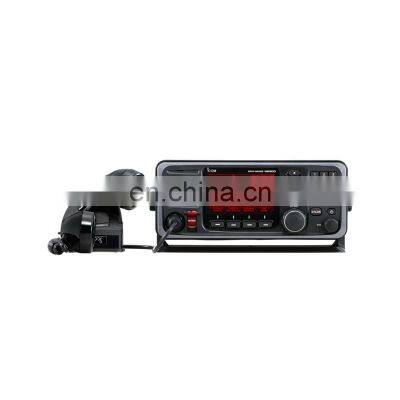

Marine Electronics Maritime Navigation Communication GMDSS MED IMO SOLAS Radio Icom GM800 150W MF/HF SSB Radiotelephone W/ ATU
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Electronics Maritime Navigation Communication ICOM Radio GMDSS MED CCS SOLAS IMO GM600 Ship Boat VHF DSCradio TelephoneNegotiableMOQ: 1 -
Marine Electronics Maritime Navigation Communication GMDSS MED IMO Icom GM1600E Portable VHF Two Way Radiotelephone Life CraftNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication IMO 5W Icom IC-M25 Portable VHF Two Way Radiotelephone TransceiverNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication 6W Icom IC-M37 Portable VHF Two Way Radiotelephone Transceiver Float FlashNegotiableMOQ: 1
-
Marine Electronics Maritime Navigation Communication ICOM IC-M220 Ship Boat Class D DSC CH70 VHF Radiotelephone TransceiverNegotiableMOQ: 1
Please contact me before purchasing for the shipment and price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

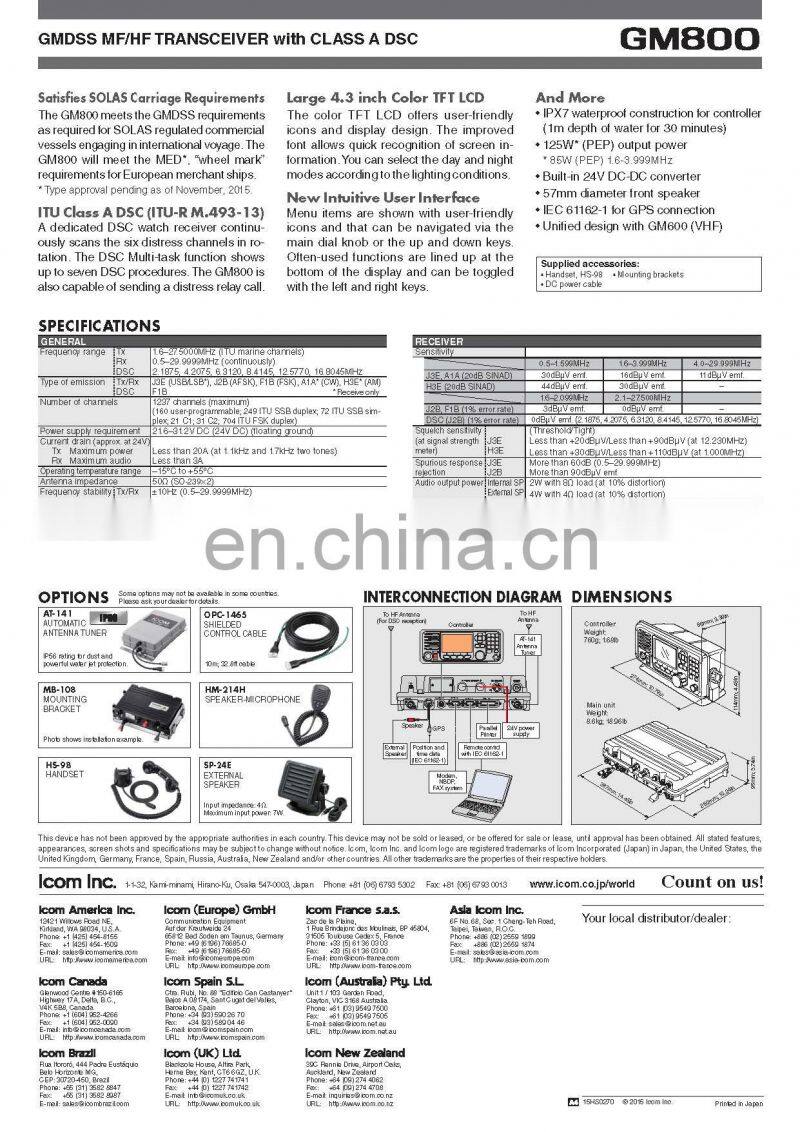

| Frequency range (Unit: MHz) | TX | 1.6–27.5000 (ITU marine channels) |
|---|---|---|
| RX | 0.5–29.9999 (continuously) | |
| DSC | 2.1875, 4.2075, 6.3120, 8.4145, 12.5770, 16.8045 |
|
| Type of emission | TX/RX | J3E (USB/LSB*), H3E* (AM), J2B* (AFSK), F1B (FSK), A1A* (CW) * Receive only. |
| DSC | F1B | |
| Power supply requirement | 24 V DC (21.6–31.2 V) (floating ground) | |
| Dimensions (projection not included; W×H×D) | Main unit | 367 × 95 × 260 mm |
| Controller | 274 × 114 × 86 mm | |
| Weight (approximately) | Main unit | 8.6 kg |
| Controller | 760 g | |
| RF output power | 150W PEP into 50 Ω (at radio terminal) 125W (4.0–27.5 MHz) (at tuner-output) 85W (1.6–3.999 MHz) (at tuner-output) |
|
| Current drain | Transmit (Max. power) |
Less than 20 A (at 1.1 kHz and 1.7 kHz two tones) |
| Receive (Max. audio) |
Less than 3.0 A | |
| Sensitivity | J3E, A1A (20 dB SINAD) |
30 dBμV emf (0.5–1.599 MHz) 16 dBμV emf (1.6–3.999 MHz) 11 dBμV emf (4.0–29.999 MHz) |
| J2B, F1B (1% error rate) |
3 dBμV emf (1.6–2.099 MHz) 0 dBμV emf (2.1–27.500 MHz) |
|
| H3E (20 dB SINAD) |
44 dBμV emf (0.5–1.599 MHz) 30 dBμV emf (1.6–3.999 MHz) |
|
| DSC (J2B) (1% error rate) |
0 dBμV emf | |
| Audio output power | External SP | 4 W with 4 Ω load |
| Internal SP | 2 W with 8 Ω load | |
| IEC 61162-1 in/out format |
Input | GGA, GNS, GLL, RMC, FSI |
| Output | FSI, DSC, DSE |
Measurements made in accordance with EN300 373-1 for GM800.
