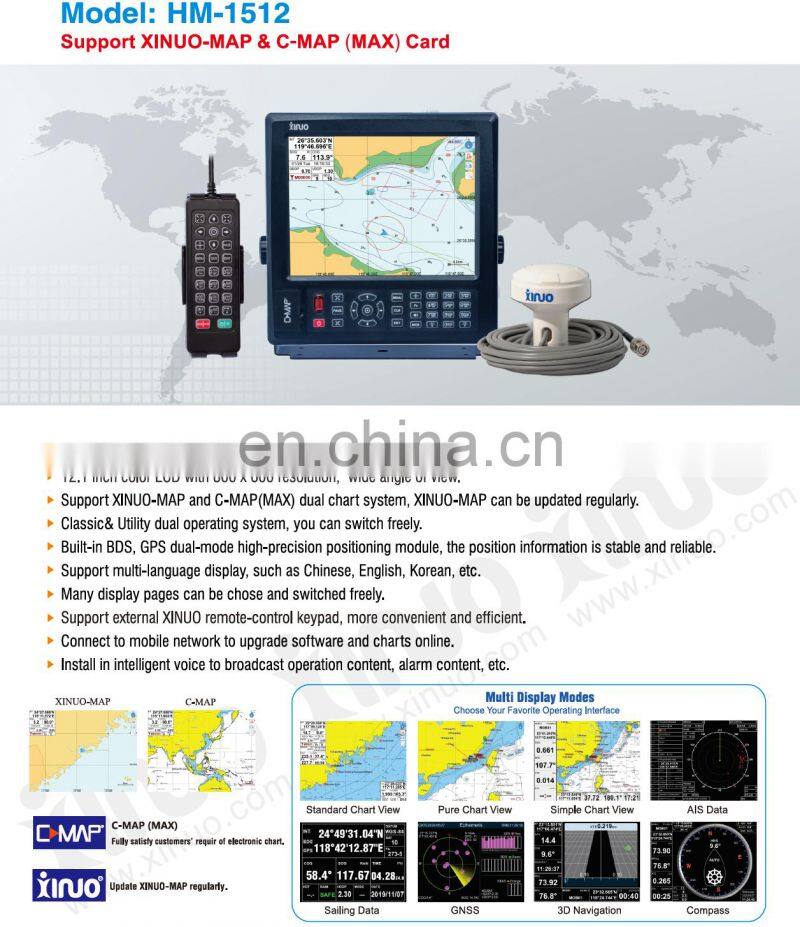

Marine electronics navigation communication Xinuo HM-1512N 12.1'' display fishing boat GNSS GPS navigator nautical chart plotter



Please contact me before purchasing for the shipment and real product price and detailed configuraiton

If you want to make bulk purchase or be our agent, please contact with us





12.1” TFT LCD with 800 x 600 resolution.

Dual keyboards and meet the IPX6 water-proof standard.

Accurate and detailed chart data with official bridge alarm function.

Built-in global chart, upgrade the chart regularly and with free of charge.



Display unit  HM-1512
 Display Type   Color TFT LCD
 Display Size    12.1 inch
 Display Resolution  800 × 600 pixels (SVGA)
 Display Brightness   500cd/m2
 Language  English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish,  Thai, Greek, Indonesian, Japanese, Korean, Spanish; Burmese
 Display Modes  Standard Chart View, Simple Chart View, AIS Data , GPS Data, 3D Navigation, Compass
 Memory Capacity  10000 waypoints, 200 routes (100 points each route),
 10000 marks, 1000000 trackpoints,
 200 boundary lines (40 points each line)
 Interface   NMEA 0183 Output 3 Ports, AIS Input 2 Ports
(422 level and 232 level, only two choose one),
 RS422 Input 2 Ports
 Chart   C-MAP (MAX) & XINUO MAP
 Power Supply   DC12V-36 V
 Enviromental
 Working temperature  -15℃~+55℃
 Storage temperature  -20℃ ~ +60℃
 Waterproofing  IPX6
 GNSS
 GNSS  Receiver   32 channels  (Support WAAS/EGNOS/MSAS/GAGAN )
 Receive Frequency  L1 (1575.42MHz)   B1 (1561.098MHz)
 Position Accuracy  GPS&BDS     2.5m
   GPS               3m
   BDS               5m
 Speed Accuracy   0.1m/s(50%@10m/s)
 Acquisition Time  Cold Start: <32s ,Hot Start:<1s
 Tracking Velocity   999 knots
 Coordinate Systems  WGS-84 (and others)
 Standards



IEC 60945 :2002 EMC related items

 ETSI EN 301 489-1V1.8.1:2008 EMC related items



 IEC 60950-1:2006

 ETSI EN 301 489-3 V1.4.1:2002 EMC related items



 IEC 60529:2006 EMC related items

 ETSI EN 300 440-2 V1.4.1:2010 Spurious related items

 ETSI EN 300 440-1 V1.6.1:2010 Spurious related items





Marine electronics navigation communication Xinuo HM-1512N 12.1'' display fishing boat GNSS GPS navigator nautical chart plotterMarine electronics navigation communication Xinuo HM-1512N 12.1'' display fishing boat GNSS GPS navigator nautical chart plotter
