Marine electronics maritime navigation communication IMO CCS MED FURUNO NX-700 B collision avoidance navigational telex NAVTEX



Please contact me before purchasing for the shipment and price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.



Features

Full compliance with IMO Resolutions and IEC Testing Standards

IMO Resolutions A.694(17)
MSC.148(77)
MSC.302(87)
MSC.430(98)
IEC Testing Standards 60945 Ed. 4.0
61097-6 Ed. 2.0
61162-1 Ed. 5.0
61162-2 Ed. 1.0
62288 Ed. 2.0
62923-1 Ed. 1.0
62923-2 Ed. 1.0



Dual channel reception, 518 kHz and either 490 or 4209.5 kHz, simultaneously



Incorporates a printing device (NX-700A) or a dedicated display device with printer output (NX-700B)



200 message of average length 500 characters can be stored in nonvolatile memory



Incorporates a preamp within a lightweight, compact antenna for reliable, uninterrupted reception



Display messages on a clear 5" silver bright LCD



Low power consumption



NAV data display acts as NMEA repeater for GPS or instruments

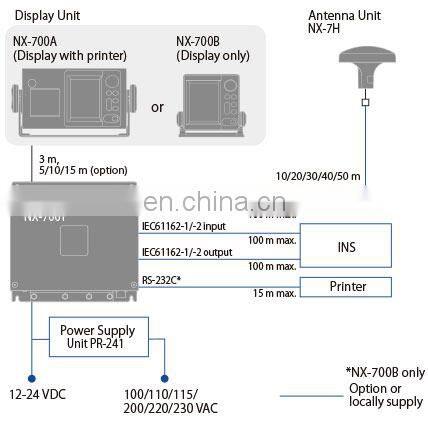

Equipment List

Standard

 DISPLAY UNITNX-700ARECEIVER UNITNX-7001ANTENNA UNITNX-7H

STANDARD INSTALLATION MATERIALSSTANDARD ACCESSORIESSTANDARD SPARE PARTS





Option

MAST MOUNTING KITCP20-01111



CABLE ASSEMBLYDSUB25P-DSUB25P-3M / DSUB25P-DSUB25P-5M / DSUB25P-DSUB25P-10M / DSUB25P-DSUB25P-15M



L-ANGLE MOUNTING BASENO. 13-QA310



RIGHT ANGLE MOUNTING BASENO. 13-QA330 (300)



HANDRAIL MOUNTING BASENO. 13-RC5160



ANTENNA CABLE EXTENSION KIT (10/20/30/40/50 M)OP04-2 10/20/30/40/50 M



FLUSH MOUNT KITOP08-19



AC/DC POWER SUPPLY UNIT (110/220 VAC -> 24 VDC)PR-241



ARMOURED COAXIAL CABLE (30/40/50 M)RG-10/U-Y 30/40/50 M



RECORDING PAPER (57MM X 30M)TP058-30CL
