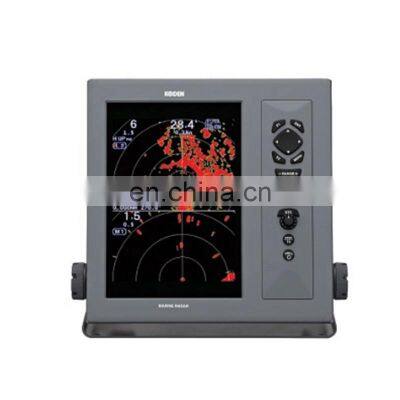

Help CenterMarine Electronics Navigation Communication Koden MDC-2041 32NM 4KW 10.4'' 2FT Radome Antenna X BAND Vessel Nautical Radar
Related Products
-
Marine Electronics Navigation Communication Koden MDC-2040 48NM 4KW 10.4'' 3 Or4 FT Radome Antenna X BAND Vessel Nautical RadarNegotiableMOQ: 1 -
Marine Electronics Navigation Communication Koden MDC-2060 64NM 6KW 10.4'' 4 or 6 FT Radome Antenna X BAND Vessel Nautical RadarNegotiableMOQ: 1
-
Marine Electronics Navigation Communication Koden MDC-2010 72NM 12KW 10.4'' 4 6 FT Radome Antenna X BAND Vessel Nautical RadarNegotiableMOQ: 1
-
Marine Electronics Navigation Communication Koden MDC-941 32NM 4KW 8.4'' 2FT Radome Antenna X BAND Vessel Nautical RadarNegotiableMOQ: 1
-
Marine Electronics Navigation Communication Koden MDC-940 48NM 4KW 8.4'' 3 or 4FT Open Antenna X BAND Vessel Nautical RadarNegotiableMOQ: 1
Please contact me before purchasing for the shipment and price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

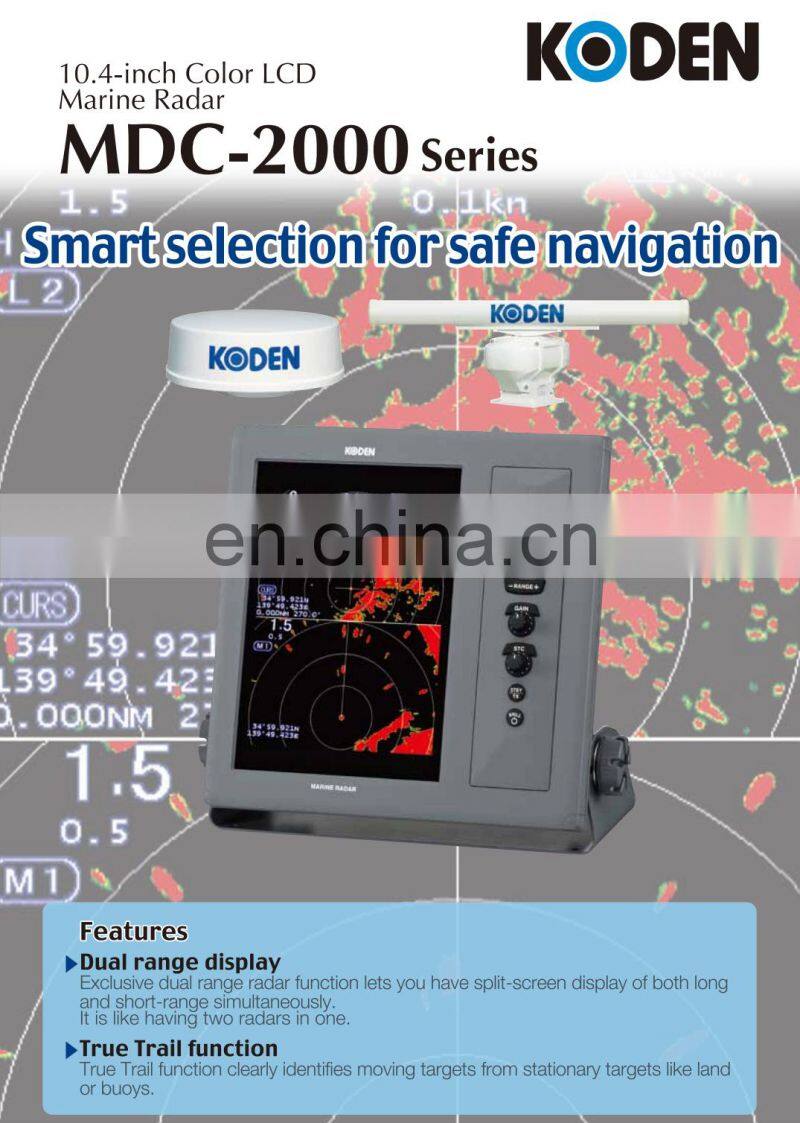

Features
True trail function
The display shows exactly the movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving. This makes it easy for you to distinguish moving from stationary objects.
Dual range display
Exclusive dual range radar feature lets you view split screen display of both long and short-range targets simultaneously. It's like having two radars in one.
Real time smooth head-up indication
The picture moves smoothly in proportion to changing bearing.
ATA with up to 50 targets as option
The convenient ATA (Automatic Tracking Aid) function comes as option. The latest movements of other vessels can be shown instantaneously in vector form and numeric form, ensuring safe navigation. If the automatic acquisition zone is set, the targets up to 50 entering the zone will be locked automatically.
AIS interface up to 100 targets as option
When connected with an AIS receiver, the radar displays information on up to 100 targets including the name, heading, and speed of each vessel with an AIS transmitter mounted.
CCD Camera input
Accepts CCD camera input, with which you can watch above deck and below deck any time you are steering.
Crisp and viewable display
The LCD and acrylic sheet with Anti-Reflection coated filter are bonded directly. It increases visibility in direct sunlight and prevents condensation.
RGB output
RGB output available for a connecting external monitor. You can monitor the Radar even when you are away from steering.

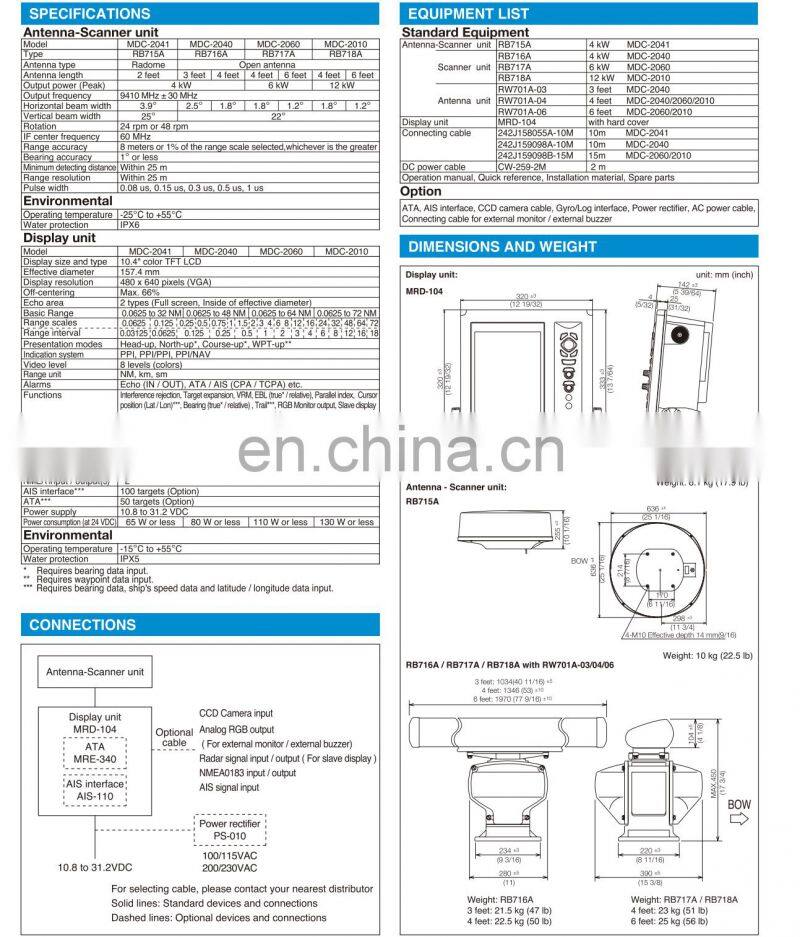

Main Specifications
|
MDC-2041 |
4kW / 32 nm / 2 ft Radome |
|
Dimensions |
320 (H) x 364(W) x 184 (D) mm |
|
Weight |
8.1 kg |
|
Power supply |
10.8 to 31.2 VDC |
