Marine electronics maritime navigation communication CSH5L-MK2 Furuno fish finder 68 kHz 15'' display full circle scanning sonar



Please contact me before purchasing for the shipment and price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.

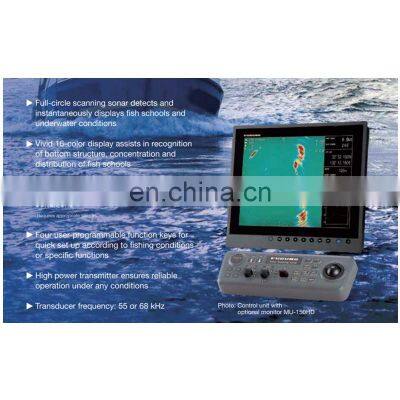

Features

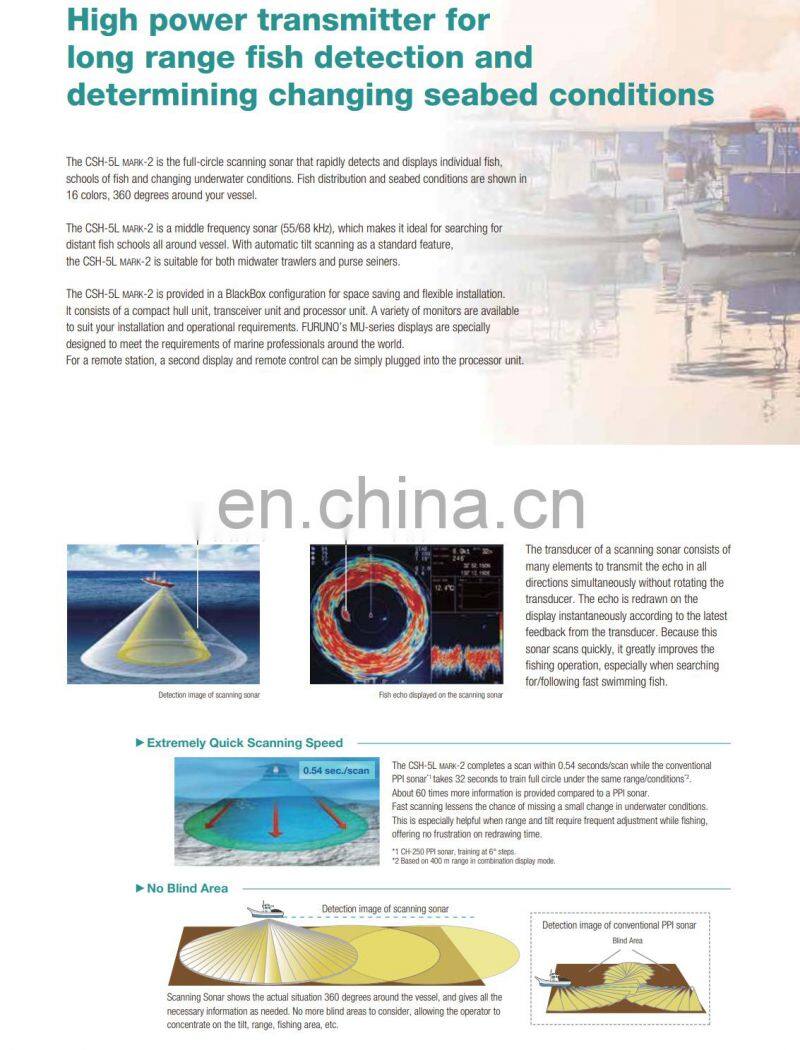

Full-circle scanning sonar detects and instantaneously displays fish schools and underwater conditions



Vivid 16-color display assists in recognition of bottom structure, concentration and distribution of fish schools



Various fishing and navigation data* keeps operator abreast of fishing and navigation conditions



Four user-programmable function keys for quick set up according to fishing conditions or specific functions



High power transmitter ensures reliable operation under any conditions



Transducer frequency: 55 or 68 kHz



With the CSH-5L MARK-2 you can confidently fish in shallow areas and increase your catch



Specifications

General

Frequency
55 or 68 kHz
Basic Range
50, 85, 100, 200, 250, 300, 350, 400, 450, 500, 600, 800, 1000, 1200, 1600 m

Display Unit

Display unit
15" color LCD FURUNO MU-150HD, or PC monitor, 1024 x 768 pixels (XGA)
Pixel number
XGA (1024 x 768)
Colors
Scan/echo: 16 colors, mark: 1color

Power Supply

Processor Unit
115/230 VAC, 50-60 Hz, 0.4 kVA (Raise 1 kVA)
24 VDC with optional DC-AC inverter

Others

Weight
Processor unit: 3.4 kg
Transceiver unit: 20 kg
Control Unit: 3.5 kg
Hull unit: 70 kg (400 mm travel), 75 kg (600 mm travel)

Equipment List

Standard

  • PROCESSOR UNITCSH-5210-A
  • CONTROL UNITCSH-5211 -A
  • TRANSCEIVER UNITCSH-5130-A-5L
  • PRE-AMP UNITCSH-5020-A
  • Hull Unit400 mm or 600 mm travel
  • Installation Materials, Accessories and Spare Parts

Option

  • DC-AC InverterTR-2451
  • E/S InterfaceVI-1100A
  • Retractable TankOP10-5
  • SpeakerSEM-21Q
  • Transducer Cable Extension Kit
  • Motion SensorMS-100
  • Remote ControllerCSH-7040



Marine electronics maritime navigation communication CSH5L-MK2 Furuno fish finder 68 kHz 15'' display full circle scanning sonarMarine electronics maritime navigation communication CSH5L-MK2 Furuno fish finder 68 kHz 15'' display full circle scanning sonarMarine electronics maritime navigation communication CSH5L-MK2 Furuno fish finder 68 kHz 15'' display full circle scanning sonar
