Home > Products > Ultrasonic Cleaning Transducer > 40KHz 30W Small Type Ultrasonic Transducer Vibrator Oscillator For Cleaning Equipment Parts
40KHz 30W Small Type Ultrasonic Transducer Vibrator Oscillator For Cleaning Equipment Parts
- 10000 Piece / Pieces per Month
- FOSHAN
- T/T Credit Card PayPal Other
- 15 days
Product Details
Brand Name: | PULISONIC | Place of Origin: | China | Model Number: | PLS-QXHNQ4030 |
Condition: | New |
Product Description

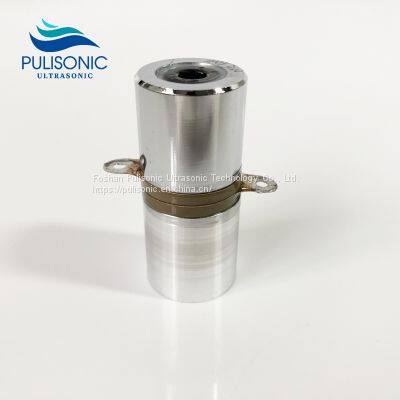

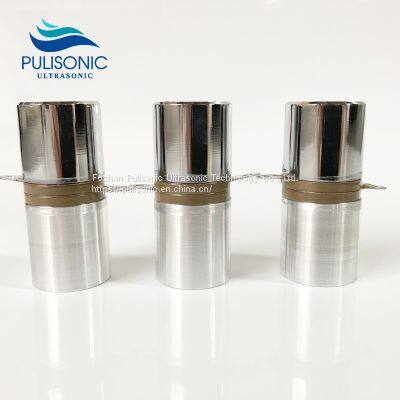

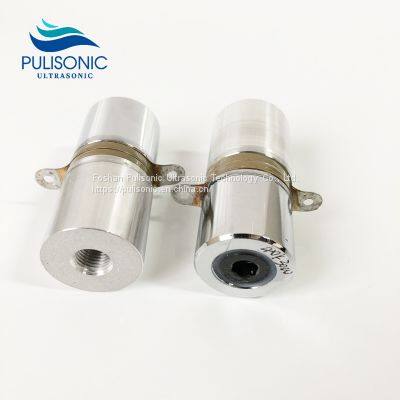

40KHz 30W Small Type Ultrasonic Transducer Vibrator Oscillator For Cleaning Equipment Parts
Features of ultrasonic transducer:
1. High performance: high mechanical Q value, high conversion efficiency and good quality;
2. Ultrasonic vibrator transducer has large amplitude and superior performance;
3. Heat resistance of ultrasonic vibrator transducer: Piezoelectric ceramic material has good heat resistance, can expand the temperature range of use, at the same time, the Q value is high, the resonance impedance is small, and the heat generation is small;
4. The appearance of the ultrasonic vibrator transducer is clean, free of rust, no obvious dents and scratches.
The mechanism of ultrasonic cleaning is to make use of the physical effects such as cavitation, radiation pressure and sound flow in the cleaning liquid. It can exfoliate the machinery produced by the dirt on the cleaning parts, and can also promote the chemical reaction between the cleaning liquid and the dirt, so as to achieve the purpose of cleaning the object. The frequency of the ultrasonic cleaning machine can be selected by 10~500 kHz according to the size and purpose of the cleaning material, generally more than 20~50 kHz. With the increase of the frequency of ultrasonic transducer, Langerhans oscillator, longitudinal oscillator and thickness oscillator can be used. In the miniaturization aspect, radial vibration and flexural vibration are also adopted. Ultrasonic cleaning has become more and more widely used in various industries, agriculture, household equipment, electronics, automobile, rubber, printing, aircraft, food, hospital and medical research..
Type | Length(mm) | Weight(g) | Frequency(KHz) | Resonance Impedance | Static Capacity | Input Power(W) |
PLS-QXHNQ20100 | 94 | 900 | 20 | 10-20 | 5200 | 100 |
PLS-QXHNQ25100 | 77 | 710 | 25 | 10-20 | 6600 | 100 |
PLS-QXHNQ28100 | 66 | 624 | 28 | 10-20 | 6600 | 100 |
PLS-QXHNQ2560 | 77 | 530 | 25 | 10-20 | 5400 | 60 |
PLS-QXHNQ2860 | 68 | 470 | 28 | 10-20 | 3800 | 60 |
PLS-QXHNQ2850 | 82 | 425 | 28 | 10-20 | 4100 | 50 |
PLS-QXHNQ3360 | 58 | 420 | 33 | 10-20 | 3800 | 60 |
PLS-QXHNQ4060 | 56 | 310 | 40 | 10-20 | 5400 | 60 |
PLS-QXHNQ4050 | 57 | 300 | 40 | 10-20 | 4100 | 50 |
PLS-QXHNQ5435 | 36 | 135 | 54 | 10-20 | 3200 | 35 |
PLS-QXHNQ6860 | 80 | 460 | 68 | 10-20 | 3800 | 60 |
PLS-QXHNQ68120 | 67 | 588 | 68 | 10-20 | 7800 | 120 |
PLS-QXHNQ8060 | 60 | 325 | 80 | 10-20 | 5400 | 60 |
PLS-QXHNQ12060 | 56 | 260 | 120 | 10-20 | 5400 | 60 |
PLS-QXHNQ13550 | 54 | 215 | 135 | 10-20 | 4200 | 50 |
