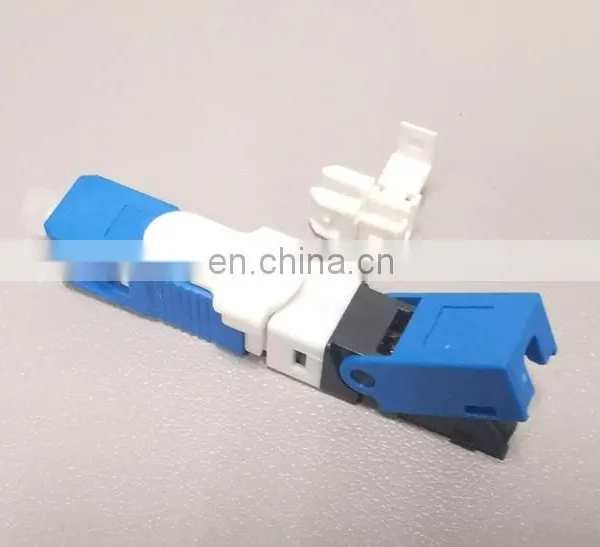

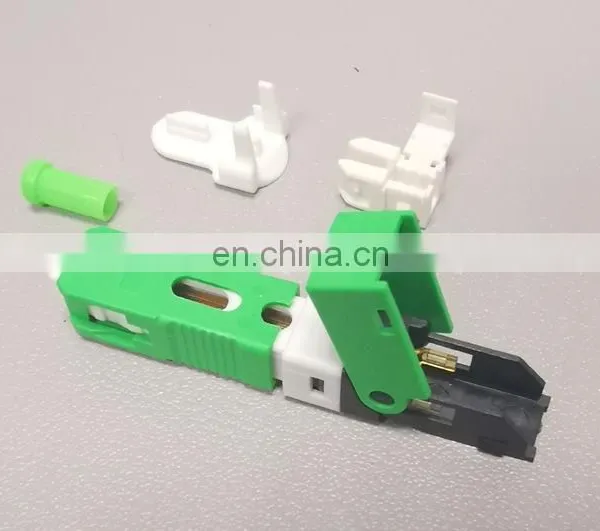

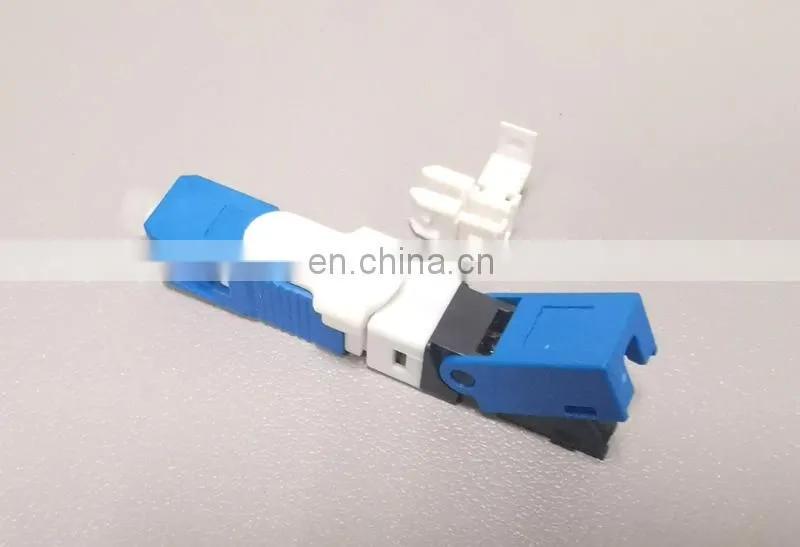

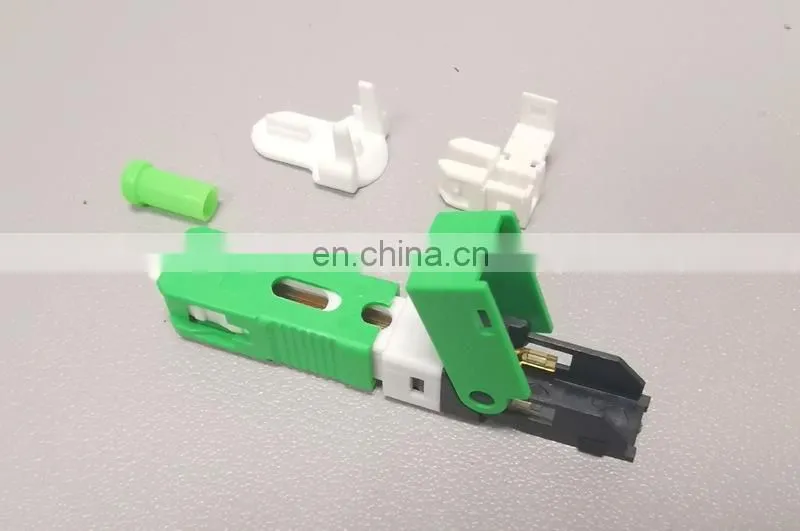

Help CenterChina Manufacturer SC Field Assembled Fiber Connector FTTH Fast Connector ESC250D
Related Products
-
Empty FTTH Equipment Splitter Cassette Fiber Optic Patch Panel Mini ODF Type PLC Splitter Rack MountNegotiableMOQ: 1 -
Rack Mounted Sliding Type 1U 24 Port Fiber Patch Panel LC UPC Quad Fully Loaded 96 Core ODFNegotiableMOQ: 1
-
FTTH Patchcord Sc Apc Fiber Optic Patch CordNegotiableMOQ: 1
-
FTTH 1U 48 Ports Metal Fiber Optic Terminal Box 19 Rack Cabinet ODF Rack MountNegotiableMOQ: 1
-
High Quality Sliding Fiber Optic Patch Panel 1U Rack Mount 24 Port ODF Patch PanelNegotiableMOQ: 1
Product Introduction
Fiber optic distribution box applied to FTTH that links in the access of the terminal system, especially suitable for the outdoor wall hanging or hoop type.
Feature
* Design of double layer structure, the upper layer is the optical splitter wiring layer, the lower layer is the fiber fusion layer.
* Easy to operate. Usually installed as wall mounted in the building or at the green belt.
* The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality.
* SMC complex plastic or Cold rolled plate without material optional.
* Fixed cable and protection.
* Protect optical fiber splice joint.
* Termination function of fiber core.
Application
* Telecommunication Networks.
* Communication System.
* Test Equipment.
* Fiber CATV.
* FTTH.
|
Applicable for |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
|
Optical fiber diameter |
φ125um (657A&657B) |
|
Tight buffer diameter |
φ250um |
|
Fiber mode |
Single mode |
|
Operation time |
About 10s (exclude fiber cut) |
|
Insert loss |
≤0.3dB (1310nm & 1550nm) |
|
Return loss |
≥45dB |
|
Fastening strength of naked fiber |
≥ 5N |
|
Tight clamping force cladding |
≥ 8N |
|
Tensile strength |
≥ 50N |
|
Using temperature |
-45°C~+80°C |
