Optical fiber heat shrink tube

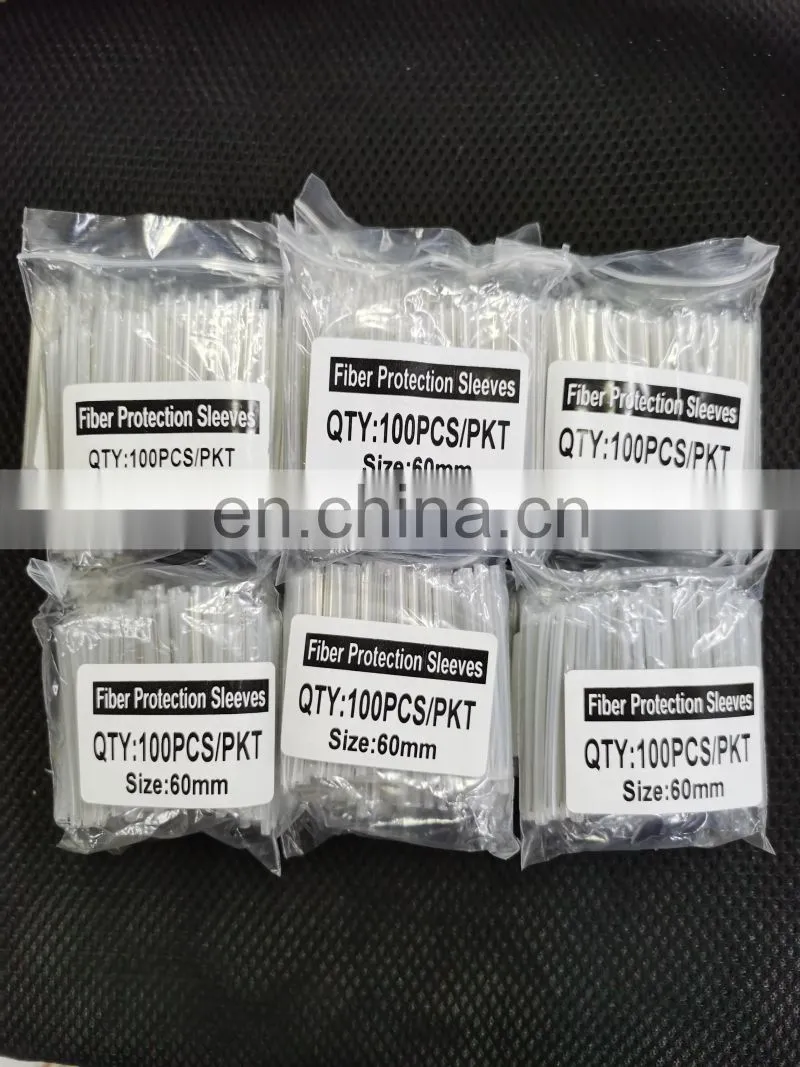

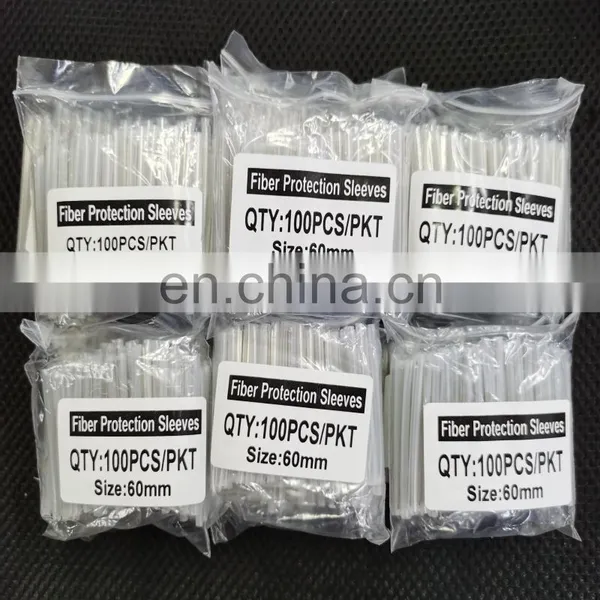

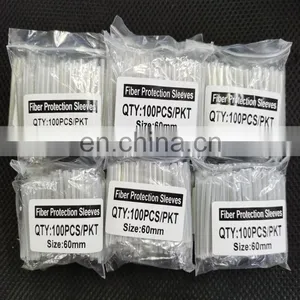

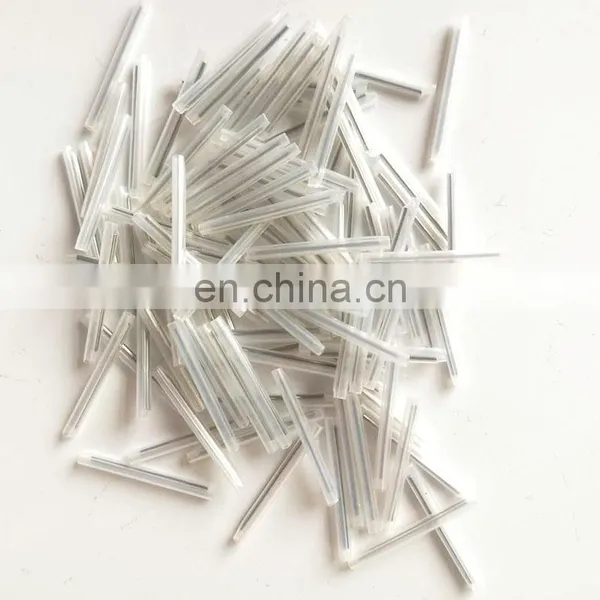

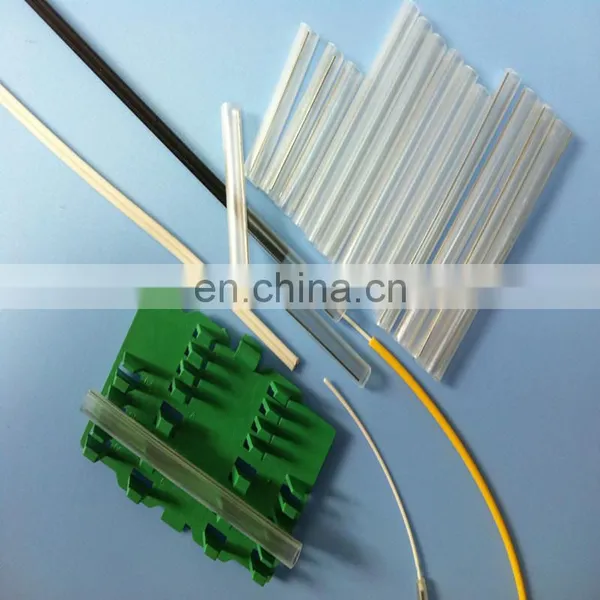

 Optical fiber heat shrink tube 30MM 45MM 60MM



A specially designed crosslinked Clear Heat Shrinkable tubing, with Clear fusion tubing liner, providing strength member and protection to fiber optical splices.



Feature :



1.Good moisture and environmental performance

2.Transparent casing can be connected better before contraction

3.Easily operating to the optical fiber

4.Waterproof, RoHS compliant

Applications

1. Use the enhanced wire, hot-melt tube and cross-linked polylefin composition

2.Reconstruct the fiber coating

3.Junction to provide a good mechanical strength

4.Ensure good optical transmission properties



Specification for colorful fiber optic heat shrink tube
Properties
Test Method
Typical Data
TensileStrength(MPa)
ASTM D 2671
≥18 Mpa
Ultimate Elongation (%)
ASTM D 2671
700%
Density (g/cm2)
ISO R1183D
0.94 g/cm2
Dielectric
Strength(KV/mm)
IEC 243
20KV/mm
Dielectric Constant
IEC 243
2.5max
Longitudinal Change
(%)
ASTM D 2671
±5%


Shrinking Temperature (°C)

110 ~ 130

Radial Shrinking Rate (%)

>50

Axial Shrinking Rate (%)

<10

Low Temperature Property

No crackle at -55°C lasting 4 hours

Normal Operation Temperature (°C)

-55°C ~ + 135°C

Normal Operature Relative Humidity

≤95%

Spark- over Strength (kV/mm)

≥20

Tensile Strength (Mpa)

20

Loss at -40°C

0.03dB

Loss at +60°C RH95%

0.02dB
Model  OFHST
Type Single fiber, Ribbon fiber
Material  Heat shrink tube, fusion tube, 304 steel rod
Length 35, 40, 45, 50, 60mm
Tubing ID 1.5, 1.3, 0.5mm
Steel rod diameter 1.5, 1.2, 1.0mm
Minimum fully recovery temperature 120  °C
Operating temperature -45 °C to + 100  °C
Standard Color Clear





Technical Data

Properties  Test Method Typical Data
Tensile Strength ASTM D2671 ≥18 MPa
Ultimate Elongation ASTM D2671 700%
Dielectric Strength IEC 243 20KV/mm
Dielectric Constant IEC 243 2.5max
Longitudinal Change ASTM D2671 0±5%
Density ISO R1183D 0.94 g/cm3



Optical fiber heat shrink tube 30MM 45MM 60MMOptical fiber heat shrink tube 30MM 45MM 60MM
