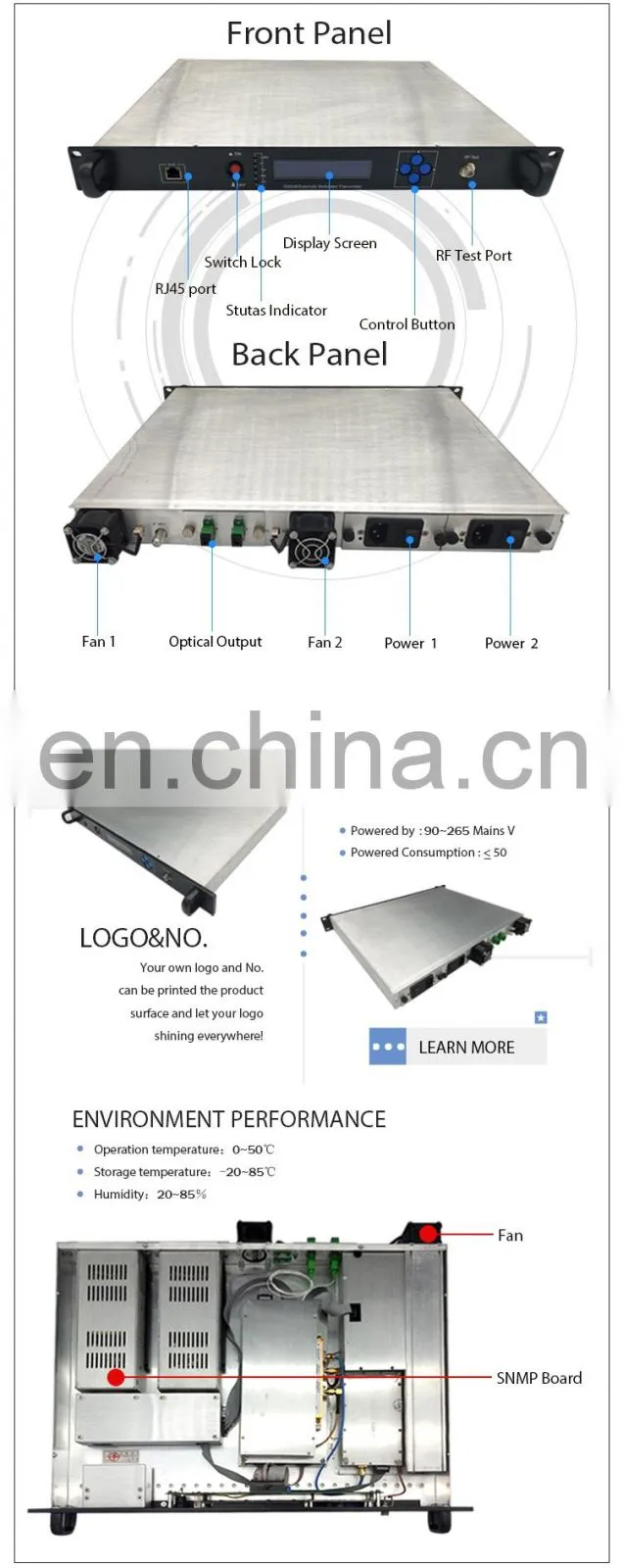

Help CenterWholesale 1310nm Optic Direct 2mw 3dbm Catv Internal Optical Transmitter
Related Products
-
Wholesale Low Price 8 Port Fiber Distribution Optical Amplifier EdfaNegotiableMOQ: 1 -
Trade Assurance Fixed Channel Modulator Ntsc ModulatorNegotiableMOQ: 1
-
Free Print Catv Headend Rf Modulator 16 Channels Catv ModulatorNegotiableMOQ: 1
-
Over 20 Year S Production Experience Modulator Rf ModulatorNegotiableMOQ: 1
-
Industrial Product Modulator Rf Rf Modulator CatvNegotiableMOQ: 1
Cheap Type |
Normal type |
Upgrade type |
Coaxial laser |
China brand laser |
Ortel laser |
Mini type |
1U chassis type |
1U chassis dual power supply |
SBS≤10dbm |
SBS≤13 dbm |
SBS≤14 dbm |
support distance:15KM |
support distance:25KM |
support distance:30KM |
No. |
Item |
Unit |
Performance Parameter |
Remarks |
1 |
Laser model |
|
YOT-1310/YOT-1550 |
See specifications |
2 |
Light wavelength |
nm |
1310±10/1550±10 |
If deviation from the wavelength before ordering |
3 |
Optical modulation |
|
Intensity modulation |
|
4 |
Optical output power |
dBm |
|
See specifications |
5 |
Optical connector |
|
FC/APC OR SC/APC |
Before ordering |
6 |
Frequency Range |
MHz |
47~750(862) |
|
7 |
Carrier to noise ratio |
dB |
≥52.0 |
GY/T143-2000 6.2.3.5 |
8 |
flatness |
dB |
±0.75 |
GY/T143-2000 6.2.4 |
9 |
RF input signal level |
dBuV |
75~85 |
AGC automatic control |
10 |
C/CTB |
dB |
≥65.0 |
GY/T143-2000 6.2.5 |
11 |
C/CSO |
dB |
≥65.0 |
GY/T143-2000 6.2.6 |
12 |
RF input impedance |
Ω |
75 |
|
13 |
RF input reflection loss |
dB |
>16(47~550)MHz >14[550~750(862)MHz |
GB/T11381.1 |
14 |
powered by |
V |
90~265 Mains |
4.2.2.2.5 |
15 |
Power consumption |
W |
≤50 |
|
16 |
power supply |
|
|
Single-supply operation |
17 |
Operating temperature |
℃ |
0~50 |
dual power backup |
18 |
Storage temperature |
℃ |
-20~85 |
|
19 |
Relative humidity |
% |
20%~85% |
|
20 |
Size |
″ |
19″×11″×1.75″ |
(W)x(D)x(H) |
21 |
SNMP |
|
RJ45 |
