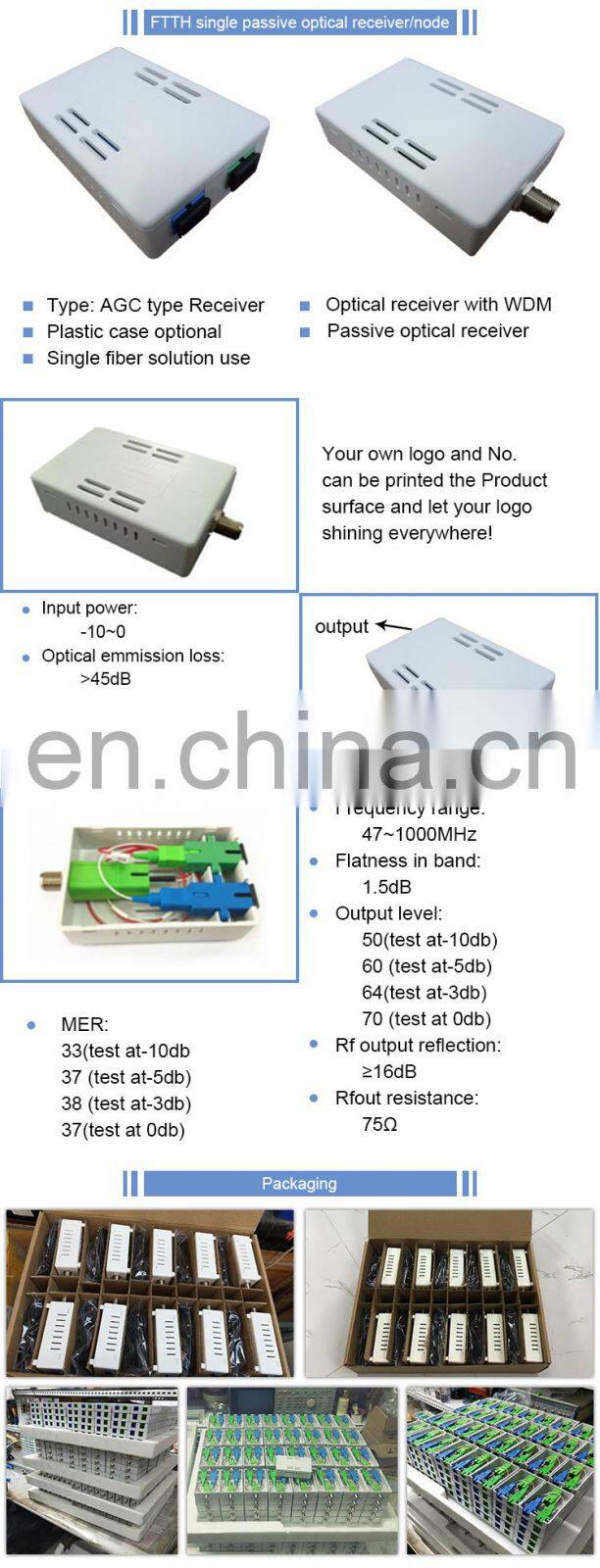

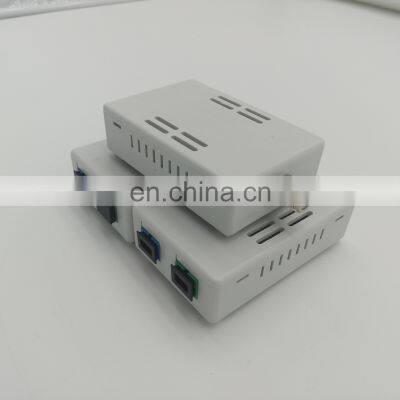

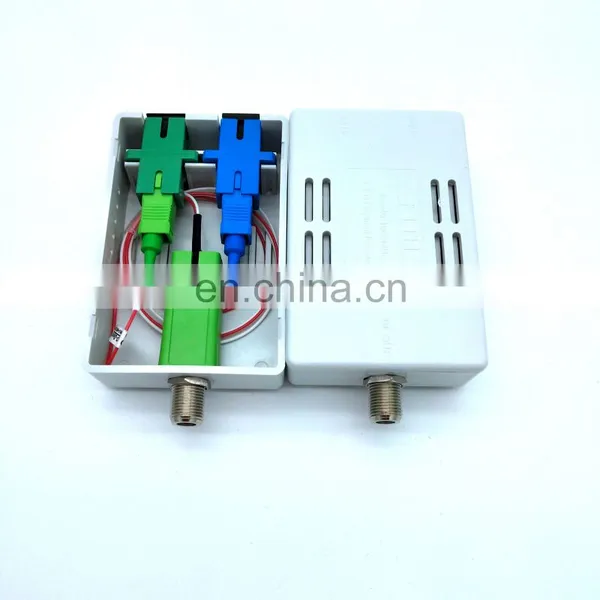

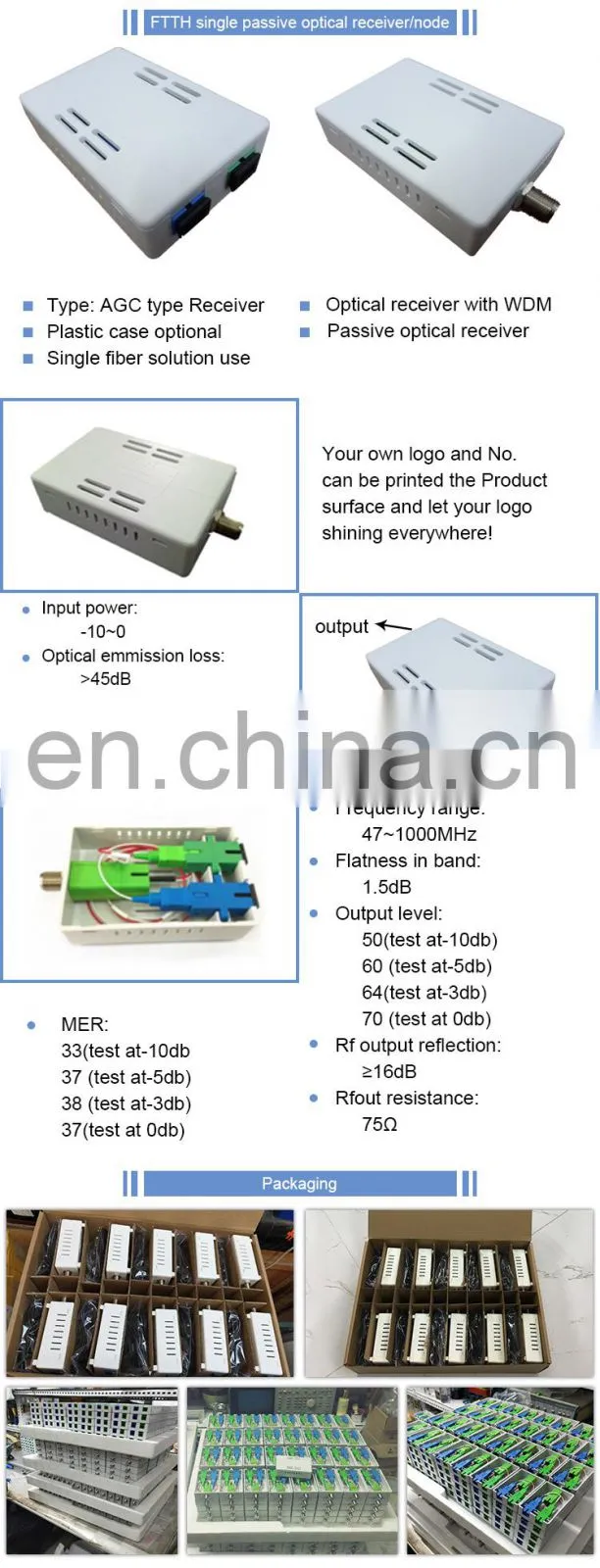

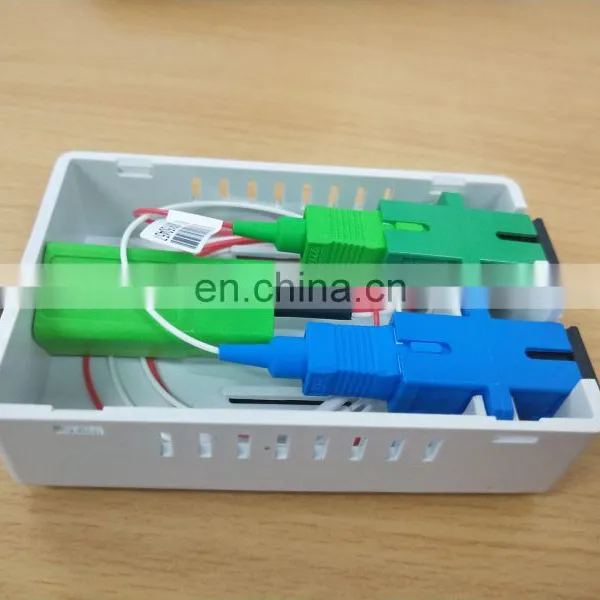

YT-8684-P Passive wdm optical receiver is our company specifically to deal with FTTH - fiber to the home network structure and the introduction of another feature. The product shell is small, the internal circuit is compact and reasonable; excellent performance indicators, is the district or FTTH network of choice for products. This device adopts technology of high isolation WDM in order to separate CATV and ONU signal.
Advantage:
1. Passive WDM Optical receiver no need any power supply to use
2. This device adopts technology of high isolation WDM in order to separate CATV and ONU signal.
3. Maxim output level can reach 70dbuv
4. If input no less than -10dbm. This type will be can fully reduce cost.
Function:
Input power:-8dBm~+2dBm; Output power:70dBμV(±10 dBμV)
Application:GPON/EPON network
MGC Attenuation adjustable:-20dB
Red light:<-9dBm; Green light:>-9dBm;Orange light on: >+2dBm
Frequency: 45~1000MHz/2600MHz (downstream) RF Output
