Home > Products > packing machine > Automatic Mattress Packaging Machine
Automatic Mattress Packaging Machine
- 300 Set / Sets per Month
- Shenzhen
Product Details
Place of Origin: | China | Model Number: | LR-MP-50P | After-sales Service Provided: | Overseas service center available |
Weight: | 2300kg | Dimension(L*W*H): | 1600-2300mm* 800-2300mm* 80-500mm | Voltage: | 380V/220V 50/60Hz |
Power: | 6kW | Application: | Textiles | Condition: | New |
Automatic Grade: | Automatic | Driven Type: | Electric |
Product Description

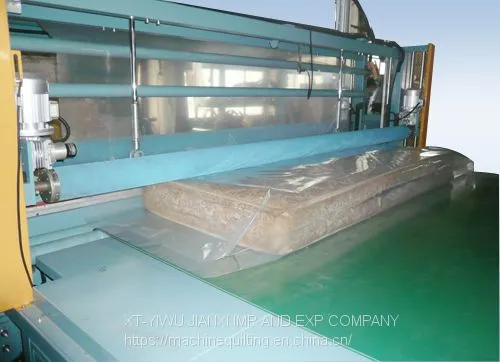

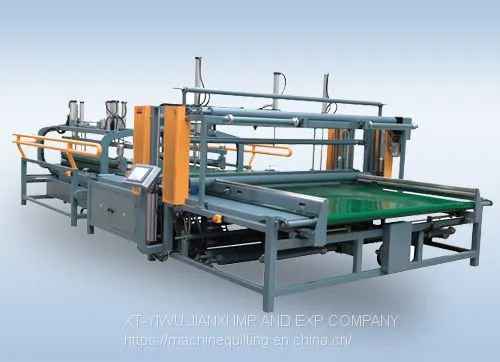

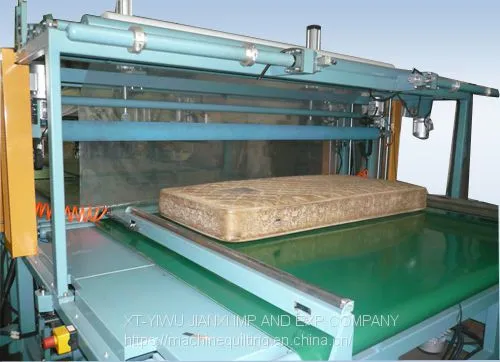

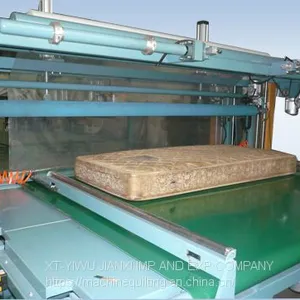

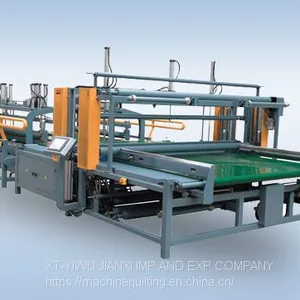

Automatic Mattress Packaging Machine
Product Description:
The LR-MP-50P produced by our company is a function machine of the product line, lt is specially designed for the final package of the finished mattress in the end of the product line,. LR-MP-50P make use of plastic to pack finished mattress and then seal, so that protect the product and also make the product more elegant.
Technical characteristics:
1. The automatic level is extremely high , Under a manless working flow, the machine itself carried out all the operations from the feeding and processing to the delivering the mattress bodies.
2. Sited freely in the end of the product line, the machine will pack the finished products.
3. Highly packaging performace .Designed three work site, the machine will form a continuate package craftwork, in order to satisfy the requirement of high speed running.
4. Perfect seal of film provides more security in storage & delivery.
5. Accepts mixed product length, width and thickness, in any sequence / seal bars are self-adjusting for all mattress sizes.
6. CE-Conform / International standard components.
7. Automatically wraps mattresses or foundations up to 2 units in one minute.
8. Accepts mixed product length, width and thickness, in any sequence /seal bars are self-adjusting for all mattress sizes.
9. Accepts all kinds of finished mattresses and soft cushions made from sponge.
10. Available wrapper : PE, PVC, PU.
11. Unique water&wind- circulation system to chill heat-seal bars and provide perfect seal.
12. Compact design minimizes floor space.
13. Lateral reinforcements as film holder in the two sides to position extra film in different color or with logo mark.
14. Low and easy maintenance.
15. Easy to operate / short training period.
Mattress Width | 800-2300mm |
Mattress Height | 80-500mm |
Mattress Length | 1600-2300mm |
Packaging Speed | 2 Pieces/minute |
Air Consumption | Approx.60M3/H 0.8Mpa |
Control | PLC |
Power Supply | 380V/220V 50/60Hz 6KVA |
Operative Temperature | 0-+45℃ |
Machine weight | 2300KG |
