LONKIA Fully Automatic Fish Tin Washing Can Rinsing Drying Machine Wide Mouth Bottle Washing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LONKIA Poultry Plastic Crate Tray Pallet Tote Box Basket Cage Slat Washing MachineNegotiableMOQ: 1 -
LONKIA Poultry Plastic Chicken Crate Tray Pallet Tote Box Basket Cage Slat Washing MachineNegotiableMOQ: 1
-
LONKIAfactory Price Fresh Goods Germicidal Disinfect Equipment Supermarket Frozen Seafood SterilizerNegotiableMOQ: 1
-
LONKIA Automatic Outer Packing Box Logistics Package Disinfection Equipment Electric Frozen Meat Seafood Sterilization ChannelNegotiableMOQ: 1
-
LONKIA Widely Usage Food Seafood Sterilization Machine In Logistics Center Cold Chain Food DisinfectorNegotiableMOQ: 1
Product Description
Equipment introduction

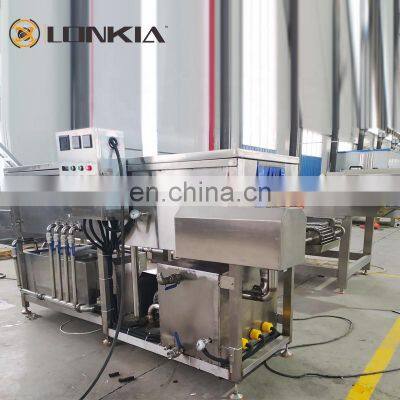

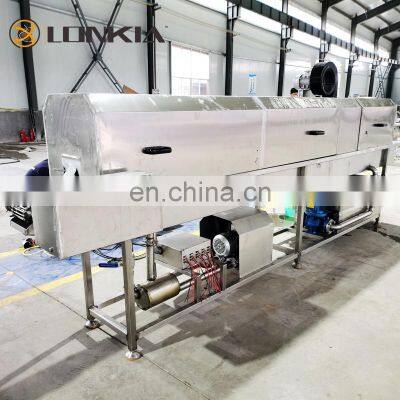

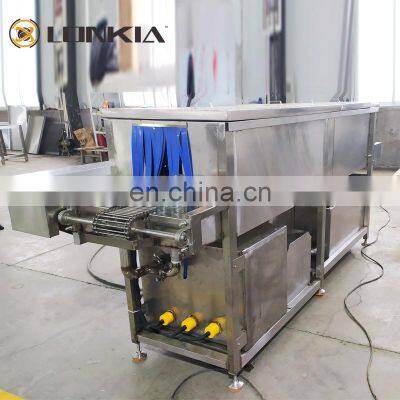

The Bottle Washing and Drying machine is made of 304 stainless steel, and is equipped with a water receiving tray under the equipment. The shower cleaning device during the conveying process inside the washer is sprayed on all sides, and every corners can be covered. The blow-dry device is settled at the end to ensure the finished product can be used for packaging or filling straight away.
It is suitable for any types of bottles, such as long-neck bottles, jar, tin, can etc….
The Bottle Washing and Drying machine is made of 304 stainless steel, and is equipped with a water receiving tray under the equipment. The shower cleaning device during the conveying process inside the washer is sprayed on all sides, and every corners can be covered. The blow-dry device is settled at the end to ensure the finished product can be used for packaging or filling straight away.
It is suitable for any types of bottles, such as long-neck bottles, jar, tin, can etc….
Working Principle
1. Putting: Put the plastic bottles (glass bottles) to be cleaned on the conveyor belt of the bottle washer and enter the washing section;
2. Pre-wash, using the spray nozzle to reducing or removing any greasy stuffs.
Enter the washing section for high-pressure water spray washing in four directions. After spray washing, the water flows back to the water tank and is recycled. The water can contain an appropriate amount of cleaning agent;
3. Key wash, giving high pressure spray all around with hot water, add soda or washing-up liquid if needed.
Enter the second washing section for high-pressure water spray washing in four directions, the water flows back to the second water tank after spray washing, and is recycled;
4. Rinsing, spraying all sides with clear water to avoid leaving stains and water marks on the bottle after drying.
Use filtered warm water to spray the bottle at high pressure, and the warm water will return to the third water tank for recycling;
5. Drying: Use heated air inside the machine to dry the moisture on the surface to achieve the drying effect;
6. Recycling: The bottles that have been dried out of the machine will be collected.
The cleaning process is divided into three stages.
The cleaning process is divided into three stages.
Mode | LK-XP006 | Material | Stainless steel |
Voltage | 380V | Capacity | 1000-2000units |
Power | 15KW | Air inner temperature | 30-300℃ |
Dimension | Customized | Average drying time | 1-1.5s |
Main configuration and features
1. It adopts stainless steel chain track, frequency conversion adjustment motor, and adjustable operation speed of the equipment, which can meet the cleaning requirements of plastic bottles (glass bottles) with different production volumes and varying degrees of cleanliness.
2. The water tanks are all cleaned with horizontal stainless steel centrifugal water pump circulating spray cleaning, inclined design, with automatic device, unified water inlet, unified sewage discharge; each water tank is equipped with a filter device (the internal filter device is a three-layer filter), which is convenient Clean up dirt at any time; there is also a slide design under the water tank, and all water tanks can be drawn out separately for easy operation and cleaning.
3. The cone-shaped stainless steel nozzle is a three-dimensional four-directional installation structure, which is staggered and distributed, and the cleaning angle is adjustable, which makes multi-directional cleaning more convenient.
4. The guardrail rails on both sides of the bottle washer can be adjusted according to the width of the bottle, and the top spray pipe can be adjusted up and down, which is suitable for cleaning bottles of different heights.
5. Exhaust vent: The moisture generated after the steam is heated is discharged through this port. The three-layer silicone curtain at the end of the bottle prevents water from splashing out and prevents the hot air from spilling and hurting the operator. Each section has three water-retaining curtains. Prevent the water from mixing in the two tanks.
6. There are movable waterproof doors on both sides of the cleaning room, and soft curtains are used to seal the waterproof ends, which is convenient for cleaning and repairing the equipment at any time.
7. Conventional equipment is three-stage cleaning. The first two stages are hot water cleaning. Alkaline water and detergent water can be added to remove oil stains according to product requirements. The third stage is clean water flushing (also can be customized as two-stage or four-stage according to special requirements. Segment cleaning).
8. The conventional cleaning efficiency is 300-1200 pcs/h (specifically determined according to the degree of messiness of the customer's product).
9. Equipped with a stainless steel electrical control box to centrally control all power; electrical appliances are equipped with overload protection and leakage protection; the front and rear ends of the equipment are equipped with emergency stop devices, which can be stopped if necessary.
10. The equipment has the characteristics of low energy consumption, good production and cleaning effect, simple maintenance, easy installation, labor saving, etc., if the customer's special requirements, the surface can be air-dried and dried.
Detailed Images
Recommend Products
Company Profile
Shipping&Packing
Standard export wooden case packing, fit for multiple handing and long distance marine shipping.
delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
Standard export wooden case packing, fit for multiple handing and long distance marine shipping.
delivery Time
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
