Home > Products > Automatic Heavy-Duty Bags Packaging Machine > FBS-20C HUALIAN Automatic Bag Closing Machine
FBS-20C HUALIAN Automatic Bag Closing Machine
- 1000 per Month
- T/T Credit Card
- FBH-32D HUALIAN Heavy Duty Bag Sealer
- FBH-42 HUALIAN Heavy-duty Bags Heat Sealer
- ZSG-600DS series bag placer is for supplying empty bag taking to filling machines
- ZSG-1000A high speed bag placer is high efficient fully auto empty bag supplying for filling machines
- ZSG-300B High quality vacuum pumps are used to ensure the fulfillment of requirements of different types of bags
- ZE-9B/4 HUALIAN Automatic Folding Machine
Product Description

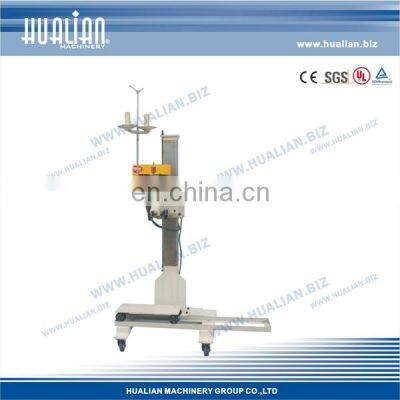

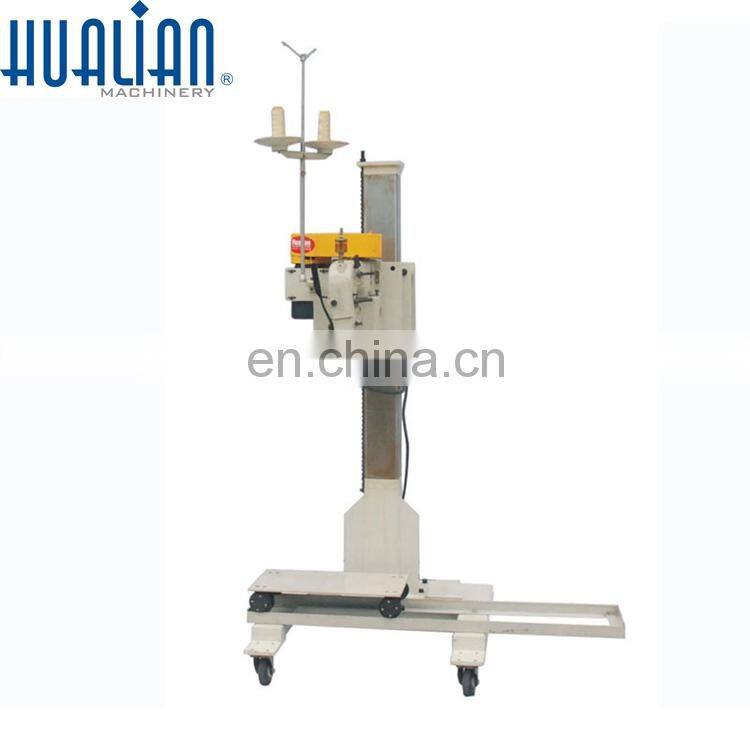

HUALIAN Automatic Bag Closing Machine (FBS-20C)
Description
- FBS-20 automatic edge-folding stitching packaging machine is suitable for edge-folding and stitching of PP, PE woven bags.
- it has wide application in the fields of foodstuff, feed, chemical industry.
- This machine adopts photoelectric control system, which could automatically and continuously finish the processes of edge-folding, stitching, thread-snipping etc. of plastic woven bags.
Features:
- The thread-snipping and lube spray is carried out by pneumatic system
- It cam make up an automatic production line with auto. ration filling machine and conveyor.
- Optional device: 5 digits counter.
Parameters:
Model | FBS-20 | FBS-20C | ||
Voltage(V/Hz) | AC 380/50 | |||
Motor Power of Sewing Machine (W) | 370 | |||
Transmission Motor Power(W) | 180 | -- | ||
Sewing Machine Model | GK95-1 | GK35-2 GK35-6 | ||
Distance from Sewing Machine to Floor(mm) | 700-1400 | |||
Transmission Speed(m/min) | 8.5(Customize max 11) | |||
Folding Width(mm) | 30-40 | -- | ||
Air Pressure(Mpa) | 0.6 | |||
Needle Model | DR-H30326 | 80800 200-250# | ||
Sewing Machine Specification | 21S/5,20S/3 Terylene thread | |||
Height Space Request of Bag Top (mm) | 150-170 | |||
Net Weight(kg) | 200 | 150 |
Why choose us:
Zhejiang Top Export Brand
China packaging industry enterprises TOP100
China packaging machinery industry enterprises TOP30
Quality Control:
1.Each Heat Sealer Impulse Sealer with the Eligible Certification inside package
2.Shipping department checks each item before packing, totally avoiding manufacturing defects.
3.The main products have attained European CE certificat
Research And Development:
1.Obtained the national patent 39 items, invention patent 2 items!
2.Drafting up national standard and industry standard for "Plastic Bag Heating Sealer","Semiautomatic Strapping Machine" and "Skin Packaging Machine".
Marketing:
1.Hualian have more than 200 agent network all over the world
2.The products are sold to more than 100 countries around the world.
Q: Are you a factory or a trading company?
A: We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have video of every standard machine and can send to you by Email or other way you want.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate?
A:We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company?
A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: When your company was founded?
A: Hualian Machinery Group Co., Ltd. was established in 1989.
Q:How about your warranty?
A: Our warranty is 12 months. Normally, the general after-sale service may be as below:
1) The technical support is permanent.
2) The paid spares parts could be provided at any time.
3) We have dealers in some countries to offer compensable service.
Q: Why your price is higher than many suppliers in China?
A: Hualian is old and famous brand of packing machines and we offer machines in high quality and consummate service from inquiry to after-sale.
