HVR-420A HUALIAN Automatic Thermoforming Vacuum Packaging Machine
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
DZ-280/P Hualian Portable Plastic Bag Home Packaging Food Sealing Packing Machine Household Vacuum Sealer
-
FS-1000H Hualian Food Plastic Bag Heating Heat Hand Impulse Sealer Sealing Machine
-
ZE-8B/4 Hualian A4 A3 Cross Make Booklet Automatic Fold Paper Folding Machine
-
TF-6540SA+BS-5540M HUALIAN Semi-Automatic Sleeve Sealing And Cutting Machine
-
JML-100 Hualian Vertical Type Food Peanut Butter Soybean Cream Colloidal Mill
-
DZQ-500/2E Hualian Two Sealing Bars Floor Style Food Plastic Bag Gas Flushing Sealer Vacuum Packing Machine
Product Description
Product Description
Description:

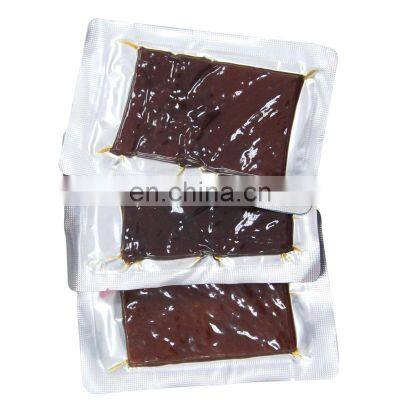

HVR-A Series Automatic Thermoforming Vacuum Packaging Machine can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming, sealing, cutting, etc.; it will skin pack the product.
It is widely used to skin pack the products like kinds of snacks, meat, medical products, hardware, medical equipment, etc.
It adopts removable moulds which enable single machine to meet different sizes of moulds.
It equips with recycling device for waste film and ensure healthy environment.
It works with sensor for accurate positioning. It is available for vanish-film or color film to pack.
HVR-A Series Automatic Thermoforming Vacuum Packaging Machine can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming, sealing, cutting, etc.; it will skin pack the product.
It is widely used to skin pack the products like kinds of snacks, meat, medical products, hardware, medical equipment, etc.
It adopts removable moulds which enable single machine to meet different sizes of moulds.
It equips with recycling device for waste film and ensure healthy environment.
It works with sensor for accurate positioning. It is available for vanish-film or color film to pack.
Product Paramenters
HVR-320A | HVR-420A | HVR-520A | |||
Voltage (V/Hz) | AC 380/50 | ||||
Sealing Power (W) | 2000 | ||||
Air Source(Mpa) | 0.5-0.6 | ||||
Chamber Dimension (L×W×H) (mm) | 200×(100-400) | 300×(200-400) | 400×(200-600) | ||
Max. stretch depth (mm) | ≤80 | ||||
Vacuum Pump capacity (m3/h) | 100 or 160 or 200 | ||||
Capacity(Times/min) | 4-6 times/min | ||||
Cooling Type | water-cooling | ||||
Upper FILM Width(mm) | 292 | 392 | 492 | ||
Lower FILM Width (mm) | 322 | 422 | 522 | ||
External Dimensions (L×W×H) (mm) | 5000×950×2000 | 6000×1050×2000 | 6000×1150×2000 | ||
Net Weight (Kg) | Approx.1500 | Approx.2000 | Approx.2500 | ||
Product packaging
Model | HVR-420A |
Pcs/CTN (pc) | 1 |
Package Type | W/C |
Gr. Wt. (kg) | 2000 |
Length（CM） | 365 |
Width（CM） | 125 |
Height（CM） | 215 |
Single piece volume(CBM) | 9.809 |
