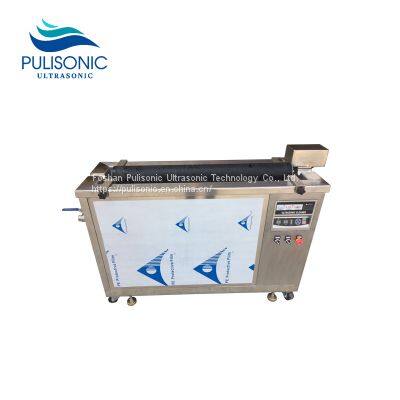

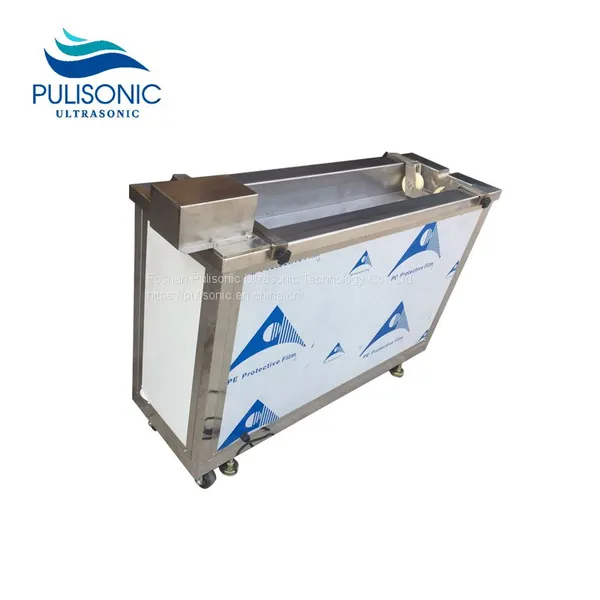

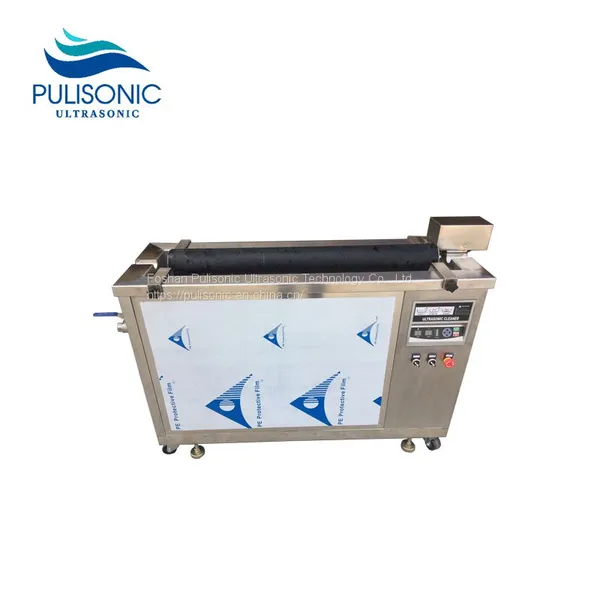

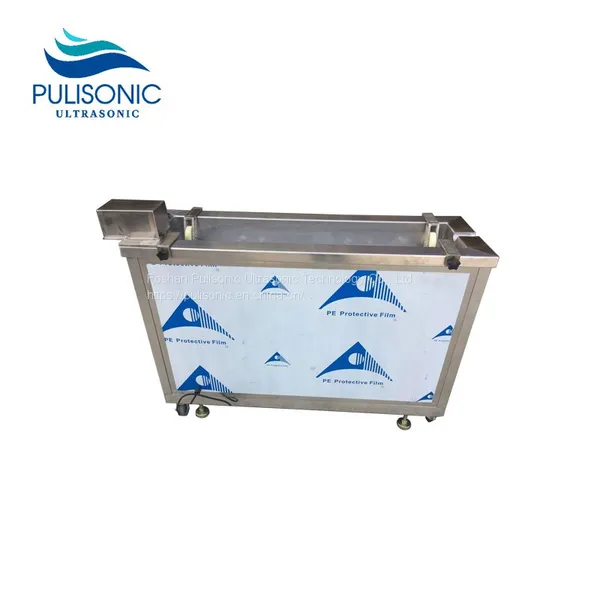

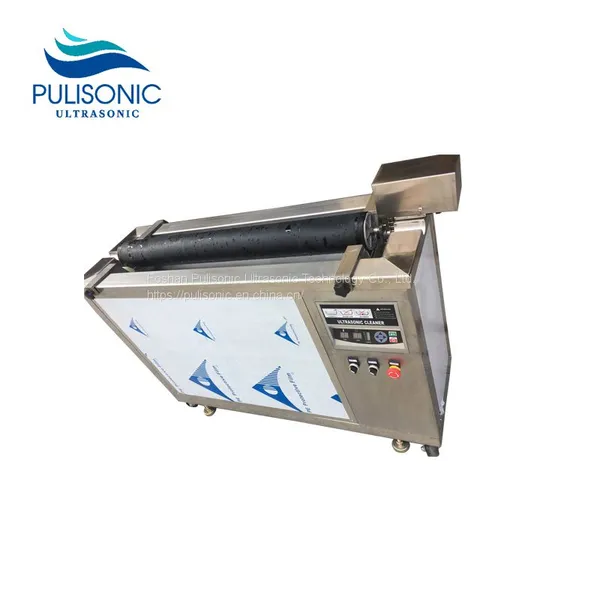

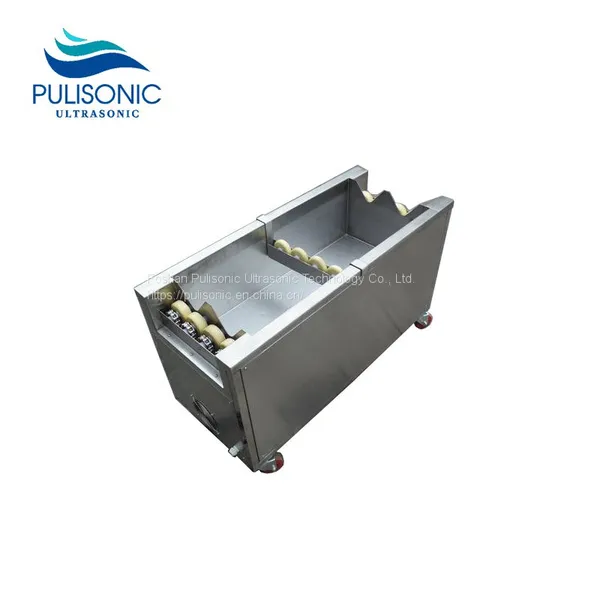

Ultrasonic Ceramic Anilox Roller Cleaning Machine 1000W Industrial Ultrasonic Cleaner
Ultrasonic cleaning machine is mainly composed of three parts: ultrasonic power supply! Ultrasonic transducer and ultrasonic cleaning tank "the function of ultrasonic power supply is to provide ultrasonic frequency electric energy to the transducer". The transducer converts electric energy into mechanical vibration, that is, acoustic energy. "The cleaning tank is used to hold cleaning fluid and cleaned workpiece". The cleaning tank is usually made of stainless steel plate, The transducer is generally installed at the bottom of the cleaning tank or the side wall of the tank or in a closed stainless steel box. "The ultrasonic wound cleaning machine designed by the society adopts a non immersion method, and the horn sprays atomized cleaning fluid for wound cleaning, which can avoid infection! Wide application range! The advantages of simple operation
Application fields: electronic and electrical appliances, mechanical parts, auto parts, before / after electroplating, optical lenses, glass products, bearings, tools, tableware, medical devices, fire-fighting equipment, marine hardware, lighting hardware, precision hardware, clock hardware, gold and silver jewelry, spraying processing, powder metallurgy and other industries. Products are continuously and efficiently degreased, waxed, derusted and cleaned in small quantities.
Product features:
the tank body is made of imported stainless steel with acid and alkali resistance and beautiful appearance.
imported high-quality high-Q transducer and unique ultrasonic generator are adopted, with strong ultrasonic output.
the adhesive imported from West Germany and unique bonding process are adopted to ensure that the transducer works for a long time at 100 water temperature and is durable.
equipped with automatic temperature control heating device, temperature control range: normal temperature - 100 ℃.
integrated structure of ultrasonic generator and cylinder block,
easy to use and maintain.
Model | Internal size | Outsize mm | Frequency (Khz) | Power(W) | Heating(W) | Total power(W) | voltage |
PLS-DQXJ-1006 | 280×210×210 | 320×250×350 | 20,28,33,40,80,130 | 300 | 1000 | 1300 | 220V |
PLS-DQXJ-1012 | 400×310×280 | 520×430×600 | 20,28,33,40,80,130 | 600 | 3000 | 3600 | 220V |
PLS-DQXJ-1018 | 490×360×320 | 610×480×675 | 20,28,33,40,80,130 | 900 | 3000 | 3900 | 220V |
PLS-DQXJ-1024 | 630×430×320 | 740×550×675 | 20,28,33,40,80,130 | 1200 | 4000 | 5200 | 220V |
PLS-DQXJ-1030 | 630×530×320 | 750×650×675 | 20,28,33,40,80,130 | 1500 | 4000 | 5500 | 220V |
PLS-DQXJ-1036 | 680×530×360 | 800×650×700 | 20,28,33,40,80,130 | 1800 | 5000 | 6800 | 220V |
PLS-DQXJ-1040 | 680×570×400 | 830×710×735 | 20,28,33,40,80,130 | 2000 | 5000 | 7000 | 220V |
Welcome OEM size enquire | |||||||
