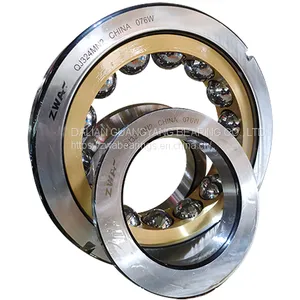

Help CenterTapered Roller Thrust Bearing
Related Products
Tapered roller thrust bearing are composed of shaft washer, housing washer, cage and tapered rollers. The design of tapered roller thrust bearings is made to the extent that cones of shaft washer, housing washer raceways and roller surface are intersected at one point of bearing central line. Therefore, the rolling surface can form a kind of bearing whose limit rotating speed is much higher than cylindrical roller thrust bearings. Tapered roller thrust bearings are accommodated with higher axial loads and peak loads. Meanwhile, they are stiff and with little axial space. In general, tapered roller thrust bearings have three kinds of housing washers, one is housing raceway with a rib, the other is without a rib, and the last is with full complement rollers. In ZWA, we only catered the customers with the first 2 types. Cages for tapered roller thrust bearings in ZWA are steel or brass ones.
Applications of Bearing
Steel
Mining
Cement
Paper Making
Others
Based on different load capacity, ZWA’s tapered roller thrust bearings can be divided into two types, one is single direction tapered roller thrust bearings and the other is double direction tapered roller thrust bearings. Those bearings are mainly big-sized range. For single row tapered roller thrust bearings with big size, both shaft and housing washers have the raceways and one guide rib. For double direction tapered roller thrust bearings with big size, they are usually with a plane shaft washer or tapered raceways on both the shaft and housing washer. Because in general, the mounting of tapered thrust bearings of double direction is with a loose fit on the roll neck or in the chock, therefore, the shaft washer is equipped with one or two locating slots to stop the shaft washer rotating on its seats.
Feature of tapered roller thrust bearings
Bear heavy axial loads
Separable, easier for mounting, dismounting, inspection, and maintenance
Longer service life
Lower friction level
Application of tapered roller thrust bearings
Oil and gas industry, rolling mills, the hook of crane, gearbox, etc
Tapered Roller Thrust Bearing Tapered Roller Thrust Bearing
ZWA Bearing is a professional ball bearing manufacturers, we provide tapered bearing race, etc. Want to know taper roller bearing series or more? Please contact us.
