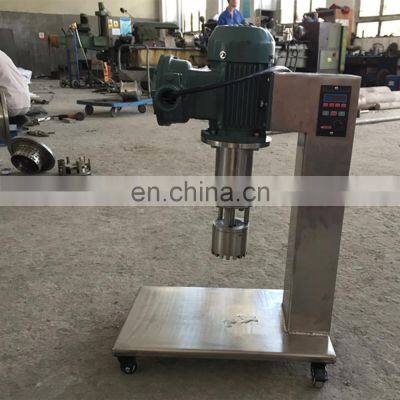

Laboratory Basket Mill/Grinding Machine

Basket Mill (Hydraulic Lift) integrates dispersing and grinding into one machine, suitable for grinding liquid materials with mid and low viscosity.
Materials Viscosity: <=5,000cps?Production Capacity:30-2,500L?Application Industry: Suitable for dispersing, grinding materials in industries such as biology, pharmacy, cosmetic, food, paint, ink, color paste, dyestuff, fertilizer etc. Applicable Materials: Materials shall be with viscosity less than 5000cps, with comparatively high requirements of final grinding result or with many varieties such as emulsion paint, industrial paint, color paste, water-borne ink, fertilizer suspension, enamel etc.

Feature

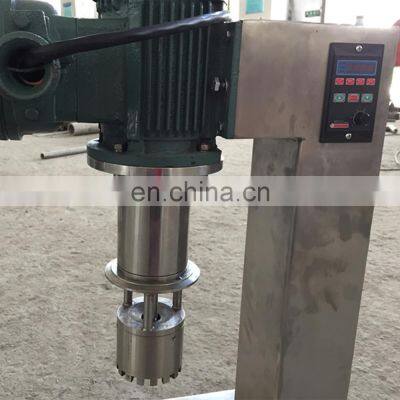

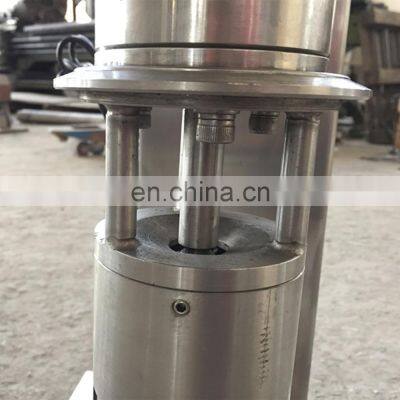

Main shaft and grinding basket
A SS 304 shaft duly machined and balanced is provided. The shaft is installed in a bearing housing provided with taper roller bearings. Lubrication points are provided on the housing. The grinding basket is made from special steel to withstand high wear and tear. The double jacket cooling grinding basket is optional. The excellent grinding basket design makes good milling result, easy to clean and convenient to maintain the machine.
Lifting and lowering
The entire drive head and shaft is lifted and lowered by hydraulic lifting control system. The lift distance is based on the batch capacity.
Variable Speed Control
An AC Frequency inverter installed in a panel controls the RPM from 0-1500.depend on the viscosity. The inverter is provided with settings for monitoring torque, amperage, voltage, power factor etc.

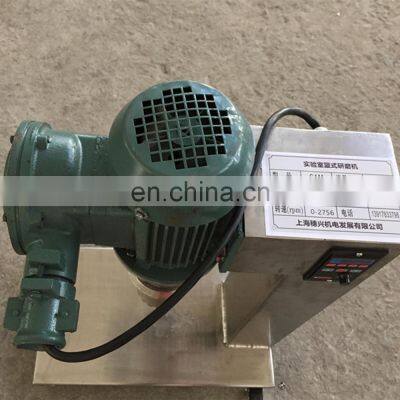

Electric Motor
TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device. The motor details are 380 V / 50 Cycles / 3 Phases, RPM1500
Electric Control Panel (None and Ex proof)
A remote control panel is provided with the following ex proof controls. Main motors on off, ammeters, voltmeter, emergency stop, inverter trip, indicating lamps, speed control switch, RPM indicator. All internal wiring is per international codes of practice. The inverter is installed in a separate panel and is to be installed in a safe Non-Ex proof zone.
Beads and Screen
0.8mm separated basket screen is supplied which makes to be used above 1.6-1.8mm ceramic zirconium beads in order to get good fineness result.
Vessel Locking Device
A vessel locking device consisting of locking arms, cantering device, and manually operated locking screw is provided.
Cover for the tank
The cover is attached with the shafts and lifted up and down together by hydraulic system
Vessel (Optional)
The vessel is fabricated from SS plates and is provided with 3 nos castor wheels, SS bottom discharge ball valve and towing handles. All SS parts are duly polished inside and outside.
