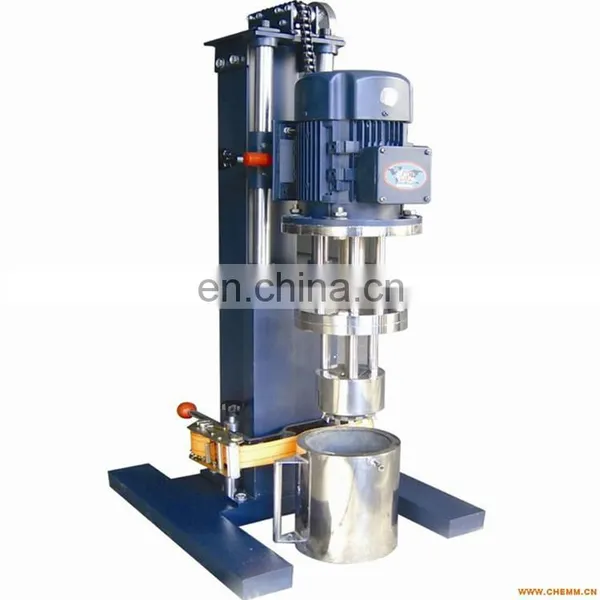

Help CenterManual Lifting Lab Basket Mill For Paint
Related Products
-
China Suixing Lab Basket Mill Grinding Machine Change Color MixerNegotiableMOQ: 1 -
Pigment Grinding Mill/Pigment Three Roller Mill/Pigment Basket MillNegotiableMOQ: 1
-
Chemical Reactor for Making Liquid NPK FertilizerNegotiableMOQ: 1
-
S304/S316 Stainless Steel Jacketed Heating Chemical Reaction Kettle Stirred Tank ReactorNegotiableMOQ: 1
-
Pressure Vessel Stainless Steel Lab Reactor Reactor Chemical Reaction Tank Pressure Vessel With Agitator And Mechanical SealNegotiableMOQ: 1
1. Application:
Basket mill is a kind of multi-functional grinding machine. It possesses both grinding and dispersing function. With properties of energy-saving, high-efficiency and easy-maintenance, Basket mill is widely applied in industries with high fineness requirement such as pigment, printing ink and coating etc
4. Main Features:
1)Integrate dispersing and grinding in one machine. Two working procedures realized by one machine and one vessel.
2)Excellent milling fineness, high productivity, little residue, high quality
3)Easy to clean and change color or other products.
4)High speed main shaft, basket head, belt pulley has passed the static and dynamic equilibrium test.
5)Equipped with double-layer cylinder to avoid hydraulic oil leakage after long time using.
6)Main switches: power sign, POWER ON/OFF, RPM METER, SPEED ACC/DEC, URGENT STOP, HYDRAULIC UP/DOWN.
7)Belt clamp or manual clamp or pneumatic clamp is for optional
8)With CE&ISO9001:2008 qualifications.
5. Technical Parameter
| Model |
Power (KW) |
Production Capacity (L) |
Media Size (mm) |
Effective Volume (L) |
Lifting Stroke (mm) |
| RT-LM-5.5 | 5.5 | 50 | 1.4-2.5 | 2 | 600 |
| RT-LM-7.5 | 7.5 | 100 | 1.4-2.5 | 3.4 | 800 |
| RT-LM-11 | 11 | 150 | 1.4-2.5 | 4.6 | 800 |
| RT-LM-15 | 15 | 250 | 1.4-2.5 | 7.5 | 900 |
| RT-LM-18.5 | 18.5 | 300 | 1.4-2.5 | 15 | 1100 |
| RT-LM-22 | 22 | 400 | 1.4-2.5 | 21.4 |
1100 |
| RT-LM-30 | 30 | 500 | 1.4-2.5 | 30.2 | 1100 |
| RT-LM-37 | 37 | 600 | 1.4-2.5 | 33.9 | 1200 |
| RT-LM-45 | 45 | 800 | 1.4-2.5 | 45.1 | 1200 |
| RT-LM-55 | 55 | 1000 | 1.4-2.5 | 61.6 | 1200 |
