Product Name Agitated tank reactor
Description Designed according to 3A standard,widely used for transfer viscous media in food-processing,beverage,chemical,cosemtics and pharmaceutical industries
Construction Horizontal and vertical; Open lid, flat,disc,conical,shell cover;
Material SS304/SS316L/1.4301/1.4404
Seal Ring Fluorine Rubber,EPDM,PTFE,Silicone(Standard, approval)
Mechnical Seal SIC,Hard alloy,graphite
Volume 50-50000L
Pressure 0-20 bar
Working temperature 300 C / 572 F
Jacket Coil,dimple jacket,hollow jacket
Cooling water,coolant, compressor
Heating electric(water,oil), steam
Agitator stirrer,high shear homogenizer,scrap mixer
Agitator Speed Constand speed and variable speed; Range: 0-4000rpm
Motor power 0.37kw-100kw
Voltage 110v/220v/240v/380v/415v/460v (50/60hz)
Motor SIEMENS,ABB,Domestic
Automitac PLC/HMI control,display,store,transfer
Surface treatment Inner and externel polished and brushed,good weldings and joints;
Accessories Customizable support
Availably connection Clamp, Thread, Butt weld, Flange
Availably standard DIN, SMS, 3A, RJT, ISO/IDF
Application scope Dairy, food, beverage, chemical,pharmacy, cosmetic, etc
Packaging Details Plywood case or customerized. Or as per the request of customers
Delivery details Usually within 25 days after receiving T/T down payment,special customized need negotiation.
Advantages
1. quickly heated
2. thermostability, anti-corrosion
3. health
4. adjustable height
5. easy to use
6. no environmental pollution
7. customized is accepted
8. stainless steel, is rust protection and easy to clean
Structure

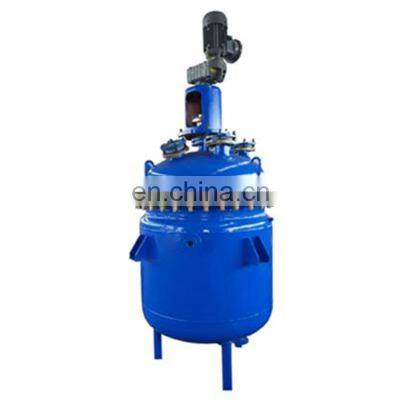

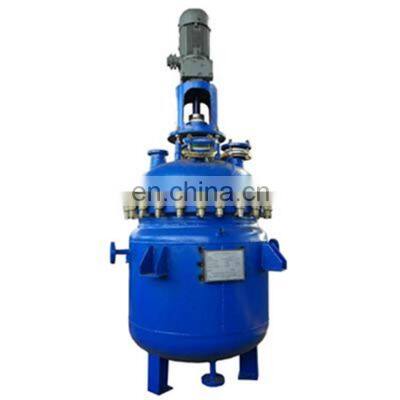

This kind of stainless steel chemical mixing reactor consists of the reactor body, tank cover, jacket, agitator, transmission, shaft seal device and supporting legs.
Working Principle
Through the electric heating pipes to heat conducting oil to the required temperature, and then the oil will transfer the heat to the materials in the reactor to start the reaction.
The temperature controller controls the thermal oil temperature and materials in the reactor, to achieve complete automation.
Detailed pictures
|
Steam and Thermal Oil Circulating Heating Kettle Return to Product Information |
| Specification L | Inner Cylinder Size | mm Jack Size |
Electromotor Power | Reducer Model | Stirring Speed |
| 30 | 400 | 500 | 0.6-1.1 | M2 | 60-80 |
| 50 | 500 | 600 | 0.6-1.1 | M3 | 60-80 |
| 100 | 550 | 650 | 1.1-1.5 | M4 | 60-80 |
| 150 | 600 | 700 | 2.2 | M6 | 60-80 |
| 200 | 650 | 750 | 2.2 | M6 | 60-80 |
| 300 | 800 | 900 | 2.2 | M6 | 60-80 |
| 500 | 900 | 1000 | 2.2 | M6 | 60-80 |
| 800 | 1100 | 1200 | 4 | M8 | 60-80 |
| 1000 | 1200 | 1300 | 4 | M8 | 60-80 |
| 1500 | 1300 | 1400 | 4 | M8 | 60-80 |
| 2000 | 1400 | 1500 | 4 | M8 | 60-80 |
| 2500 | 1400 | 1500 | 7.5 | BLB7.5-4-13 | 90 |
| 3000 | 1400 | 1500 | 7.5 | BLB7.5-4-13 | 90 |
| 3500 | 1400 | 1500 | 7.5 | BLB7.5-4-13 | 90 |
| 4000 | 1500 | 1600 | 7.5 | BLB7.5-4-23 | 63 |
| 5000 | 1600 | 1700 | 7.5 | BLB7.5-4-23 | 63 |
| 8000 | 2000 | 2100 | 15 | BLB15-5-13 | 100 |
