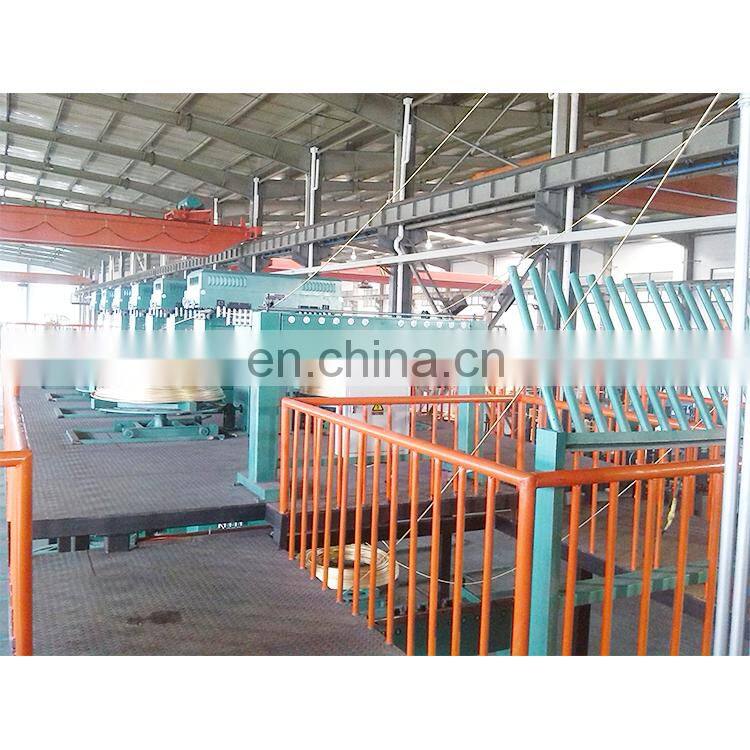

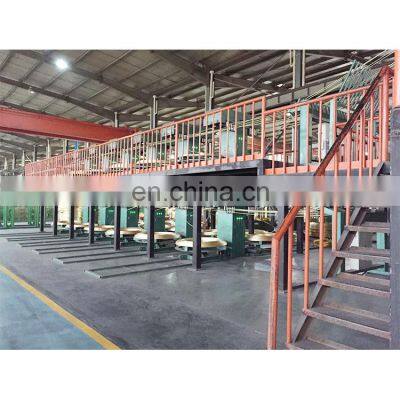

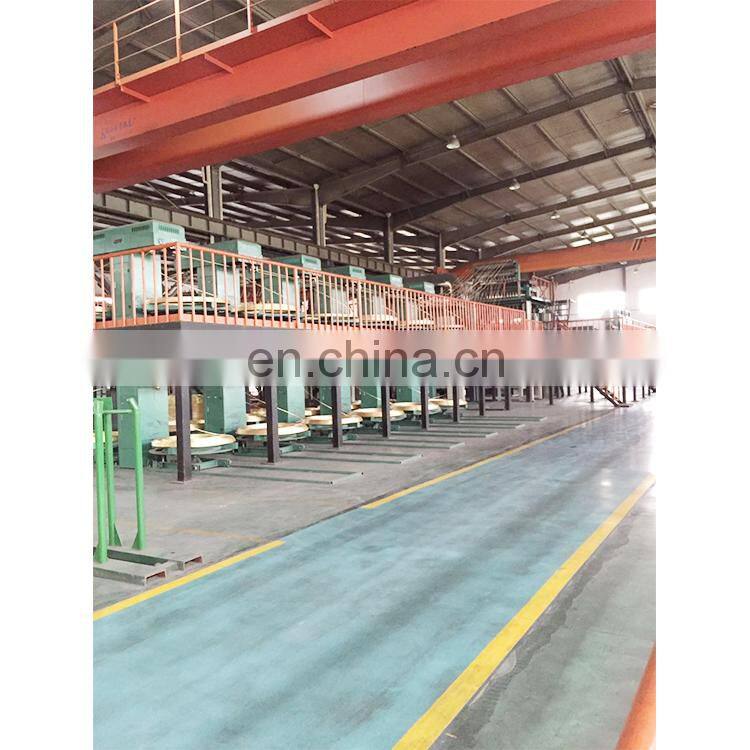

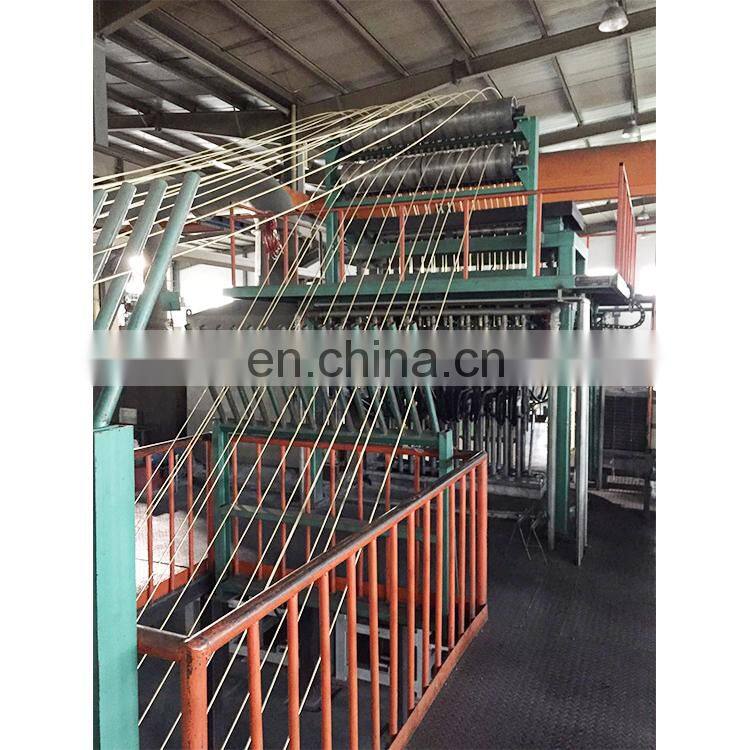

brass continue casting machine

No.

Item

Data

1

Model No.

SYJ(02-24)(08-30)-I(3-5)

2

Annual capacity

1000-12000tons

3

Total power

180-630kw  AC three phase 380V

4

Furnace structure

3 body  (2 melting,1 holding )

5

Take up layout

Single layer or double layer

6

Casting Strands

2-24

7

Casting rod diameter:

8mm-30mm

8-1

Upward casting speed

0~2500mm/min

8-2

Upward casting speed

0~1000mm/min

9

Annual working time

7920h

10

Liquid tracking precision

±4mm

11

Take-up coil standard

800mm × 1600mm× 800mm

12

Copper melting velocity

160-1520kg/h

13

Copper melting power consumption

<350kwh/ton

14

Consumption for charcoal

5kg/ton

15

Take-up form

automatic adjust

16

Take-up plate driven approach

inverter motor, PLC control

17

Material feeding method

whole piece of electrolytic copper cathode fed by electric hoist

18

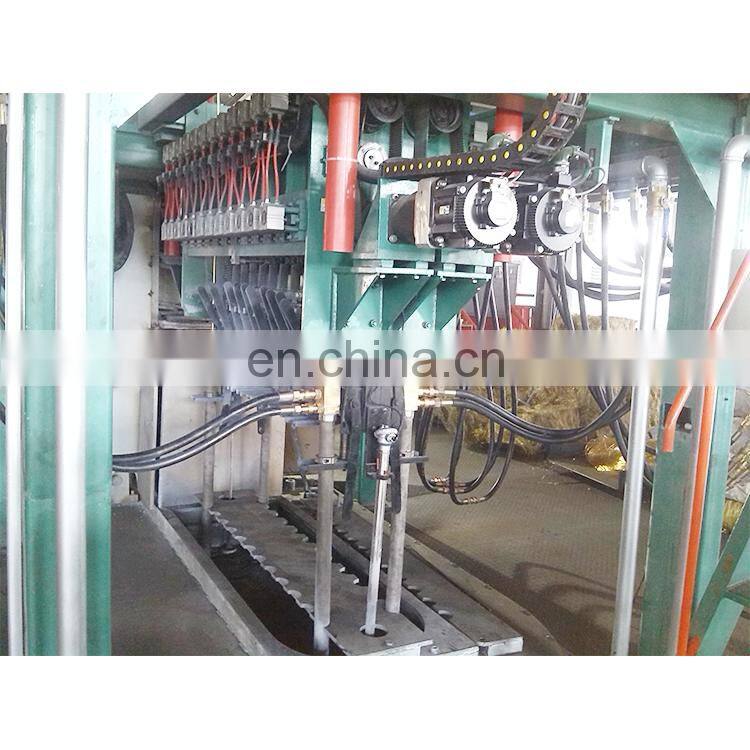

Upward driven approach

driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet, 2 unit

19

Rod clamping method

air clamping or by manual

20

Life of furnace

No less than 12months under normal opertaiton
